2MP HD 1920x1080 1080P AR0234 USB3.0 Camera Module 120FPS Global Shutter MJPG, YUY2, H.264 FF 100° Type-C For documents
- 1.2MP HD 1920x1080
- 2.USB3.0 Camera Module
- 3.120FPS Global Shutter
- 4.1/2.6-Inch AR0234 CMOS
- 5.MJPG, YUY2, H.264
- 5.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Name:1080P USB Camera Module
Product Code:WN-L2306K360M-0234 U3

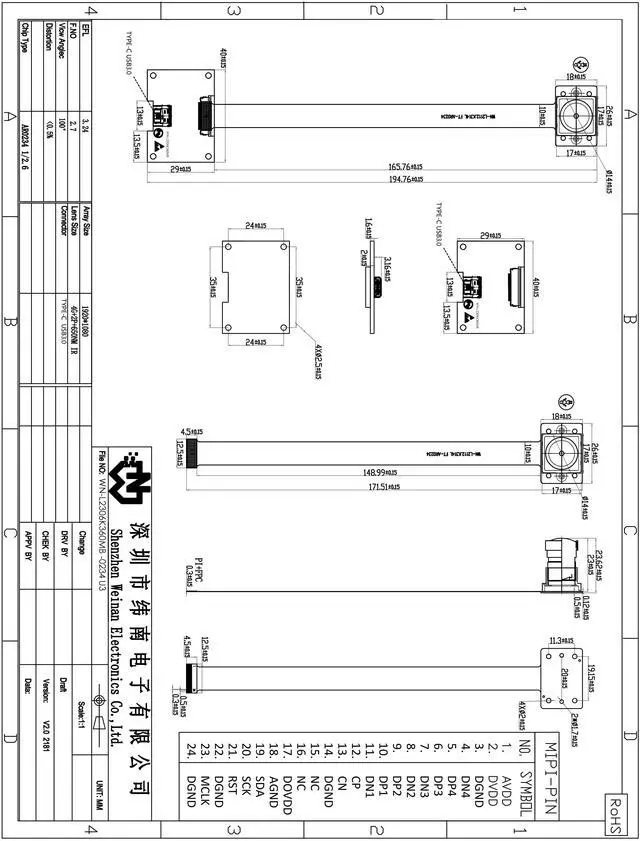

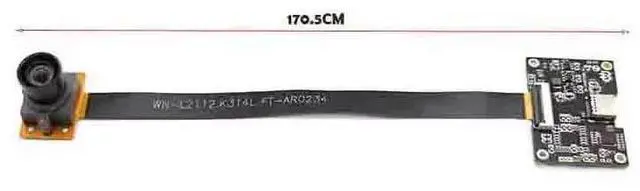

Module Size:PCB: 35*29mm FPC: 170.5mm
Image Sensor:1/2.6-inch CMOS Sensor
Max. Resolution:1920H*1080V
Pixel Size:3.0*3.0m
Output Format:MJPG, YUY2, H.264
Field of View:100°
Focus Mode:Fixed Focus
Shutter Mode:Global Shutter
Output & Power Supply:High Speed USB3.0
Interface:USB3.0 Type-C
MJPEG
1920*1080@120FPS
1280*720@120FPS
640*480@120FPS
YUY2
1920*1080@60FPS
1280*720@60FPS
640*480@60FPS
H.264
1920*1080@30FPS
1280*720@30FPS
640*480@30FPS
