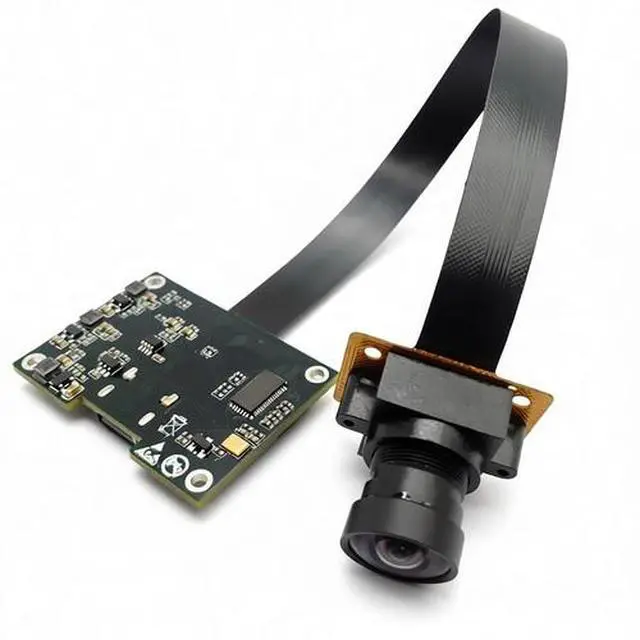

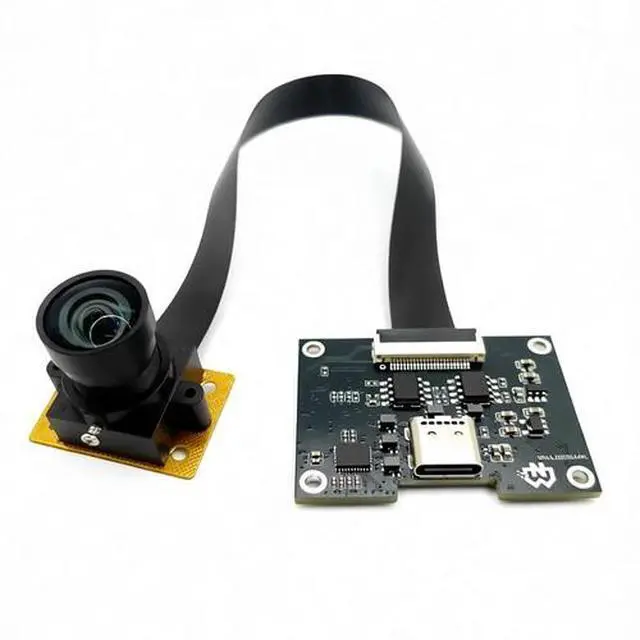

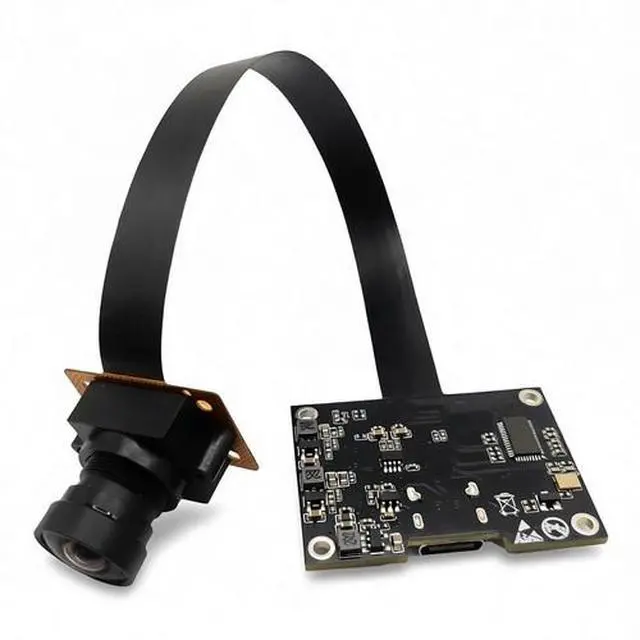

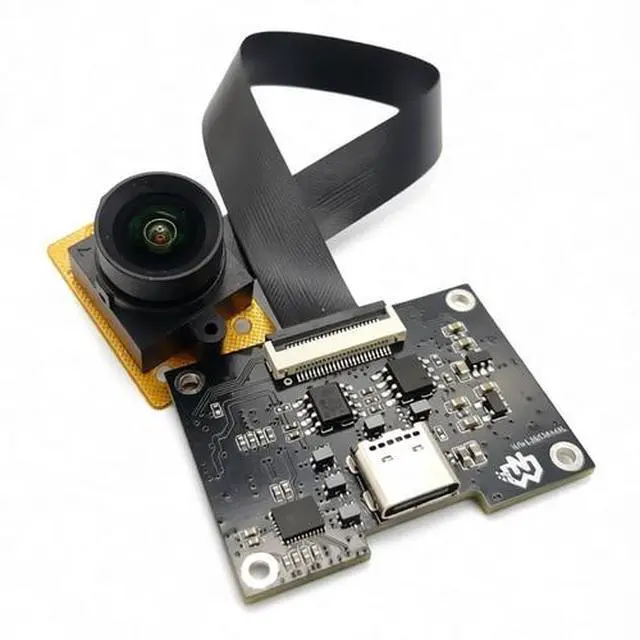

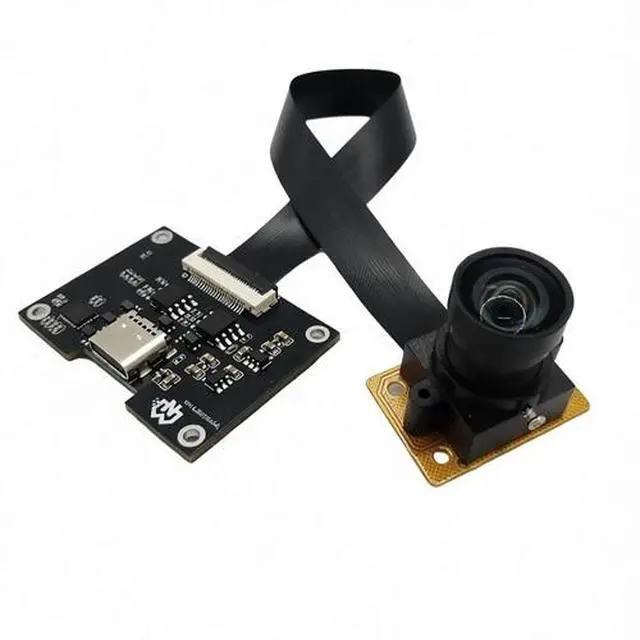

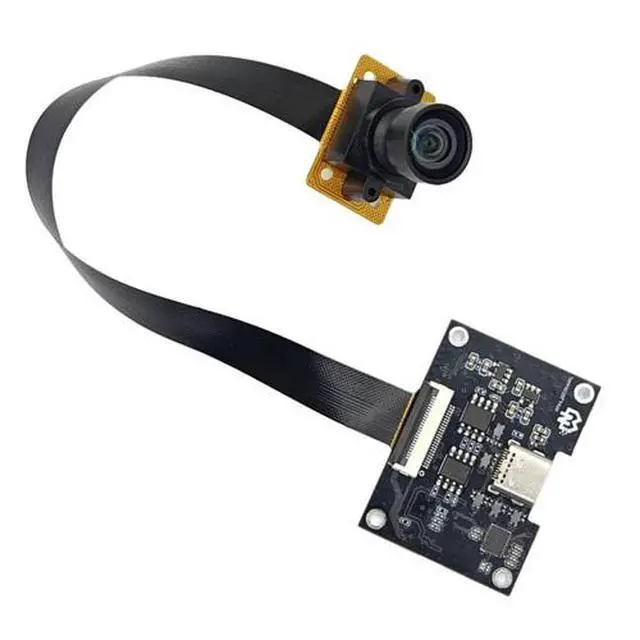

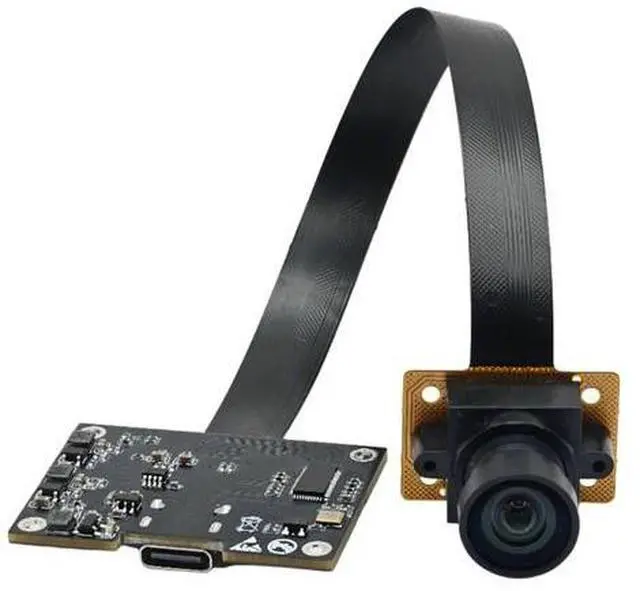

    2MP Global Shutter 1/2.6-Inch AR0234 CMOS USB Camera Module FF USB3.0 Type-C 1080P 120fps Webcam for Product Vision

    Be the first to review this product...
    • 1200P 90fps HD Resolution: 2.3MP USB Camera Module adopt high quality Aptina AR0144 Sensor for sharp clear image. Frame Rates: MJPEG 90fps@1920x1200/ 90fps@1920x1080
    • Color Global Shutter Camera: Based on 2MP AR0234 Color Global Shutter sensor. Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras.
    • No Distortion Lens:2MP Wide angle usb webcam giving you an unparalleled perspective for a wide variety of conditions. 38 * 38 mm mini embedded usb camera module design.
    • Wide Applications: 2mp global shutter usb camera module has excellent low-light sensitivity allow it to perform better in any application that needs gaze and eye-tracking capabilities, 3D image, depth sensing, etc.
    • Plug and Play Webcam: UVC 1200P global shutter USB with support for compact cameras OTG, plug and play, NO additional driver required. You just need to connect the USB camera to the USB port of your device, and then you can use camera software such as Facetime / Amcap / MotionEyes.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    1.Main Parameters



    Product Name

    2MP USB3.0 Camera Module

    Module Size

    40*29*9.9MM

    Image Sensor

    1/2.6-inch AR0234 CMOS Sensor

    Max. Resolution

    1920H*1080V

    Pixel Size

    3.0*3.0µm

    Output Format

    MJPEG, YUY2,

    Field of View

    100°

    Focus Mode

    Fixed Focus

    Output & Power Supply

    High Speed USB3.0

    Interface

    USB3.0 Type-C

    Controllable Parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure

    Supported OS

    Windows10, Android, Linux,

    Connection Cable

    Default1.5 Meter USB Cable



    2.Supported Resolutions and Frame Rates



    Formats

    Resolutions

    Frame Rates

    MJPEG

    1920*1080

    120FPS

    1280*720

    120FPS

    640 x 480

    120FPS

    YUY2

    1920*1080

    60FPS

    1280*720

    120FPS

    640x 480

    120FPS



    3.Working Conditions



    Working Voltage

    DC 5V

    Working Current

    210mA

    Working Temperature

    -15°C ~ 60°C

    Storage Temperature

    -20°C ~ 85°C

    Humidity

    80 ~85%
    https://counter.pushauction.com/7d4818af-b9d4-43ef-9c72-def6910cb6b8/93bef04a-ae26-48d1-8fb2-afa3c2660536.jpg

    Package Included:
    *1 pcs 2MP USB Camera Module.
    *1 pcs 1m USB cable.
    *1 pcs using manual.


    Features:
    1.Sensor: With high quality Aptina AR0234 (1/2.6) Sensor;
    2.Resolution: Full HD 1920*1200 High Resolution 2.3MP Global Shutter USB Camera;
    3.High Speed: Mjpeg 90FPS@1920*1200, Mjpeg 90FPS@1920*1080,Mjpeg 90FPS@1600*1200, Mjpeg 90FPS@1280*960*1200, etc.;
    4.Megapixel Lens: High Quality lenses with M12 mount,Wide Angle USB Camera with No Distortion Lens
    5.High Quality Image: Super Image reality, real color reproduction, without interpolation;
    6.UVC Support: Free Driver , Plug and Play, easily used on different systems;
    7.Support Systems: Windows, Linux, Android, Mac OS, Ubuntu, Raspberry Pi...;
    8.OTG Support: can be used on Android smartphone, recommended app "USB Camera".
    9.Wide Application: Well used for High Speed - sports photography, AI object recognition, Industrial inspection, Video applications, Industrial automation, robotics, or scientific imaging. Some can also be used for Augmented and virtual reality, gesture and eye tracking, depth and motion detection.... and so on.


    Specifications
    Sensor: 1/2.6inches AR0234 sensor
    Shutter: Global Shutter
    Max Resolution: 1920 (H) *1200 (V)
    Compression Format: MJPEG / YUV2 (YUYV)
    Focus: Fixed
    Interface: USB2.0 High Speed
    Lens Parameters: No Distortion M12 Lens
    Central Definition: 600LW/PH (Center)
    Sensitivity: 1.4V/lux-sec@550nm
    Min Illumination: 0.3lux
    S/N Ratio: 37dB
    Operating Voltage: DC 5V
    Dimension: 38mm x 38mm
    Adjustable Parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,White balance, Backlight Compensation, Exposure


    Product information

    Condition New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.
    MPN Does Not Apply
    Manufacturer Warranty 1 Year
    Features Fixed Focus
    Brand Unbranded
    Connectivity USB 3.0
    Country of Origin China
    Maximum Photo Resolution 1920 x 1080
    Frame Rate 120FPS
    Colour Black
