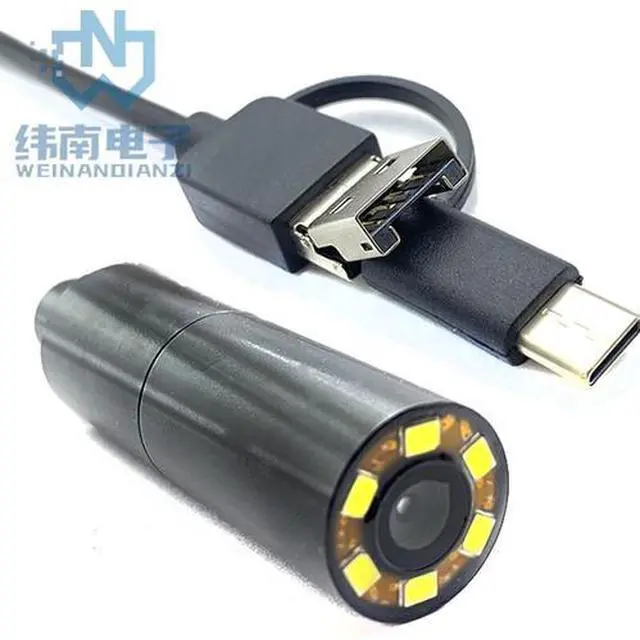

1.Main Parameters
| Product Name |
5MP USB2.0 Camera Module |
| Product Code |
WN-N5693NK5MP--WK |
| Module Size |
Diameter: 12.6mm, PCB: 29*11mm |
| Image Sensor |
1/4.0-inch OV5693 CMOS Sensor |
| Max. Resolution |
2952 H x 1944 V |
| Pixel Size |
1.4*1.4µm |
| Output Format |
MJPEG, YUY2 |
| Field of View |
73.8° |
| Lens |
EFL: 2.0mm, F/No. 2.4, 4P+IR 650nm |
| Dynamic Range |
Up to 69dB |
| Focus Mode |
Autofocus |
| Shutter Mode |
Electronic Rolling Shutter |
| Output & Power Supply |
High Speed USB2.0 |

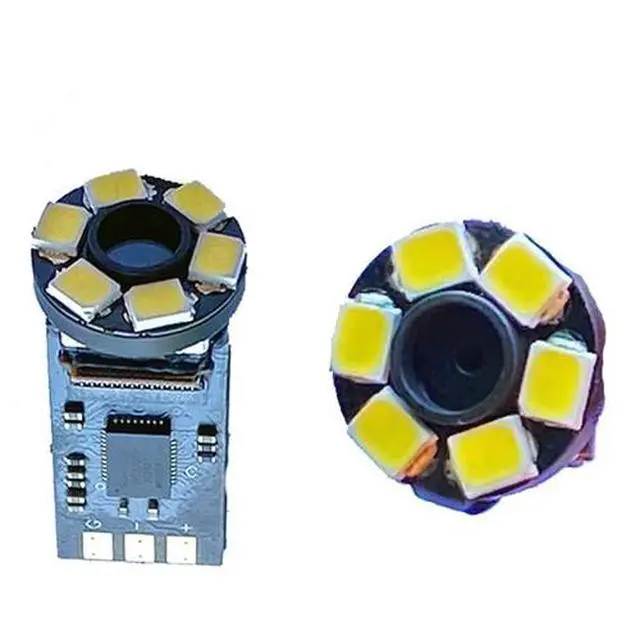

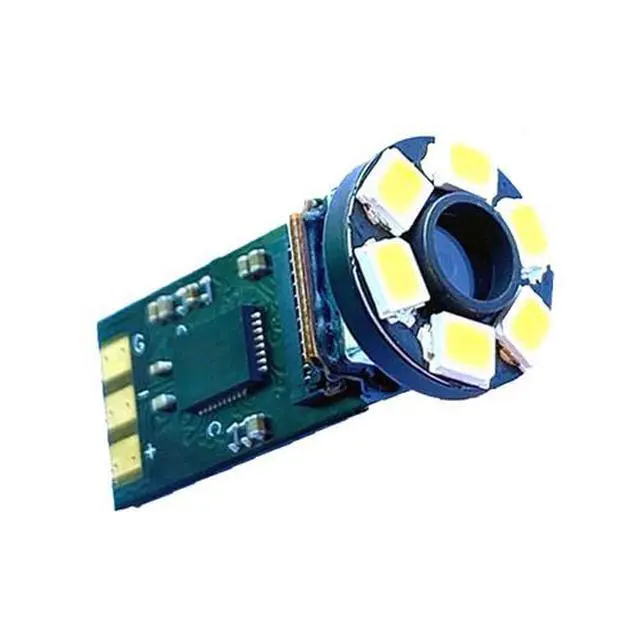

| LED |
6PCS 0201 LEDs |
| Interface |
6PIN Welding Spots |
| Controllable Parameters |
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure |
| Supported OS |
UVC-compliant, Plug and Play for Windows, Android, Linux, Mac OS, etc. |

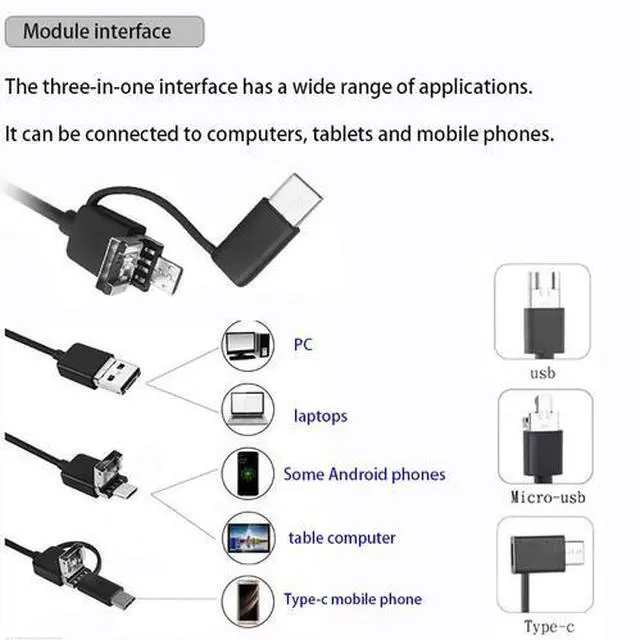

| Connection Cable |
Default1.0 Meter USB Cable |
2.Supported Resolutions and Frame Rates
| Formats |
Resolutions |
Frame Rates |
| MJPEG |
2592x1944 |
30FPS |
| 2048x1536 |
30FPS |
|
| 1920x1080 |
30FPS |
|
| 1280x720 |
30FPS |
|
| 800x600 |
30FPS |
|
| 640x480 |
30FPS |
|
| YUY2 |
2592x1944 |
3FPS |
| 2048x1536 |
3FPS |
|
| 1920x1080 |
5FPS |
|
| 1280x720 |
10FPS |
|
| 640x480 |
30FPS |

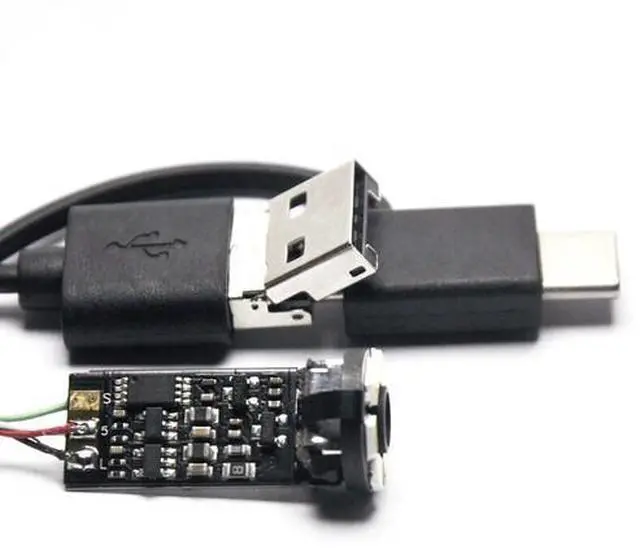

3.PIN Definitions
| Pin No. |
Signal Names |
Descriptions |
| 1 |
GND |
Ground |
| 2 |
DM |
USB2.0 Data- |
| 3 |
DP |
USB2.0 Data+ |
| 4 |
S |
Shot Key |
| 5 |
VCC |
DV 5V |
| 6 |
LED |
LED+ |
4.Working Conditions
| Working Voltage |
DC 5V |
| Working Current |
140mA |
| Working Temperature |
-20°C ~ 60°C |
| Storage Temperature |
-20°C ~ 85°C |
| Humidity |
80 ~85% |
