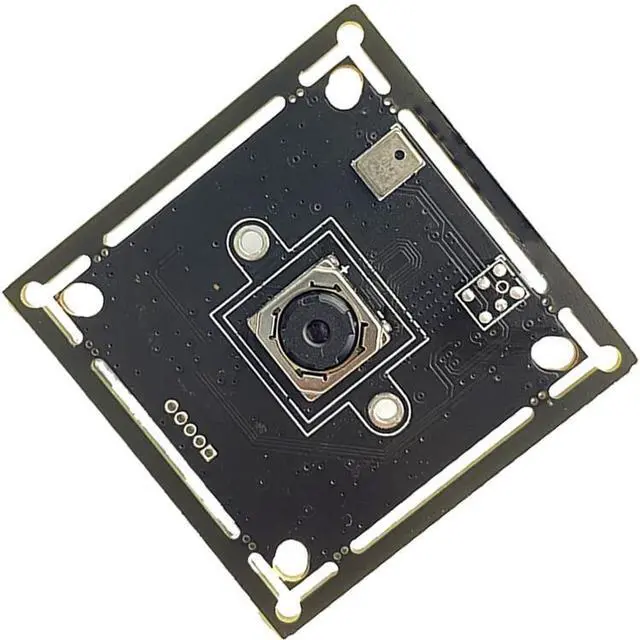

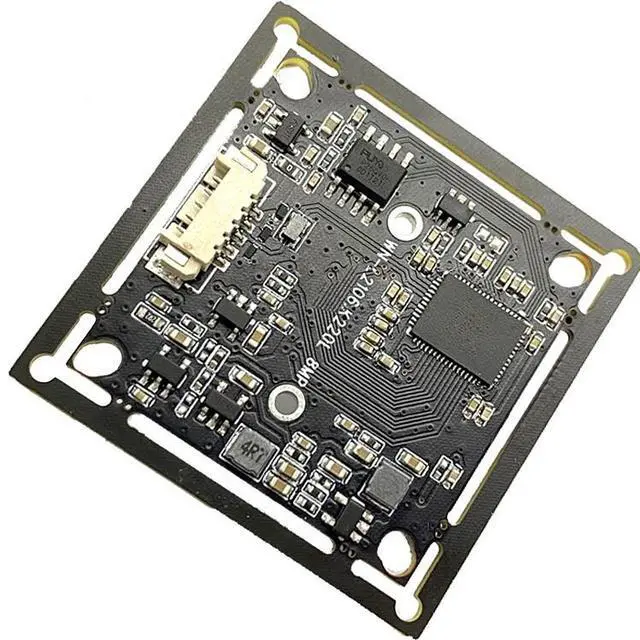

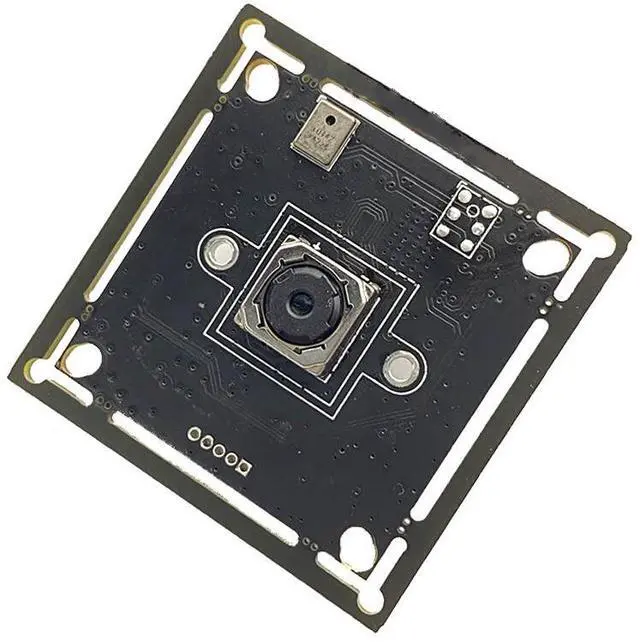

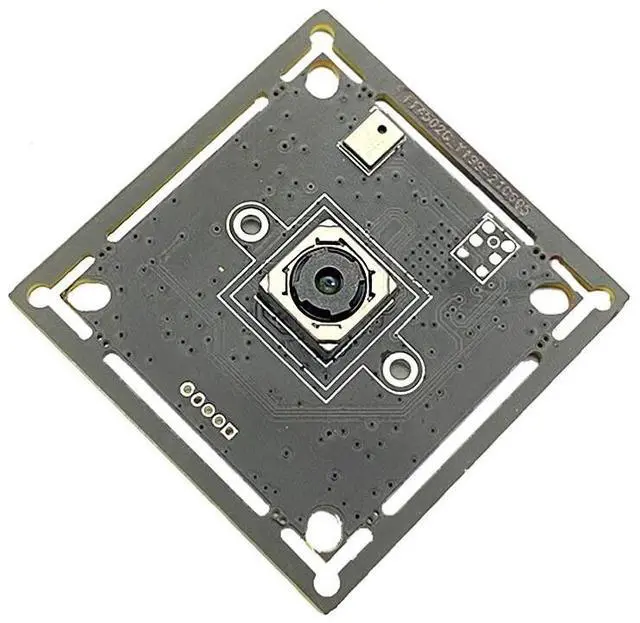

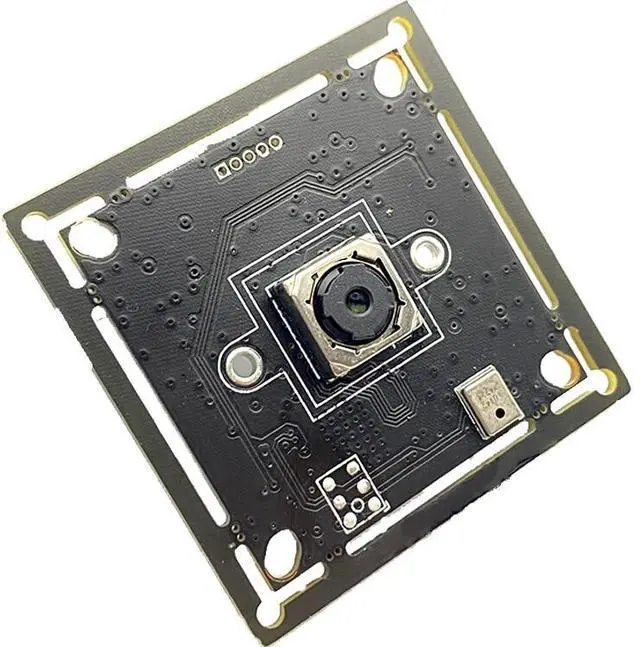

    8MP HD 1/3.2" IMX179 CMOS USB Camera Module AF 77° MJPEG, YUY2 UVC USB2.0 Webcam Board for Windows

    Be the first to review this product...
    • 8MP HD 1/3.2" IMX179 CMOS
    • USB Camera Module
    • AF 77° USB2.0 Webcam Board for Windows
    • MJPEG, YUY2
    • 3264H x 2448 V
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    8MP USB2.0 Camera Module

    this 8MP USB camera module adopts the 1/3.2-inch IMX179 CMOS image sensor with maximum resolution of 3264×2448 at 15fps frame rate. Mini size, 77° FOV, high speed USB2.0 interface, default 1.0 meter USB cable, UVC-compliant, plug and play.



    Main Parameters



    Product Name

    8MP USB2.0 Camera Module

    Product Code

    WN-L2106.K220L

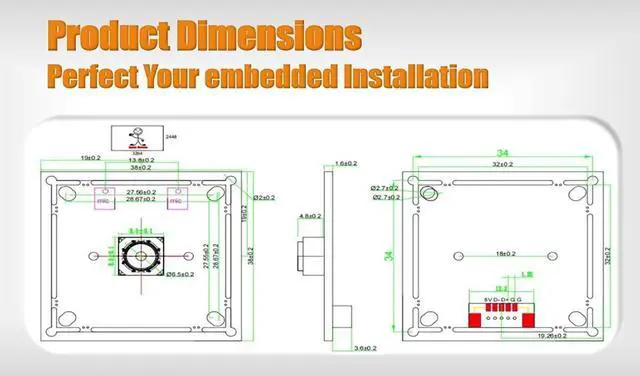

    Module Size

    38*38mm or 32*32mm

    Image Sensor

    1/3.2-inch IMX179 CMOS Sensor

    Max. Resolution

    3264H x 2448 V

    Pixel Size

    1.4*1.4µm

    Output Format

    MJPEG, YUY2

    Field of View

    77°

    Lens

    EFL: 3.54mm, F.NO: 2.0, 5P+IR 650nm

    Audio Input

    Digital Microphone

    Focus Mode

    Autofocus

    Shutter Mode

    Electronic Rolling Shutter

    Dynamic Range

    Up to 72.5dB

    Output & Power Supply

    High Speed USB2.0

    Interface

    5PIN 1.25mm Connector

    Controllable Parameters

    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure

    Supported OS

    UVC-compliant, Plug and Play for Windows, Android, Linux, Mac OS, etc.

    Connection Cable

    Default1.0 Meter USB Cable



    Supported Resolutions and Frame Rates


    Formats

    Resolutions

    Frame Rates

    MJPEG

    3264x2448 (8MP)

    30FPS

    2592x1944 (5MP)

    30FPS

    2560x1440 (2K)

    30FPS

    2048x1536 (3MP)

    30FPS

    1920x1080 (1080P)

    30FPS

    1280x720 (720P)

    30FPS

    640x480 (VGA)

    30FPS

    YUY2

    3264x2448 (8MP)

    1FPS

    2592x1944 (5MP)

    2FPS

    2560x1440 (2K)

    2FPS

    2048x1536 (3MP)

    2FPS

    1920x1080 (1080P)

    5FPS

    1280x720 (720P)

    10FPS

    640X480 (VGA)

    30FPS


    Working Conditions

    https://counter.pushauction.com/7d4818af-b9d4-43ef-9c72-def6910cb6b8/94c2b996-8e65-41fa-91b2-2e20dd541a70.jpg


    ModelELP-USB8MP04AF-V72
    SensorIMX179
    Sensor Size1/3.2 inch
    Pixel Size1.4µm x 1.4µm
    Image Area6.18mm x 5.85mm
    Max. Resolution3264(H) X 2448(V) 8 Megapixel
    Compression formatMJPEG / YUY2 (YUYV)
    Resolution & Frame Rate
    3264X2448 MJPEG@15fps YUY2@1fps 2592X1944 MJPEG@20fps YUY2@2fps
    2048X1536 MJPEG@15fps YUY2@3fps 1600X1200 MJPEG@25fps YUY2@5fps
    1920X1080 MJPEG@25fps YUY2@5fps 1280X960 MJPEG@25fps YUY2@5fps
    1280X720 MJPEG@25fps YUY2@10fps 1024X768 MJPEG@25fps YUY2@10fps
    800X600 MJPEG@25fps YUY2@25fps 640X480 MJPEG@25fps YUY2@25fps
    320X240 MJPEG@25fps YUY2@25fps
    S/N Ratio34dB
    Dynamic Range72.5dB
    Sensitivity0.65V/Lux-sec@550nm
    Min Illumination0.5 Lux
    Shutter TypeElectronic Rolling Shutter / Frame Exposure
    Connecting Port TypeUSB2.0 High Speed
    Free Drive ProtocolUSB Video Class (UVC)
    OTG ProtocolUSB2.0 OTG
    AGC/AEC/AWBAuto
    Adjustable Parameters
    Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure
    Lens ParameterAF LENS
    Focus: 3.5mm , DFOV: 72 Degree
    Power SupplyUSB BUS POWER 4P-2.0mm socket
    Operating VoltageDC5V
    Working Current150mA~240mA
    Working Temperature-10~70
    Storage Temperature-20~85
    Board Size /Weight38X38mm (Compatible 32X33mm) / about 30g
    CableStandard 1m / Optional 2m,3m,5m
    Operating System Request
    WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc.
    Linux with UVC (above Linux-2.6.26),MAC-OS X 10.4.8 or later,Android 4.0 or above with UVC


    Product information

    Condition New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.
    MPN Does Not Apply
    Features Autofocus
    Brand Unbranded
    Model WN-L2106.K220L
    Connectivity USB 2.0
    Country of Origin China
    Maximum Photo Resolution 3264H*2448V
    Frame Rate 30 fps
    Colour Black
    EAN Does not apply
