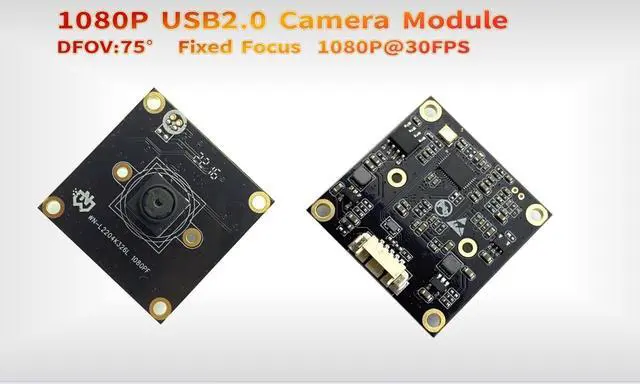

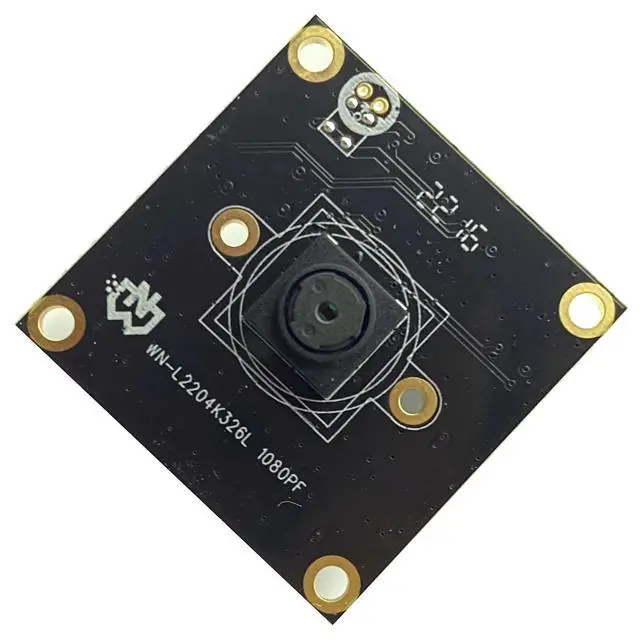

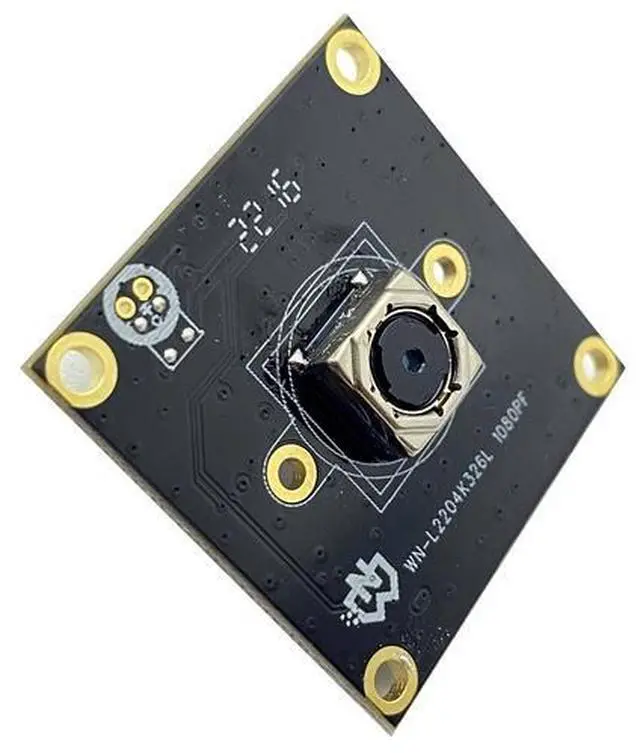

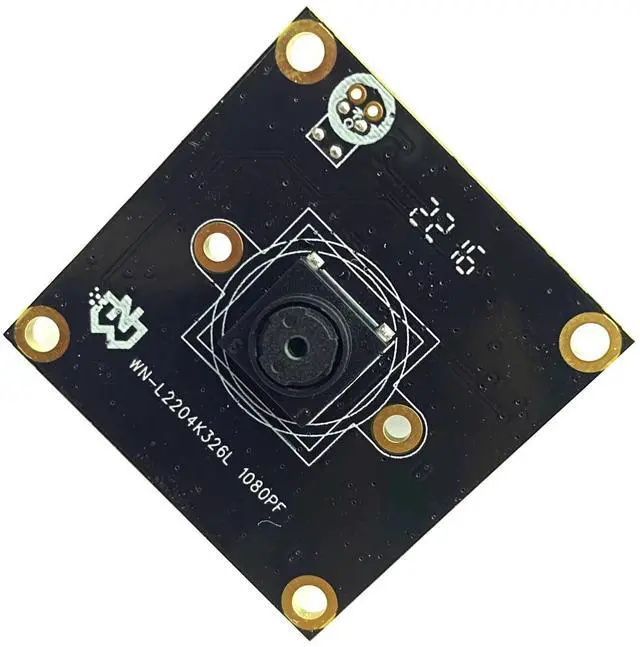

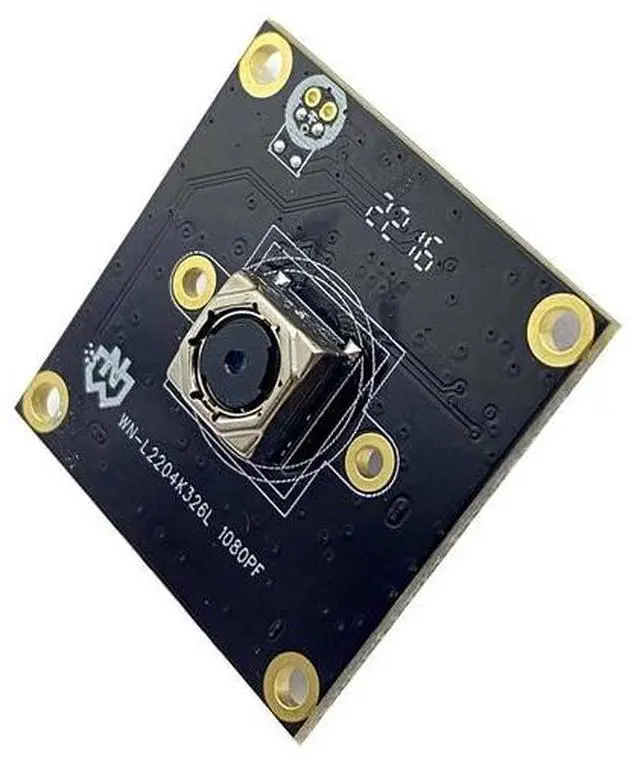

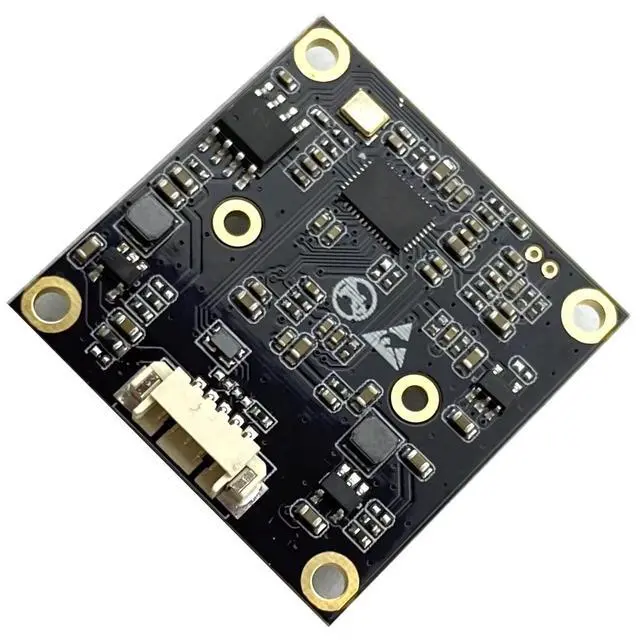

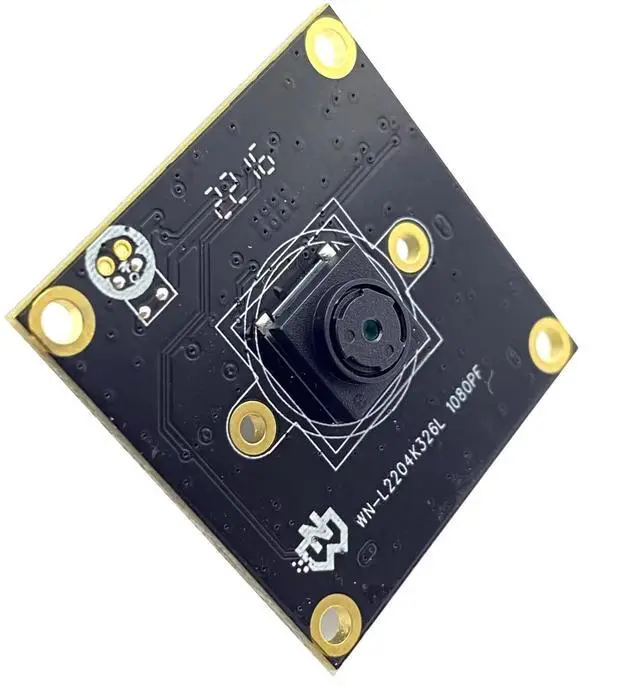

2MP HD OV5693 USB Camera Module Fixec Focus 75 Degree With Digital microphone UVC Free Driver Mini Webcam For Face Recognition

Be the first to review this product...
  • MJPEG, YUY2
  • Fixec Focus 75 Degree
  • UVC Free Driver Mini Webcam For Face Recognition
  • With Digital microphone
  • 1920H*1080V 30fps
+
+
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
Product Parameters:

·Module Size: 32*32mm
·Pixel Size: 1.4*1.4µm
·Max. Resolutions: 1920H*1080V
·Frame Rate: 30fps
·Output Format: MJPEG, YUY2
·Field of View: 75°
·Focus Mode: Autofocus/Fixed Focus
·Shutter Mode: Electronic Rolling Shutter
·Compatibility: UVC-compliant, Plug and Play
·Connection Cable: Default 1.0 Meter USB Cable
·Supported OS:UVC-compliant, Plug and Play for Windows, Android, Linux, Mac OS, etc.
·Controllable Parameters:Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure

Working Condition:
Operating Voltage: USB DC +5V Supply
Operating Current :170mA
Operating Temperature: -20? ~ 70?
Storage Temperature: -20? ~ 85?
Humidity :80 ~85%

Resolution and Frame Rate
Format Resolutions Frame Rate
MJPEG 1920*1080 30fps
1280*720 30fps
640*480 30fps
YUY2 1920*1080 5fps
1280*720 8fps
640*480 30fps
https://counter.pushauction.com/7d4818af-b9d4-43ef-9c72-def6910cb6b8/6ad5f201-45c3-44e1-9fe5-4b06e4dee4a8.jpg

12mp autofocus usb camera module 4k 30fps webcam board for computer UVC usb2.0 1080p 60fps pc camera 300ms pdaf fast auto focus camera imx362 machine vision industrial camera for laptop

Camera specifications:
Sensor: 1/2.55 inch IMX362.
Maximum resolution: 4000 (H) x 3000 (V)
Compression format: MJPEG / YUV2 (YUYV).
Autofocus mode: phase detection autofocus.

Power:
4000 x 3000 MJPEG@15fps, 3840 x 2160 MJPEG@30fps
2592 x 1944 MJPEG@30fps YUY2@3fps,2560x1440MJPEG@30fps YUY2@3fps
2048 x 1536 MJPEG@30fps YUY2@3fps,1920x1080MJPEG@60fps YUY2@5fps
1600 x 1200 MJPEG@45fps YUY2@5fps,1280x1024MJPEG@60fps YUY2@10fps
1280 x 720 MJPEG@60fps YUY2@10fps,800x600MJPEG@45fps YUY2@25fps
640 x 480 MJPEG@45fps YUY2@25fps, 320 x 240 MJPEG@45fps YUY2@25fps

lense
M12 lens, DFOV 76 degrees, HFOV 65 degrees.

Power supply.
Power supply and connection: USB bus power 4P 2.0 mm socket.
Voltage: DC 5V
Current: 60mA~180mA.
Operating temperature: -20°C to 65°C.

Adjustable parameters: brightness, contrast, hue, saturation, sharpness, gamma, white balance, exposure

USB 2.0 Type A port, plug and play without additional drivers or special software.
Compatible with WinXP/Vista/Win7/Win8/Win9/Win10/Win11, MacOS, Linux, Android
Plug and play for PC computer, laptop, Amcap, OpenCV, VLC, V4L2, Jetson Nano, Ubuntu, fswebcam, Facetime, Camerafi, USB camera, OBS, Xbox One, Zoom etc.


Product information

Condition New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.
MPN Does Not Apply
Brand Unbranded
Connectivity USB 2.0
Features Autofocus
Frame Rate 30 fps
Maximum Photo Resolution 1920 x 1080
Color Black
Country of Origin China
