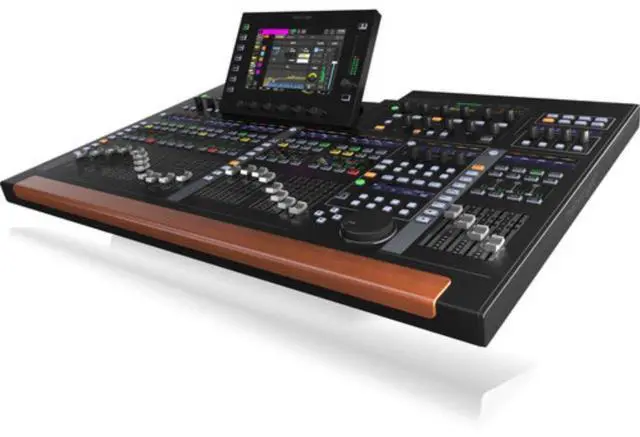

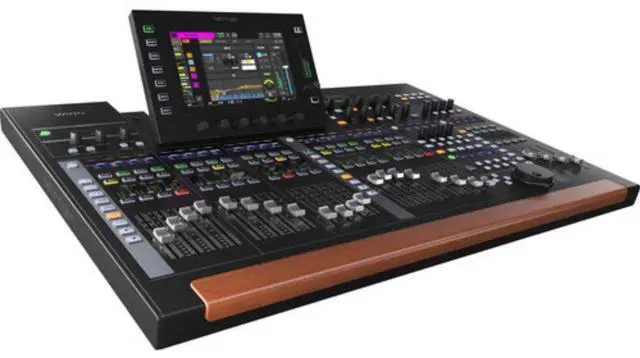

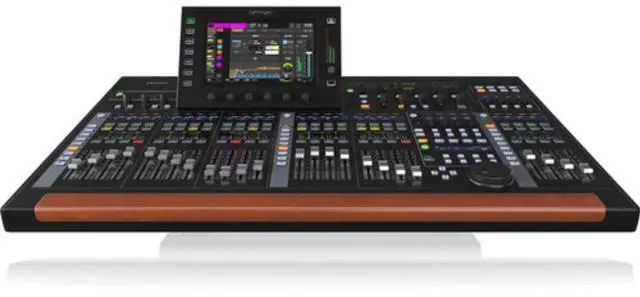

Behringer WING 48-Channel / 28-Bus Full-Stereo Digital Mixing Console (Pro Black)

Elevate your production to a new level with the black Behringer WING, a 40-channel, 28-bus full-stereo digital mixing console with a 24-fader motorized control surface, a large, 10" capacitive touchscreen interface, and touch-sensitive rotary controls for a new ease of operation. The mixer is highly customizable, thanks to the three separate fader sections and a Custom Control section that can be tailored easily and intuitively to meet your personal requirements.



Wing offers 8 Midas PRO mic preamps and features eight XLR outputs as well as eight 1/4" auxiliary inputs and outputs. Thankfully, the number of I/O can be expanded with three AES50 SuperMAC ports, the StageCONNECT port, and optional expansion cards for audio interfaces, digital network bridges, MADI, and ADAT/WC. There are five variable plug-in processing slots for all 40 stereo input channels. Each slot can host plug-ins based on iconic vintage analog equalizers and compressors, plus insert FX slot and 4-band parametric EQ for all 8 stereo aux channels.



WING Overview

• 8 award-winning Midas PRO mic preamps and 8 Midas PRO outputs on board

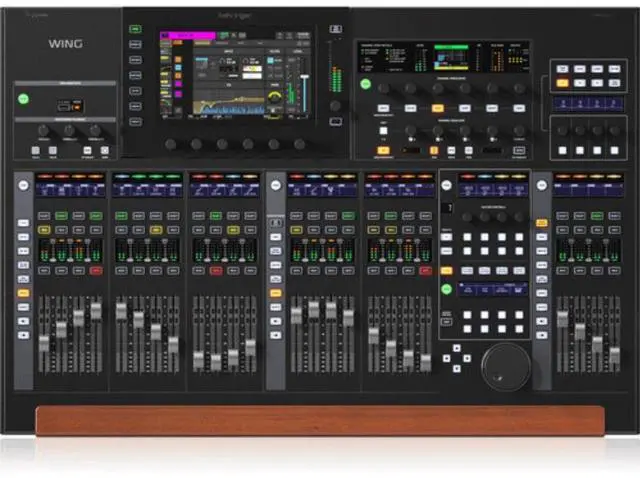

• 24 motorized 100mm faders in 3 separate, fully configurable sections


• "Plug and play" remote I/O connectivity for up to 144 input and output signals over 3 AES50 ports featuring Klark Teknik's SuperMAC technology for ultralow jitter and latency


• Large main display with capacitive touch screen and adjustable display swivel


• Unique touch-sensitive channel editing section with 11 rotary controls and dedicated color TFT for staying on top of all channel properties


• Optional module for 64 x 64 channels of audio over Ethernet, supporting WAVES SoundGrid Technology or Dante/AES67 Technology


• 48 x 48 channel USB 2.0 audio interface on board with DAW remote control emulating HUI and Mackie Control


• Dual-SD card live recorder/player with up to 64 tracks and markers for identifying song positions


• Additional 4-channel control section with rotary controls, buttons, and parameter display for permanent access to mains, matrices, or "money-channels"


• Premium FX rack with 8 true-stereo processors and world-class TC algorithms, Lexicon, Quantec, and EMT emulations


• Standard FX rack with 8 true-stereo processors for a wide array of modulation, EQ, dynamics etc.also allows blending outboard effects to the mix


• 5 variable plug-in processing slots for all 40 stereo input channels, featuring the most iconic vintage analog equalizers and compressors, plus insert FX slot and 4-band parametric EQ for all 8 stereo aux channels


• Custom Controls offering 16 latching or momentary buttons and 4 rotary controls, easily being configured for preferred functions


• 4 main, 8 matrix, and 16 aux stereo buses, featuring dual inserts, 8-band parametric EQ's, stereo imager and full dynamics processing


• 2 Ethernet ports with integrated switch for networked remote control


• Built-in expansion port for optional audio interface cards or digital networking bridges, MADI, and ADAT/WC

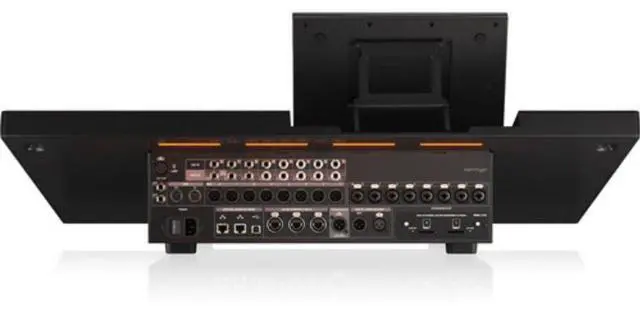

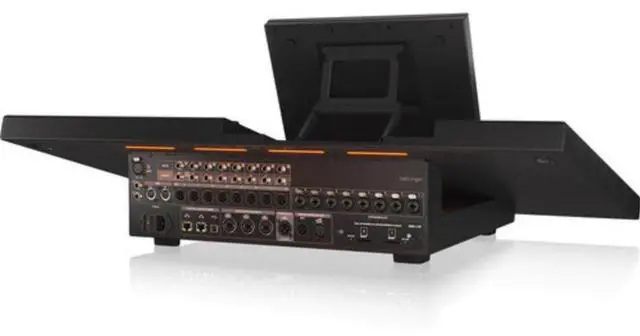

• StageCONNECT 32-channel low-latency interface for personal monitoring or analog I/O boxes, AES/EBU stereo digital in- and outputs on balanced XLR, 8 x 8 balanced TRS auxiliary line in- and outputs, 2 TRS phones connectors, MIDI I/O and 4 GPIO ports

Box Contains

Behringer WING 48-Channel / 28-Bus Full-Stereo Digital Mixing Console (Pro Black)


• 1 x Power Cord
