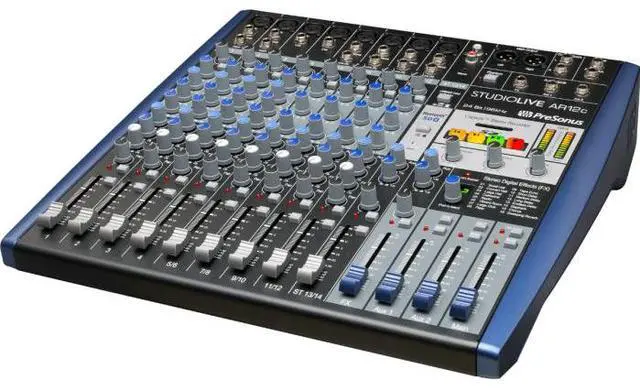

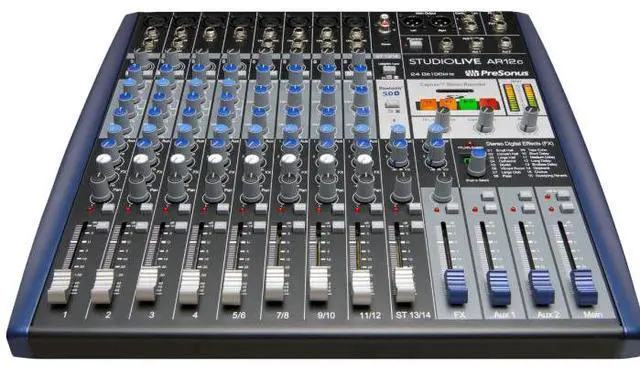

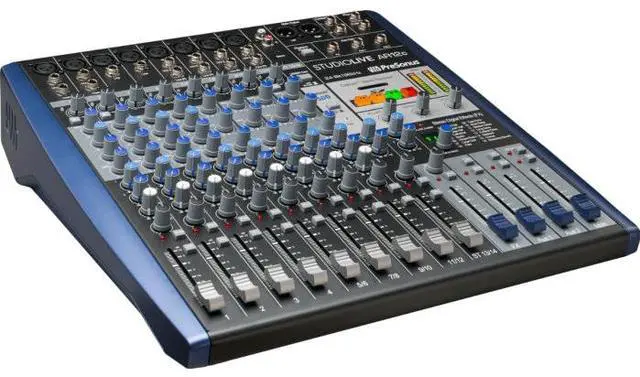

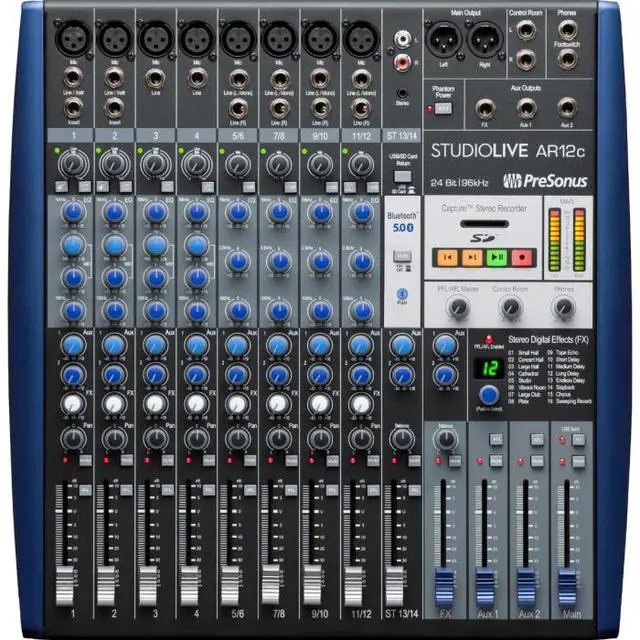

PreSonus StudioLive AR12c 12-Channel USB-C Compatible Hybrid Audio Interface

Analog Mixer with USB Audio Interface

PreSonus StudioLive AR12c is a hybrid analog mixer designed for musicians, content creators, and live sound engineers who need both powerful mixing and multitrack recording capabilities. Featuring eight high-gain XMAX microphone preamps and a built-in 14x4 USB-C audio interface, it delivers pristine analog sound while capturing every channel directly to your computer.

PreSonus StudioLive AR12c Competitive Differences

• Hybrid analog mixer with integrated 14x4 USB recording interface
• Built-in stereo SD recorder and Bluetooth® wireless connectivity

PreSonus StudioLive AR12c Description

The PreSonus StudioLive AR12c combines classic analog mixing with modern digital recording tools, making it ideal for both live performance and studio production. Its eight high-headroom XMAX microphone preamps provide clean gain for vocals, instruments, and microphones, while balanced line inputs support keyboards, drum machines, and other line-level sources.

Integrated USB recording allows the AR12c to function as a 14x4, 24-bit / 96 kHz audio interface, enabling users to record every channel individually along with the main mix. This makes it a powerful solution for recording rehearsals, live shows, podcasts, or full band sessions.

The mixer includes a versatile Stereo Super Channel with Bluetooth wireless streaming, RCA inputs, and a 1/8-inch stereo input. This allows playback from mobile devices, computers, or other audio sources without occupying standard input channels.

An onboard digital effects processor provides 16 presets including reverbs, delays, and modulation effects. With dedicated send and return controls, users can add polished monitor mixes and capture effects in recordings or adjust them later during post-production.

For standalone recording, the AR12c features a built-in stereo SD recorder capable of recording the main mix directly to SD or SDHC cards. The mixer also integrates seamlessly with Capture live-recording software and includes a perpetual license for Fender Studio Pro DAW, providing a complete recording and production solution.

StudioLive AR12c Features

• 14-channel analog mixer
• 14x4 USB 2.0 audio interface (USB-C connection)
• 8 XMAX microphone preamps
• 12 balanced line-level inputs
• 2 instrument inputs for guitar or bass
• Stereo Super Channel with Bluetooth®, RCA, and 1/8" input
• Onboard digital effects processor with 16 presets
• Dedicated effects send and return
• 2x2 SD card recorder for stereo mix recording
• 3-band analog EQ on channels
• Includes Capture live-recording software
• Includes Fender Studio Pro DAW perpetual license

StudioLive AR12c Specifications

• Channels: 14
• Mic Preamps: 8 XMAX
• USB Audio Interface: 14x4
• Bit Depth: 24-bit
• Sample Rates: 44.1, 48, 88.2, 96 kHz
• Instrument Inputs: 2 (1/4" TS Hi-Z)
• Line Inputs: Balanced 1/4" TRS
• Phantom Power: +48V
• Maximum XLR Output Level: +24 dBu
• Headphone Output Power: 150 mW / channel (60Ω)
• USB Port: USB 2.0 (USB-C connection)
• SD Card Support: SD (2GB) / SDHC (up to 32GB)
• Dimensions: 15 x 15.56 x 3.
