Miniature 2-Channel 3.5mm Microphone & Audio Mixer with TRS & TRRS Output Cables for Cameras, Smartphones, Computers & More (AX1)

AX1 Miniature 2-Channel 3.5mm Microphone & Audio Mixer with TRS & TRRS Output Cables for Cameras, Smartphones, Computers & More

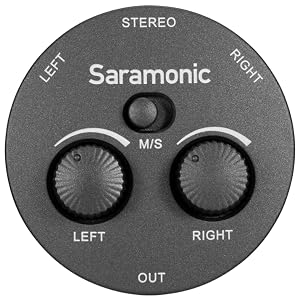

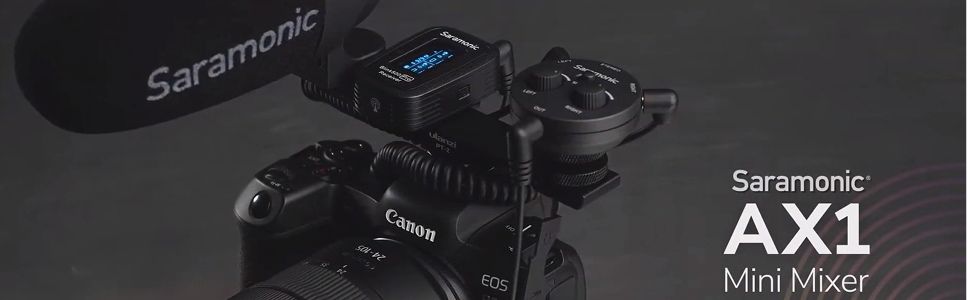

The Saramonic AX1 is an incredibly compact and lightweight battery-free 2-channel microphone and audio mixer. It features two 3.5mm TRS inputs with dedicated input level attenuators and a single 3.5mm TRS output with selectable Mono/Stereo output switch. It also includes both 3.5mm TRS and TRRS output cables. Making it an ideal mixer solution for DSLR, Mirrorless and Video Cameras, Smartphones, Handheld Recorders, Laptops and much more. Weighing less than half an ounce and less than 2” wide, it can easily be added to any ultra-compact set up, without adding excessive weight and bulk.

***Only compatible with Battery-Powered or Wireless Microphones***

****Will Not Work for Plug-In Powered Microphones*****

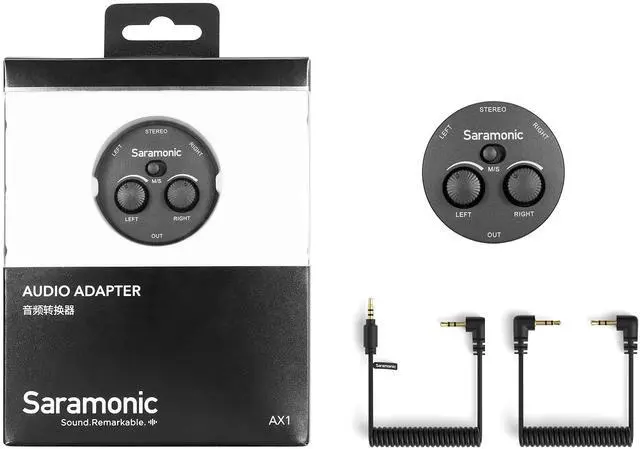

Items Included:

1 x AX1 Audio Mixer 1 x Coiled 3.5mm TRS to 3.5mm TRS Cable (WM4C-C35) 1 x Coiled 3.5mm TRS to 3.5mm TRRS Cable (SR-PMC2)

Incredibly Compact, Lightweight and Versatile Micro-Mixer

Battery-Free Passive 2-Channel Micro-Mixer for Powered Microphones, Wireless Microphone Receivers and other Audio Sources

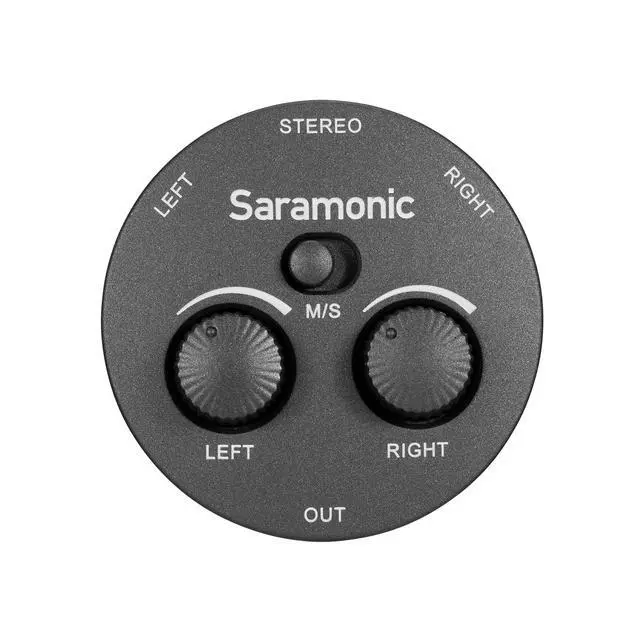

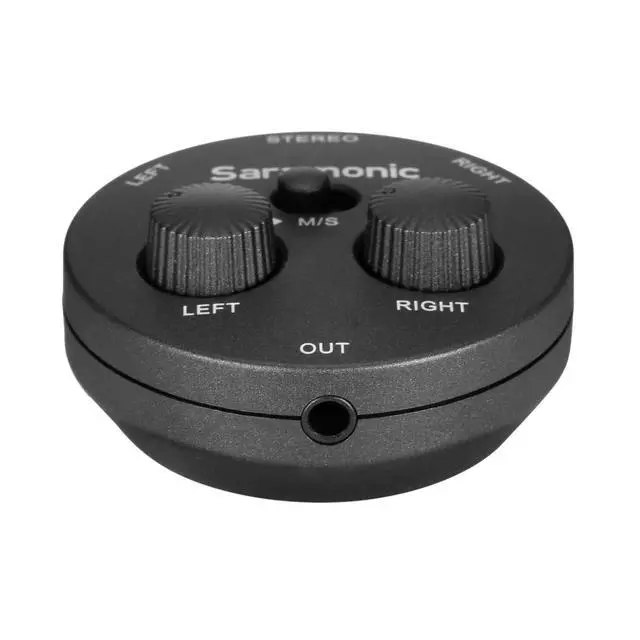

Two 3.5mm TRS Inputs to a single 3.5mm TRS Output with selectable Mono/Stereo output and two input level attenuators to control the audio mix

Includes both TRS and TRRS Output Cables for use with Cameras, Smartphones, Tablets, Computers, Recorders and much more

Incredibly Compact and Lightweight, it easily fits into even the tightest set-ups and smallest rigs and has a standard 1/4"-20 mount

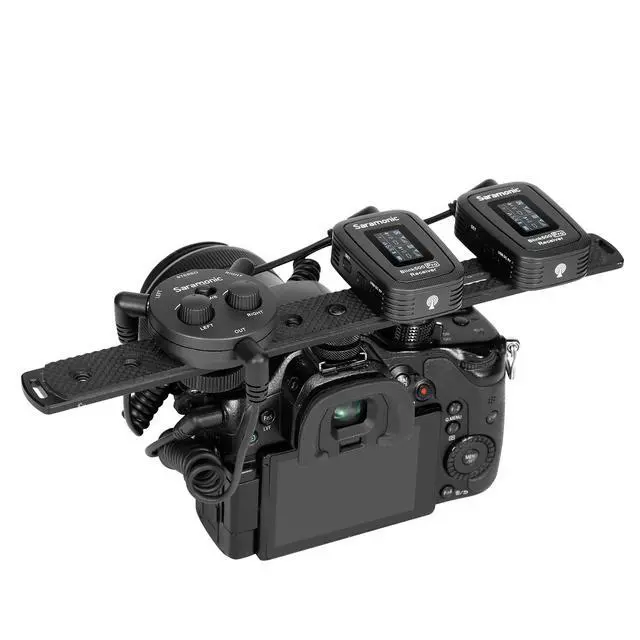

Ideal Mixer for Micro Wireless Systems and Battery-Powered shotgun mics like the Blink 500, Blink 500 Pro, CamMic+, Vmic5 series and more

Specifications:

Inputs: 2 x 3.5mm TRS

Output: 1 x 3.5mm (TRS Mono/Stereo)

Frequency Response: 20Hz to 20kHz

Input Level: =35dB

Gain: Unity (0~-8dB)

Dimensions: 1.89 x 0.98” (48 x 25mm)

Weight: 0.67oz (19g)

Sound Quality and Control

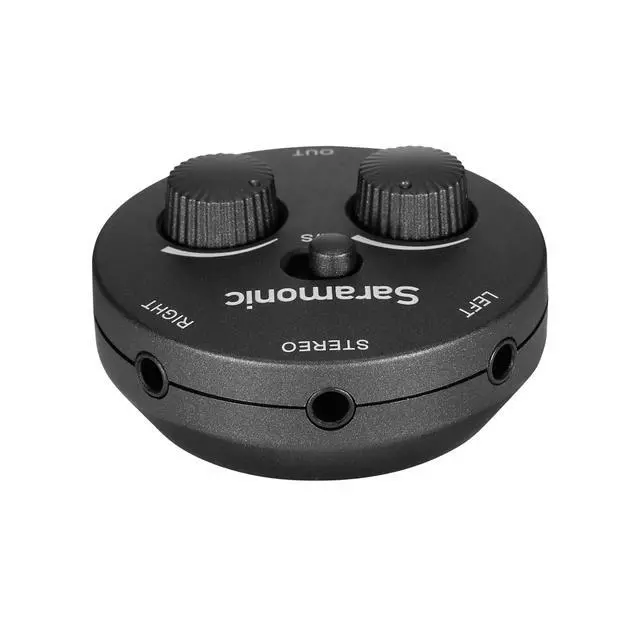

The ultra-compact and featherlight AX1 provides a clean and noise-free mix of two mics or audio sources into cameras, mobile devices, recorders, computers and more. It features two 3.5mm inputs with dedicated attenuators to control the input level of each source, absolutely vital when you have one mic much louder than the other. It also features a 3.5mm stereo input for stereo microphones and other stereo sources. All three 3.5mm inputs can all be used simultaneously if needed.

***Only compatible with Battery-Powered or Wireless Microphones***

****Will Not Work for Plug-In Powered Microphones*****

Mixing Flexibility

The AX1 features a selectable Mono/Stereo output for use with cameras and recorders with stereo inputs. Mono, allowing you mix both microphones into an identical mix for both L/R channels, and Stereo, that splits the two signals into the L/R channels, ideal if you’d prefer to mix each track separately in post-production. The AX1 delivers far superior sound quality and unmatched control and flexibility options when compared to conventional splitters or adapter cables.

Incredibly Compact and Versatile

The AX1 is less than 2 x 1” in size and weighs less than half an ounce, making it the smallest 2-channel mixer of its kind on the market and it’s also the most versatile out of the box. Because it’s such a small and versatile mixer, it’s the perfect problem solver for so many different devices. Easy to take everywhere without weighing you down or adding extra bulk to your camera or audio bag.

A Micro-Mixer for All Devices

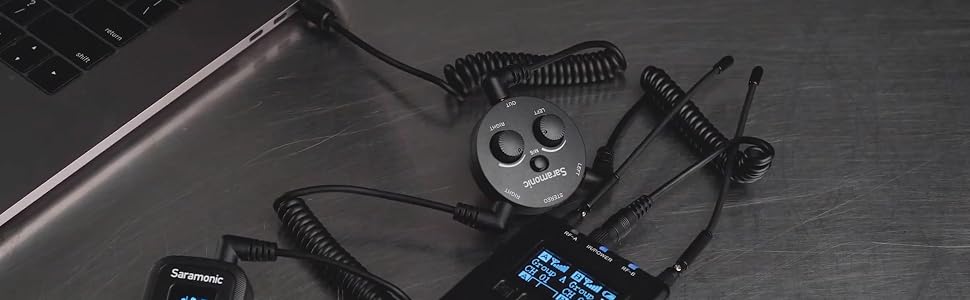

Use the TRS output cable for your Camera or portable handheld recorder to instantly expand their inputs and have M/S flexibility. Use it with the TRRS output cable for your Smartphone video rig to use two external mics or connect it to your laptop to add more mics to virtual meetings. With both 3.5mm TRS and TRRS output cables included, this tiny mixer can do that and much more. And if you need full M/S functionality with mobile devices, you can add the LC-C35 for iOS Lightning devices or the SR-C2001 for USB-C mobile devices and computers (sold separately).

Easily Mount Anywhere, Anytime

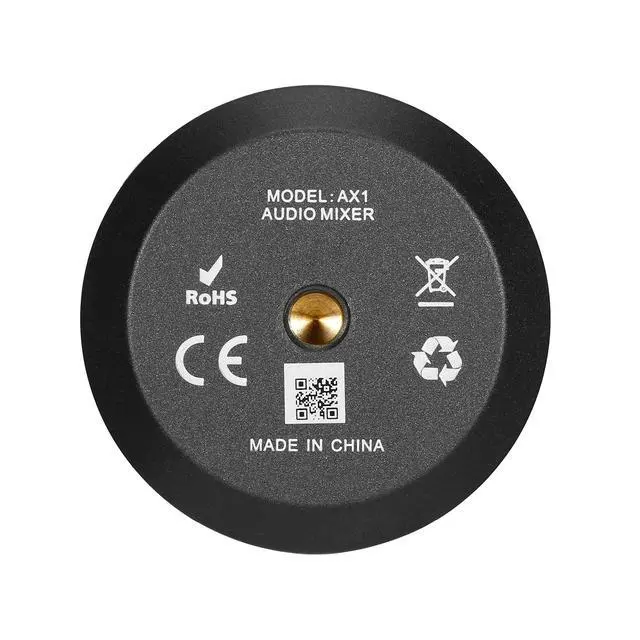

The AX1 features a 1/4"-20 female threaded mount on the bottom of the mixer, allowing thousands of mounting options using standard mounting hardware. The possibilities are endless and effortless to attach to any shooting rig or audio set-up.

Mount with a 1/4”-20 Shoe Mount

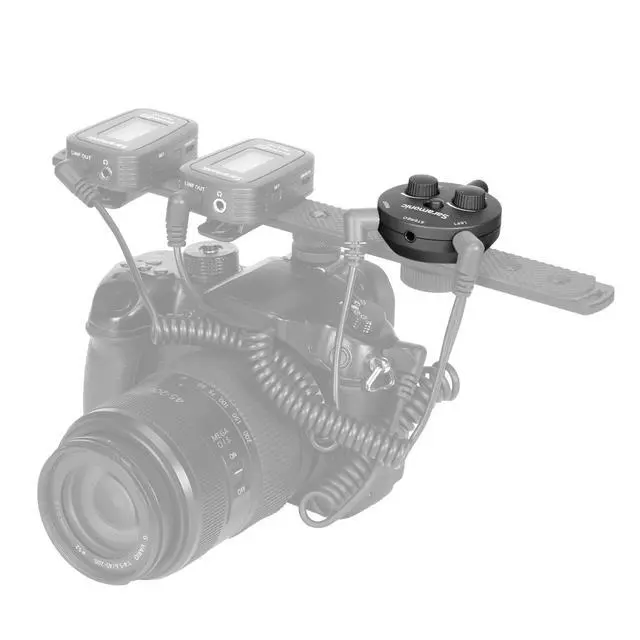

Use a 1/4”-20 shoe mount (sold separately) to mount on camera shoe mounts or on a shoe extension.

Mount with Threaded 1/4”-20 Studs

Use a threaded stud (sold separately) to mount to a cage or the back of a handheld recorder. You can even mount it to a ball-head to easily position the mixer exactly where you want it.

Mount with Dual-Sided Tape or Sticky Touch-Fasteners

Because it’s so lightweight and compact, you don’t even need a traditional mount. Use an inexpensive sticky Velcro or touch-fasteners, or dual-sided tape (sold separately) to mount it to your smartphone, camera, laptop cover or even the side of a wireless receiver.
