?APPLICABLE FREQUENCY?: Work for 900MHz+2100MHz+2600Mhz!! Before bid, plesae check the signal frequency of your place first. Otherwise, it will never work!! (There are 4 combination bands for you to choose from!)

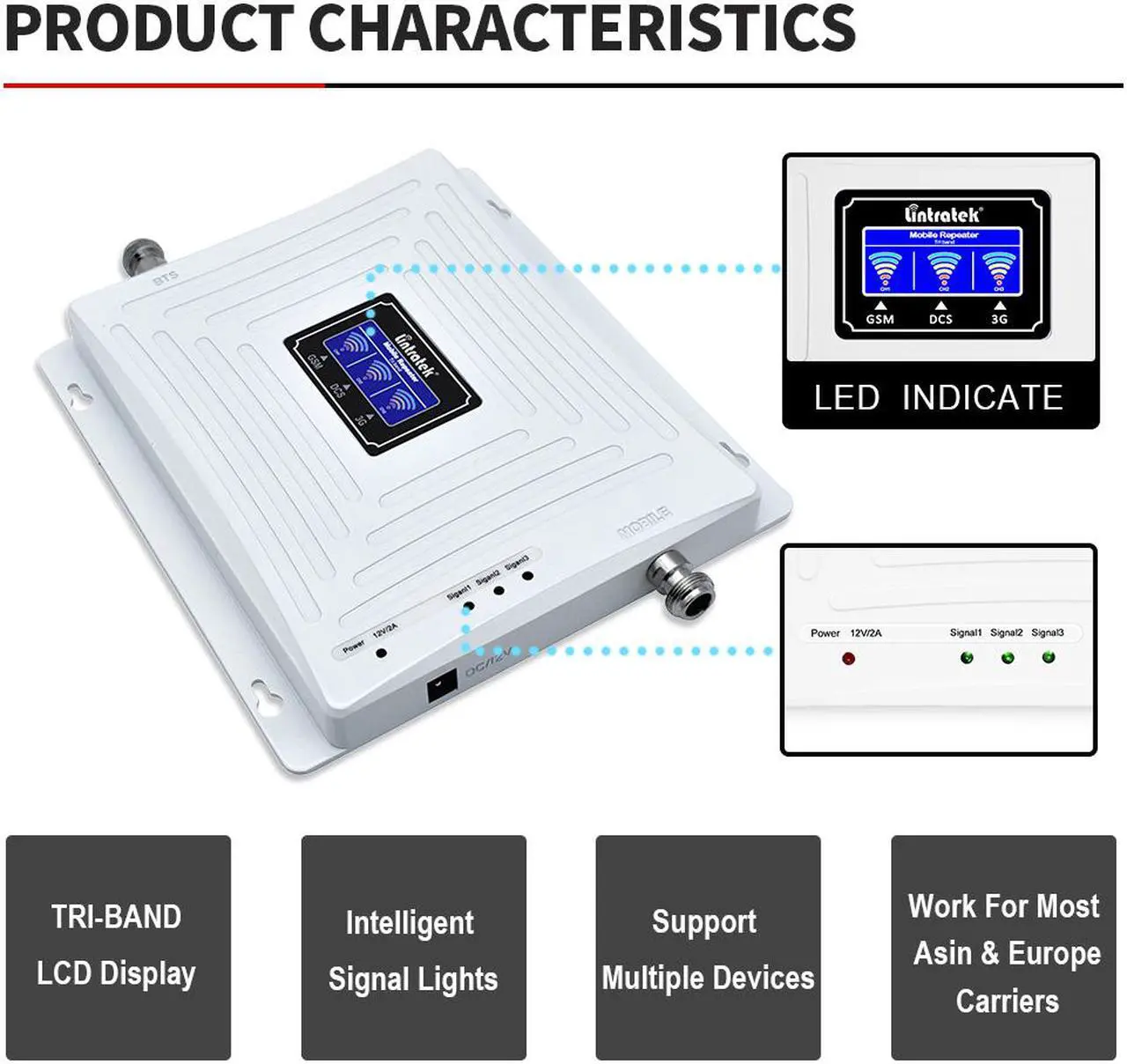

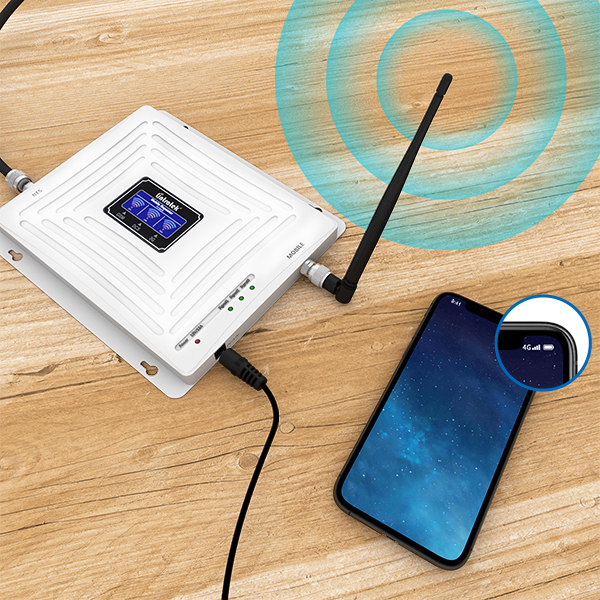

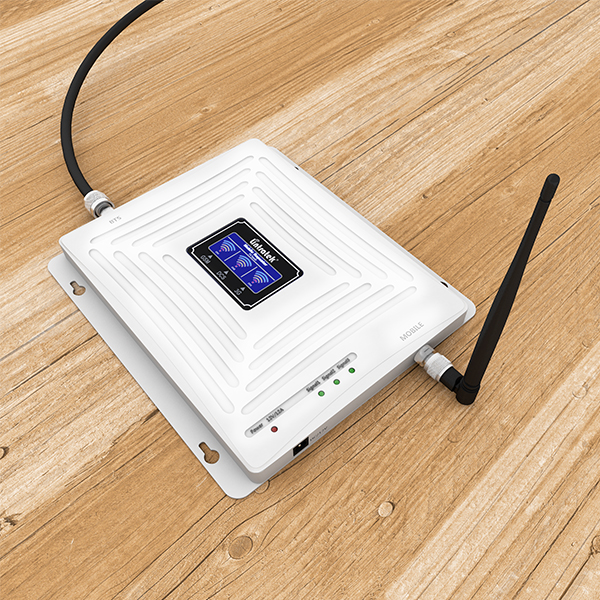

?INTELLIGENT PERFORMANCE?: Tri-band cellular signal repeater improve your mobile signal, no more bad reception,no more dropping calls!! LCD display helps you monitor your real-time signal status.

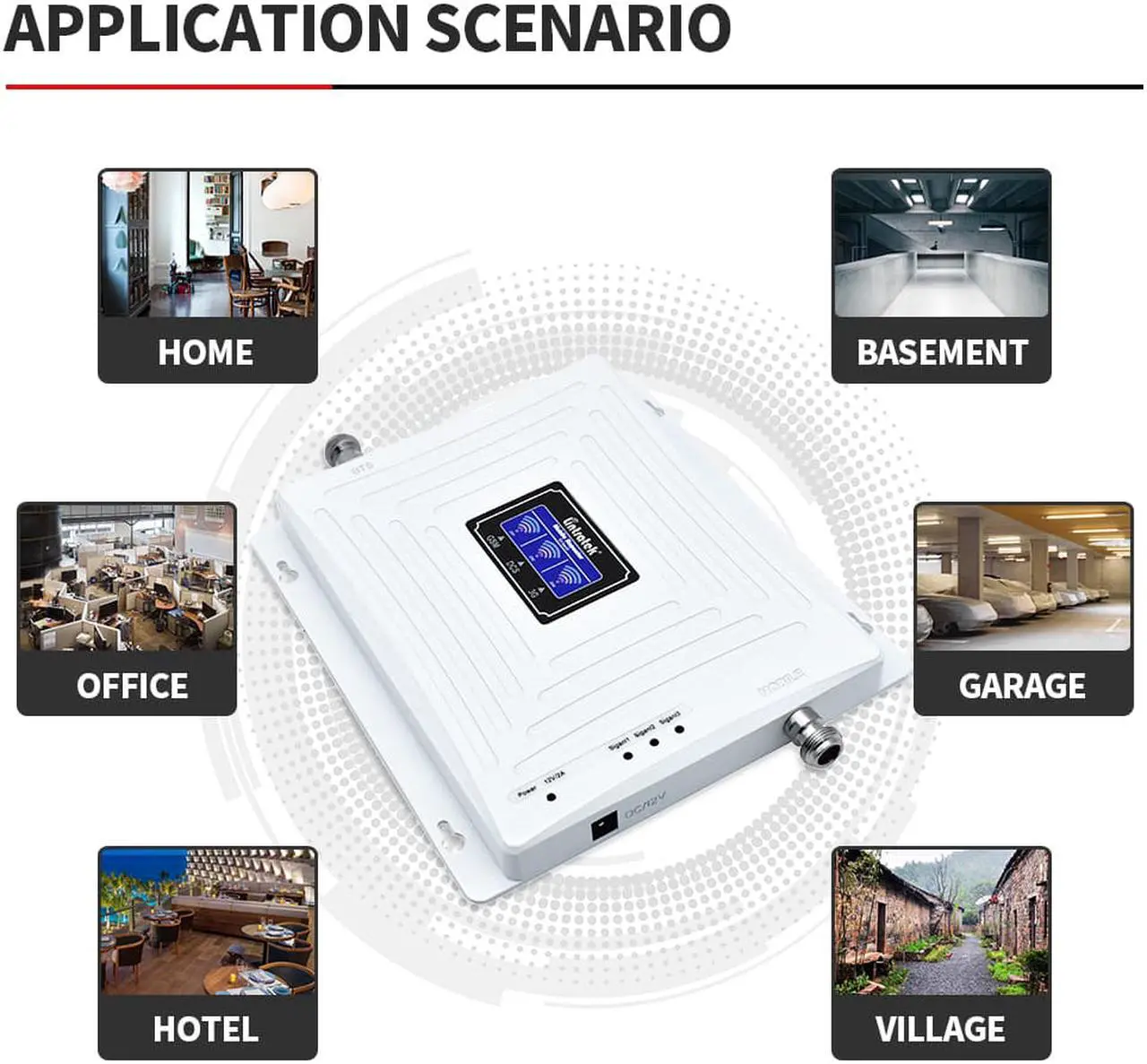

?LARGE COVERAGE?: Coverage up to 3000sq.ft.without obstacle.Improve 2G 3G 4G cell phone signal in your home/office/basement/village. Guarantee to improve your existing connection across multiple devices simultaneously.
?EASY TO SETUP?: All the components needed for installation are in the box!! No technical experience required - The English user manual will guide you through all accessories and provide step-by-step instructions for installation.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

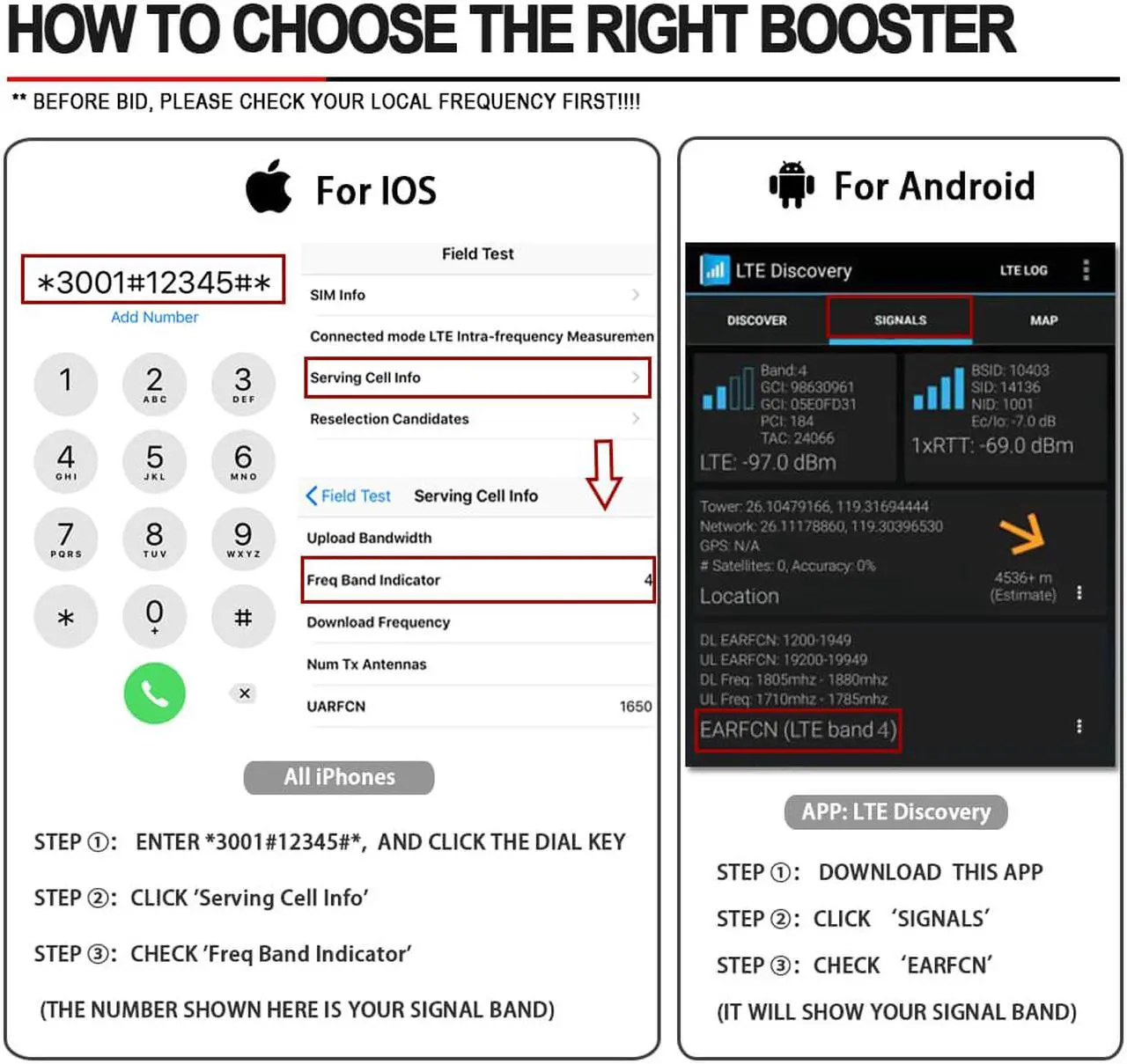

BEFORE PURCHASING, PLEASE CHECK YOUR PHONE SIGNAL AS BELOW: For IOS: Call *3001#12345#*? Click "Serving Cell Info"? Check "Freq Band Indicator" For Android: Download the app "Network Cell Info Lite"? Click "GAUGE"
Specification: Frequency range: 900MHz: 890-915/935-960MHz ; 2100MHz: 1920-1980/2110-2170MHz; 2600MHz: 2500-2570/2620-2690MHz; Output Power: 20dBm Gain: 65dB I/O Port: N-Female on both ends Main Power: AC: 100~240V; DC: 12V 2A Outdoor Antenna: 10dBi; support 800-2700mhz Indoor Antenna: 9dBi; support 700-2700mhz

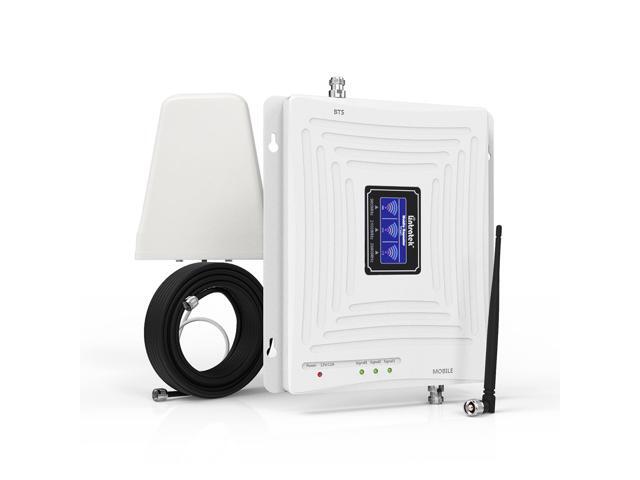

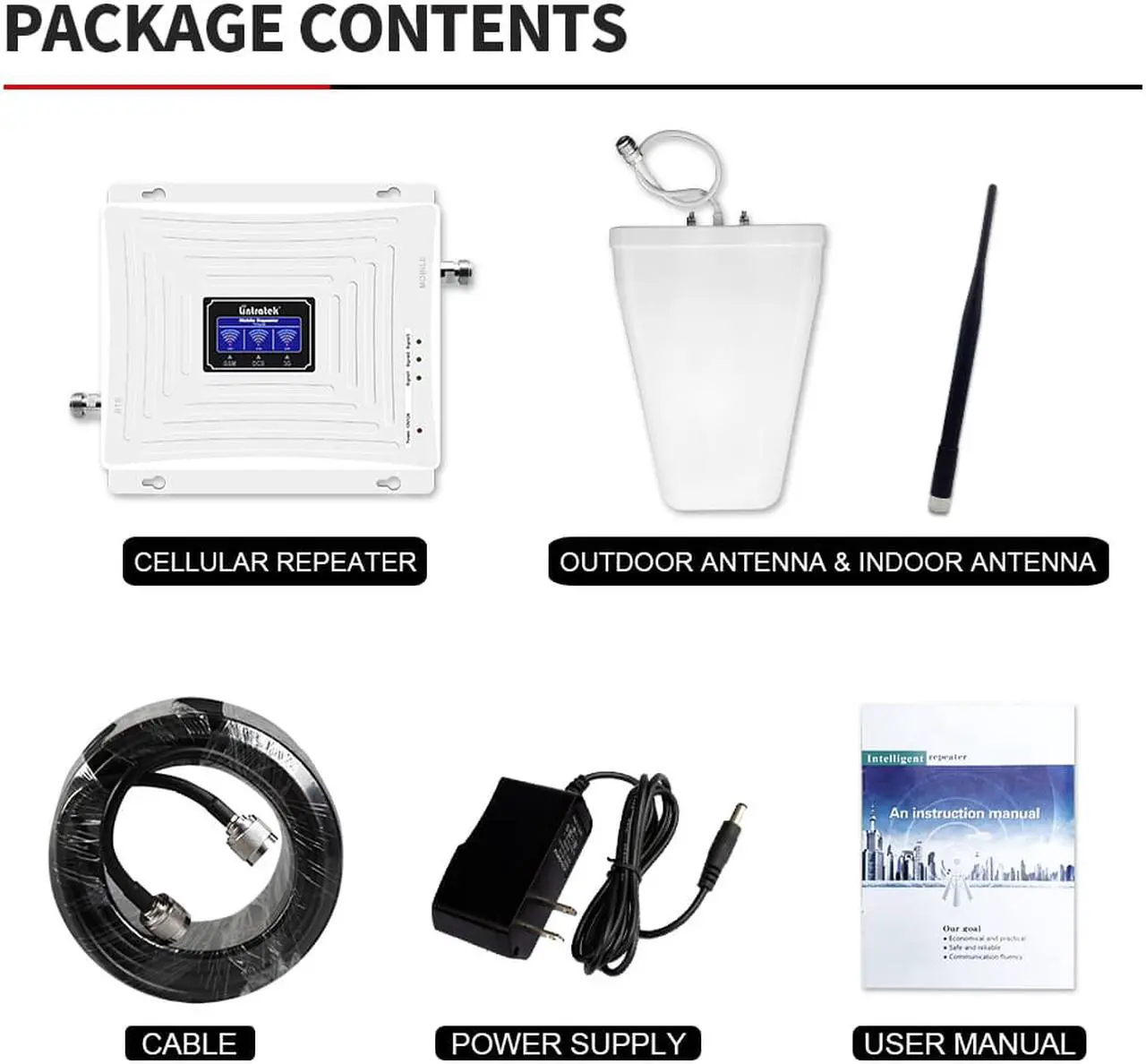

Package Including: 1 * Tri-band Signal Repeater 1 * Outdoor Antenna 1 * Indoor Antenna 1 * US Power Plug 1 * 10 Meters Coax Cable (blcak) 1 * English User Manual

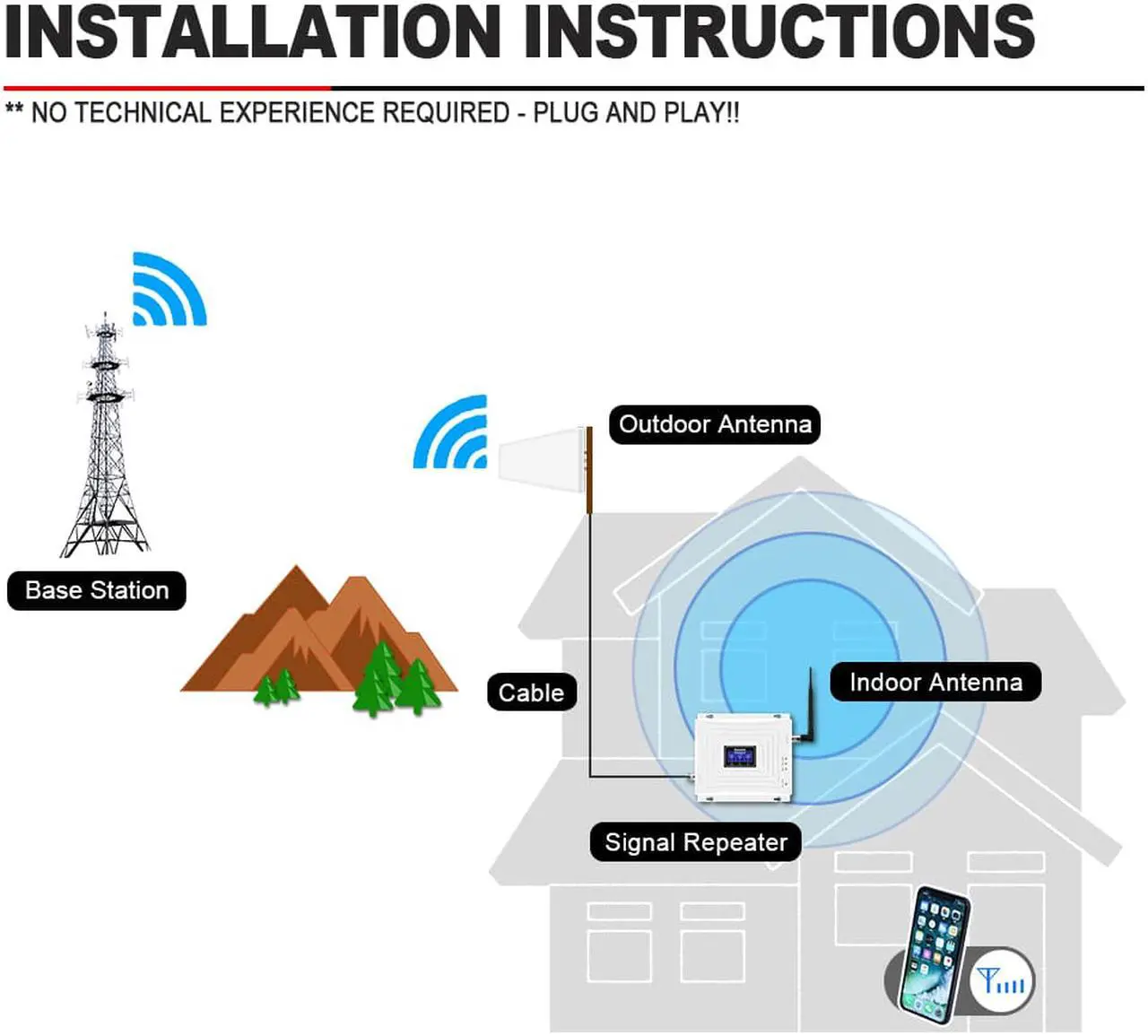

Easy Setup in 4 easy steps! [ 1 ] Mount the External Antenna in a place where has strongest cell phone signal. (eg. on a roof or in an attic) [ 2 ] Tightly connect the Internal Antenna to the "MS" port of the Amplifier Base Unit. (There should be a minimum of 6 vertical meters of separation between the Base Unit and External Antenna. ) [ 3 ] Run the coax cable (10 Meters) between the "BTS" port of Amplifier Base Unit and External Antenna. [ 4 ] Connect the power supply to the Amplifier Base Unit and plug into a power outlet and you are done!
Notice: 1. Usually, this item is not suitable for local use in the United States, so please confirm your signal frequency first before buying! 2. Make sure the Outdoor Panel Antenna towards the cell phone signal tower, and could receive at least 3 bars of stable signal. 3. The distance between the outdoor and indoor antenna should be above 7 or 8 meters. And there should be thick obstacles like walls between them. If there are any problems in testing, installing and using, please feel free to consult us. We are very very very pleased to help: )
Gain:
65dB
Output Power:
20dBm
Tri-band booster:
Improve 2G/3G/4G, 900MHz/2100MHz/2600MHz, Band 8/Band 1/Band 7 siganl
Not Work in USA:
These kinds of signal bands and frequencies do not exist in the USA, so it is impossible to work in
Power Supply
AC: 100~240V, 50/ 60Hz DC: 12V 2A
Other Accessories in the Package

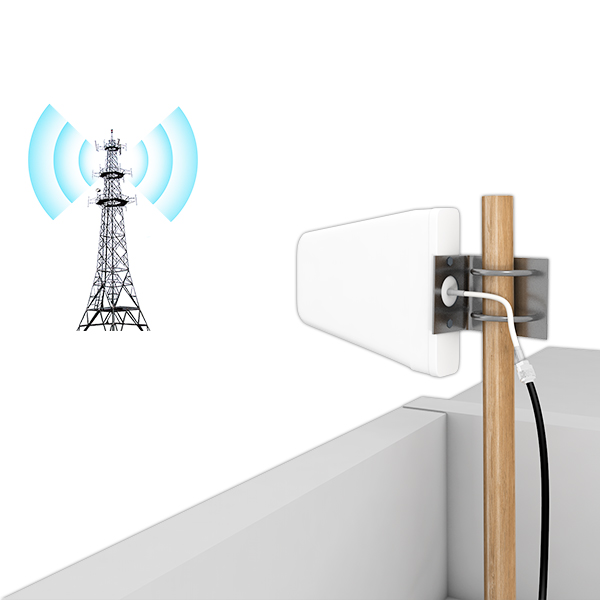

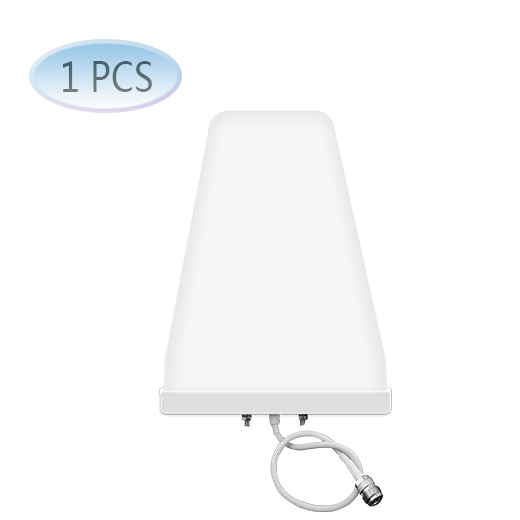

LPDA OUTDOOR ANTENNA
High Gain (10dBi)
Low Temperature Resistance
High Temperature Resistance
Waterproof
Plug and Play

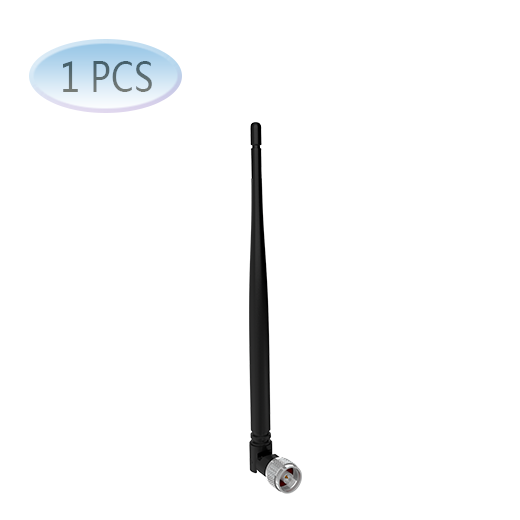

WHIP INDOOR ANTENNA
Light small
Widely Band Range (600~2700MHz)
Plug and Play

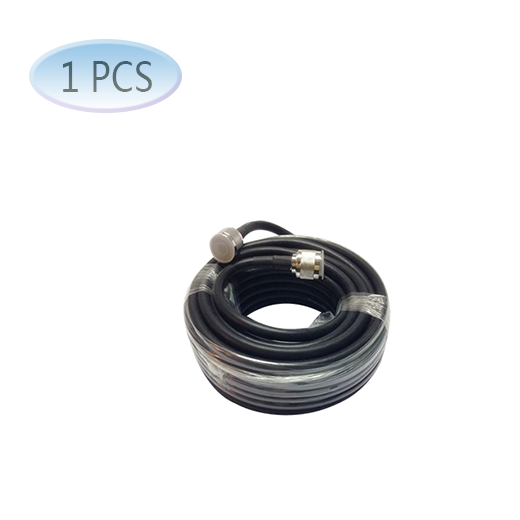

10M (33FT) COAXIAL CABLE
N-Male to N-Male Type
10 meters = 33ft
Plug and Play

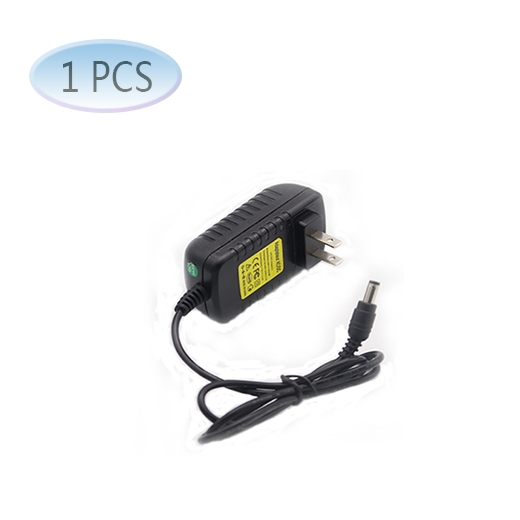

POWER SUPPLY(You can choose the power type and tell us.)
US standard/ UK standard/ European standard/ Australian standard for you to choose one type power supply
Input: 100-240V 50/60Hz
Output: 12V2A
(The default power supply socket type is US standard, but you can choose another type and let us know.)
Easy to Install, Plug and Play
STEP 1
STEP 2
STEP 3
STEP 4
Learn more about the Detailed Specifications
General
Type
Amplifier
Additional Information
Date First Available
April 28, 2021
