Sonnet Echo II DV 2-Slot Thunderbolt to PCIe Card Desktop Expansion System

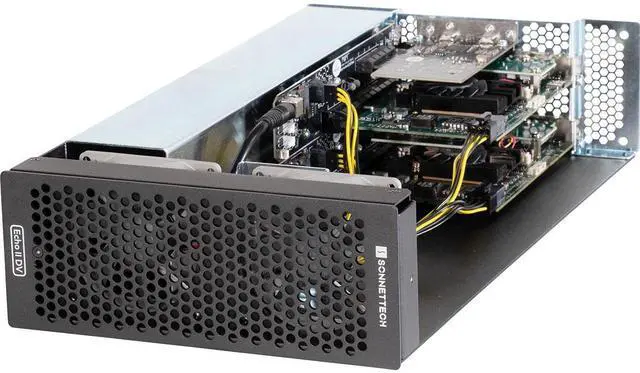

MAX DV Performance - Echo II DV DesktopDesktop 2-slot, Dual Thunderbolt Interface to PCIe Card Expansion System for Computers with Thunderbolt PortsCreate a Desktop Broadcast StudioConnect Two Bandwidth-hungry Pro PCIe Cards to Computers with Thunderbolt PortsWhile these Mac, Windows, and Linux computers include high-performance Thunderbolt ports to support peripherals, they lack PCIe expansion slots necessary to install specialty cards that add needed video and audio inputs, transcode data, and connect to high-speed shared storage and networks. Sonnet has the ultimate solution for cards with high bandwidth requirements - Echo II DV Desktop - a professional Thunderbolt Expansion System that enables you to connect two up to full-length ( 12.28 inches long), single-width PCIe cards to your computer, each to a separate Thunderbolt port (if needed) for maximum bandwidth to each card.

Dual Thunderbolt Interfaces - Double the Dedicated ted Bandwidth Bandwidth Connect DV I/O or Other Bandwidth-hungry PCIe Cards Dual Thunderbolt Interfaces for Maximum Bandwidth Full 2880 MB/s PCIe Bandwidth to Each SlotSpecially Designed to Support Maximum Performance from Two CardsTwo PCIe Card Slots. Dual Thunderbolt Interfaces for Double the Bandwidth. Some computers - such as the latest MacBook Pro, Mac Studio, Mac mini and iMac - have multiple Thunderbolt ports that are supported by separate 40Gbps Thunderbolt buses and provide up to 2880 MB/s of PCIe bandwidth to each port. Among multi-slot Thunderbolt to PCIe card expansion systems, the Sonnet Echo II DV Desktop is unique.

Instead of using one Thunderbolt interface for two or three slots - which dynamically allocates the PCIe bandwidth between them - Echo II DV employs one interface per slot. With each slot getting Thunderbolt's full PCIe bandwidth, you can exploit two cards' full potential when connected at the same time to separate Thunderbolt buses on the computer, ideal for cards with high bandwidth requirement such as DV I/O, NVMe SSD storage, and 10 and 25Gb Ethernet adapters. It's All About That Bandwidth - Separate Thunderbolt Interface for Each Card SlotBy employing a separate Thunderbolt interface for each card slot, Echo II DV is designed to provide full PCIe bandwidth to each slot when connected to two computer Thunderbolt ports that also have independent PCIe bandwidth.

Computers with independent PCIe bandwidth to two or more Thunderbolt ports include all Apple M series Macs, and Intel Macs or PCs with three or four Thunderbolt ports. (A few Pro PC laptops with only two Thunderbolt ports support independent PCIe Bandwidth. Check your computer's specifications. ) Computers that share PCIe bandwidth between their Thunderbolt ports, that would provide only shared bandwidth to the two slots, include Intel Macs or PCs with only two Thunderbolt ports. Dual Thunderbolt Ports Connection Option for Maximum PerformanceConnect Two DV I/O or Other High-bandwidth Cards Directly to Two Thunderbolt Ports On Your Computer for Full PCIe Bandwidth to Each CardSingle Thunderbolt Port Connection OptionAlso Works with Computers with Only One Available Thunderbolt Port to Support Two CardsVersatile PCIe Card Support - Supports Every Thunderbolt Compatible, Single-width, Non-GPU CardEcho II DV Desktop supports every Thunderbolt compatible, single-width, non-GPU PCIe 4.0, 3.1, 2.0, and 1.1 card available including video capture, streaming and transcoding; SSD storage; audio DSP; 10Gb or 25Gb Ethernet; SAS or SATA host bus adapter; and other specialty types to your system.

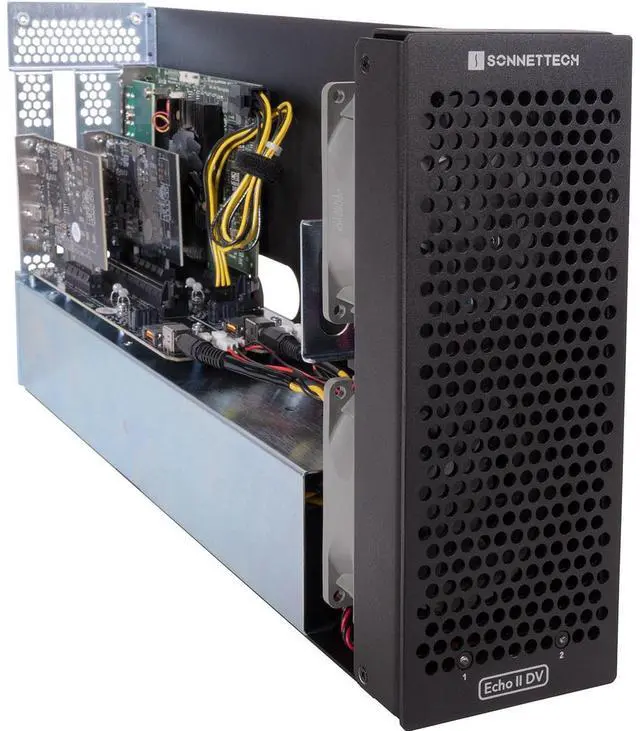

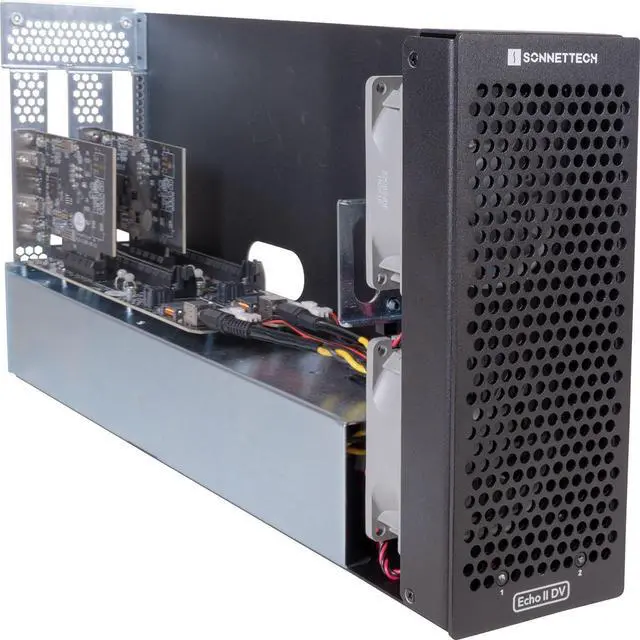

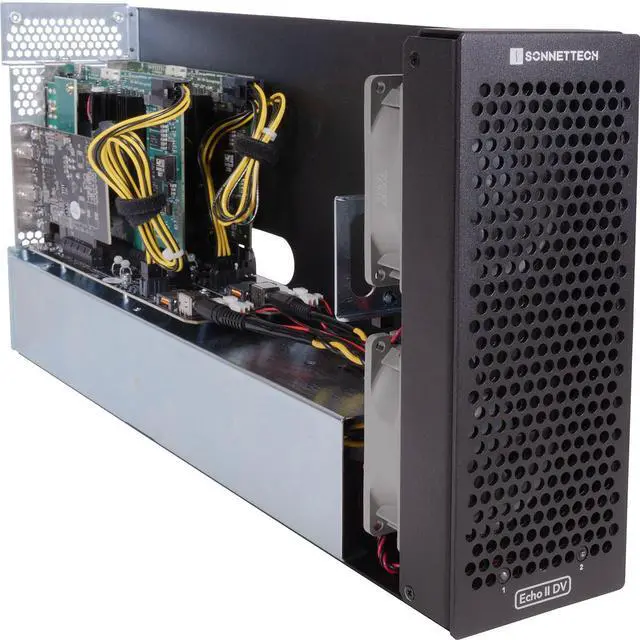

Two PCIe 3.1 Slots and Power to SpareEcho II DV Desktop features two x16 PCIe slots with support for a wide variety of cards. For power-hungry cards, Echo II DV integrates a universal 400W power supply and includes dual 75W auxiliary power connectors (one for each card slot) for non-GPU cards that require extra power, including AJA Kona 5, Blackmagic DeckLink 8K Pro, Bluefish444 Epoch and KRONOS SDI cards, and Avid Pro Tools | HDX
