RIITOP MacBook SSD Enclosure,
Macbook 12+16 Pin AHCI SSD to Type-C Adapter
Important notice:
DO NOT support Toshiba SSDs.
DO NOT compatible with all SATA SSDs.
DO NOT Support Apple SSD with Built-in Heat System.
DO NOT Suport latest macOS Sonoma.

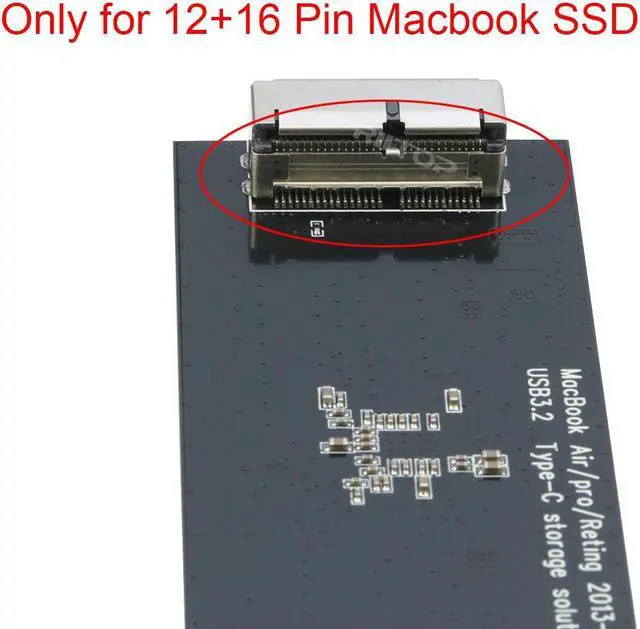

RIITOP USB C 3.2 SSD enclosure works well for Macbook SSDs with 12+16 Pins:
Alow Mid 2013 -2016 Year macbook air and Late 2013 - Mid 2015 Year PRO SSD to read in USB 3.0/3.1 external HDD case.
Support SD6PQ4M-128G,SD6PQ4M-256G SSD.
Support Samsung MZ-JPU128T, MZ-JPU256T,MZ-JPU512T,MZ-KPU1TOT,MZ-JPV1280.
Note:
NOT Suport all Toshiba and OEM OWC SSD from 2013-2015 Macbook PRO.
Supports Windows7/8/10/11,Mac OS 10.0,Linux 2.6 or later.
Supports for 2013-2017 MacBook Air, 2013-2015 MacBook Pro Retina, 2013-2014 iMac, 2013 Mac Pro.

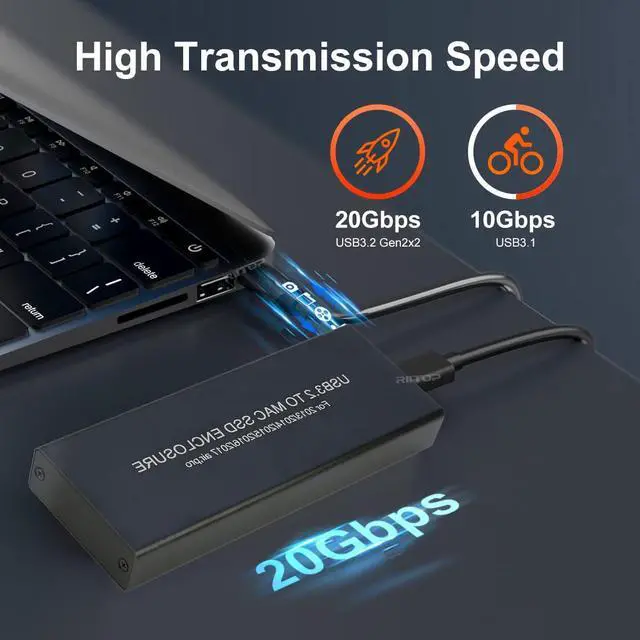

Faster Data Transmission:
10Gbps transmission speed with USB 3.2 Gen2 interface. Save and transfer data in a seconds.
It can also reach 20Gbps transmission speed with USB 3.2 Gen2x2 if the computer supports.

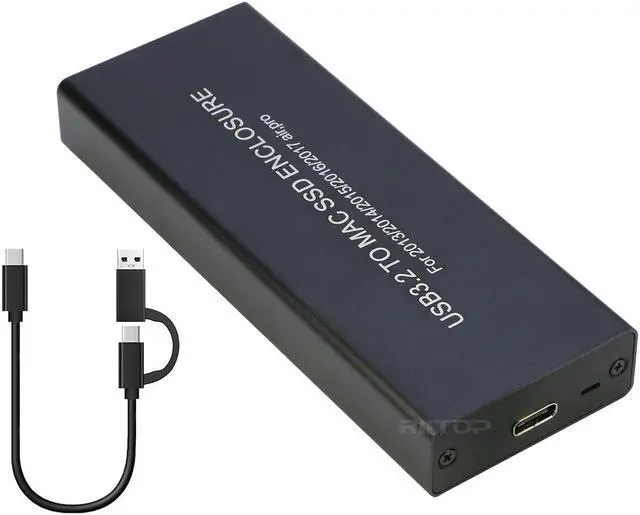

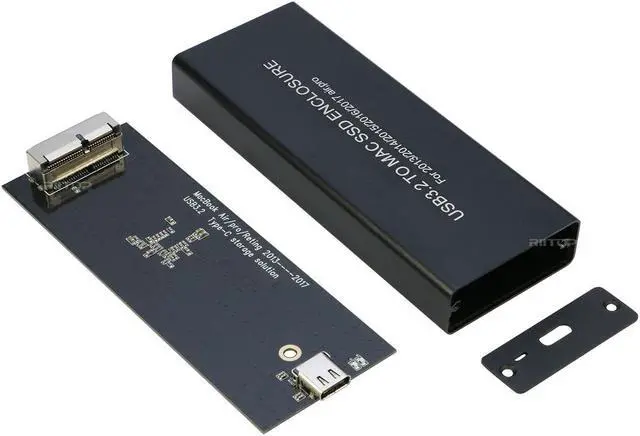

1x RIITOP USB 3.2 Type C to 12+16 PIN Apple Flash AHCI SSD Adapter with Enclosure.
1x USB C to C Cable with C-A Connector.(30cm)
1x Screwdriver.
Important notice:
DO NOT support Toshiba SSDs.
DO NOT compatible with all SATA SSDs.

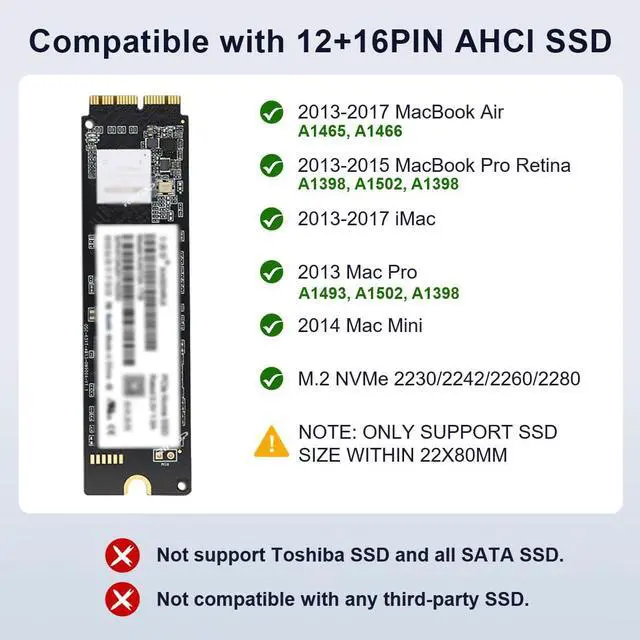

RIITOP USB C 3.2 SSD enclosure works well for Macbook SSDs with 12+16 Pins, for 2013-2017 MacBook Air, for 2013-2015 2017 MacBook Pro Retina, for 2013-2015 2017 iMac, for 2013 Mac Pro.
Specification:
Type: USB C 3.2 SSD enclosure for Macbook SSDs with 12+16 Pins.
Shell material: aluminum alloy.
Interface: USB 3.2 Type C.
Transmission speed: up to 20Gbps, 10Gbps, 5Gbps, according to your SSD & your PC USB version.
Application: for MacBook Air 2013-2017 / Pro Retina 2013/2014/2015/2017.
Product size: 107 * 40 * 14mm / 4.21*1.57*0.55in.
Weight: 107g.
Colour: Black.
Application Attention:

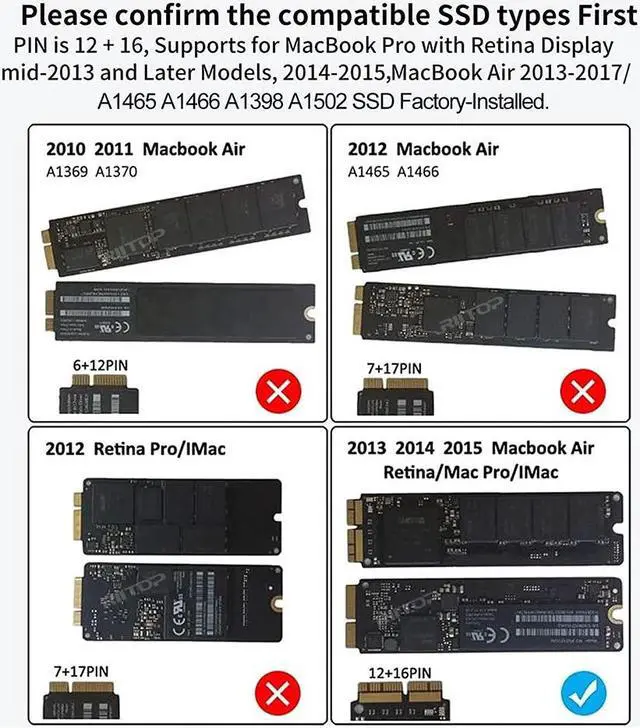

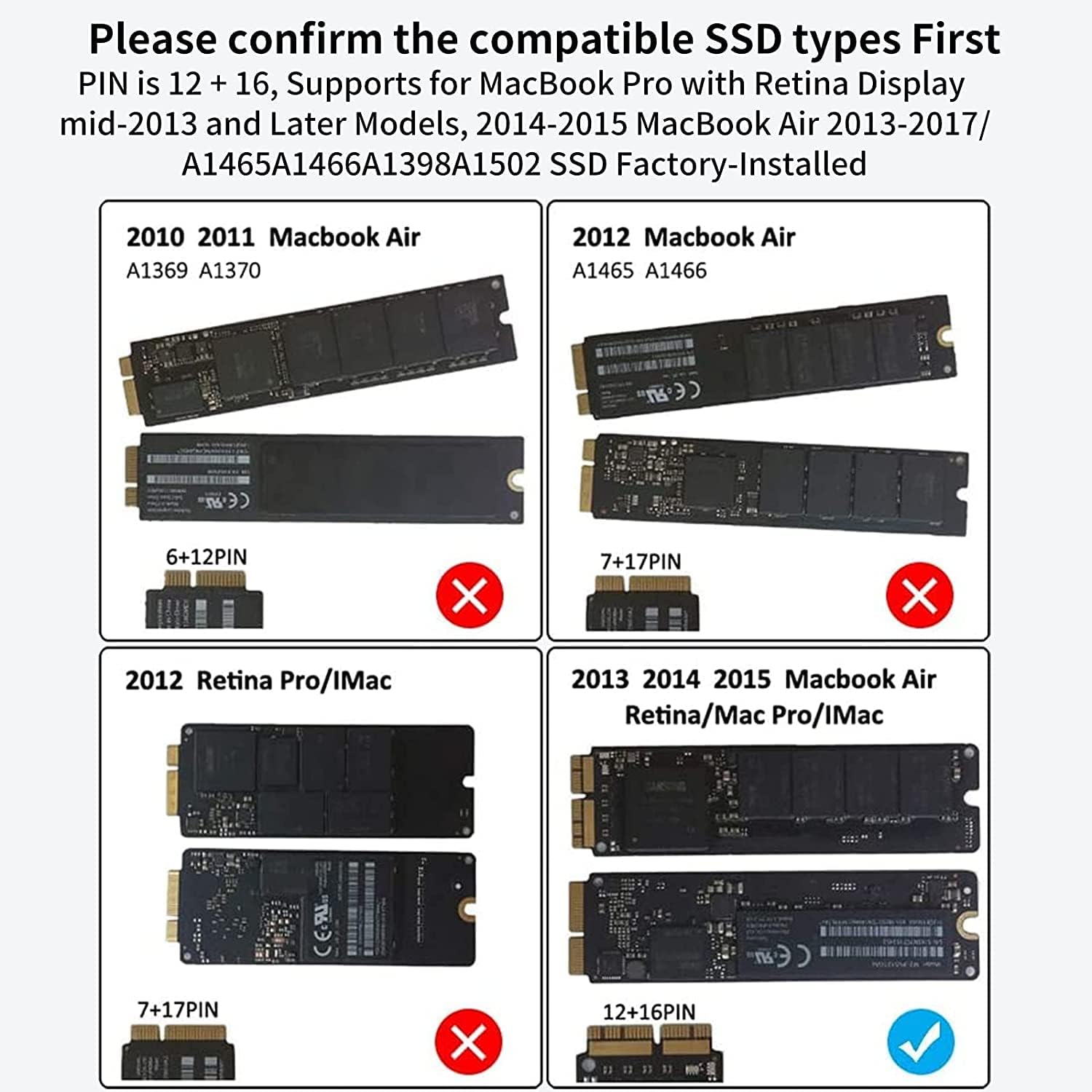

1. Please make sure your SSD is from the following models: for MacBook Air / Pro Retina 2013 2014 2015 2017 built-in SSD (NOT for MacBook 2010 2011 2012 SSDs, and NVMe protocol SSDs are not applicable.)
2. Do not move the hard drive case during use, and prevent collision with the hard drive.
3. Do not squeeze the product with external force.
4. Non-professionals should not disassemble the product or repair it.
5. When disconnecting this external hard drive, you should exit safely. If the hard drive data is accidentally lost, we are not responsible to restore any data.
6. For Mac OS PC, the hard drive should be formatted with exFAT.
7. Your internal SSD needs to be re-partitioned for normal storage and copying, otherwise it may appear unrecognizable.
8. If high transmission speed is required, please plug it into a computer equipped with USB3.0 interface.
QA:
Q: Why doesn't the drive work after I installed it and followed the instructions?
A: Please check as follows.
1, If the indicator light is off, please check if the enclosure and device is firmly connected or if the data cable is damaged.
2, If the indicator light is on, please check if it is recognized in the system information, if not, the SSD may be damaged.
Q: Why is the MacBook SSD Enclosure very hot when it is running?
A: This is a normal phenomenon, SSD will generate a lot of heat when transferring data at high speed, the aluminum housing will conduct heat more efficiently, please install the rear housing during use, this will improve the efficiency of heat dissipation.
Q: Why does connecting other hard drives not work?
A: This MacBook SSD Enclosure is only compatible with MacBook Pro,MacBook Air, Mac Pro, iMac from 2013 to 2017. other models of SSD are not readable, please make sure the hard drive model before use.
If you are using SSD with M.2 interface, we provide M.2 adapter, please follow the adapter in advance and then install the hard drive.
Q: Why does the connect suddenly break during the use of macbook ssd enclosure?
A: 1, First make sure macbook ssd is installed properly, better tighten the screws to make sure it won't be disconnected suddenly.
2, deselect Put hard disks to sleep when possible in both Battery and and Power Adapter.

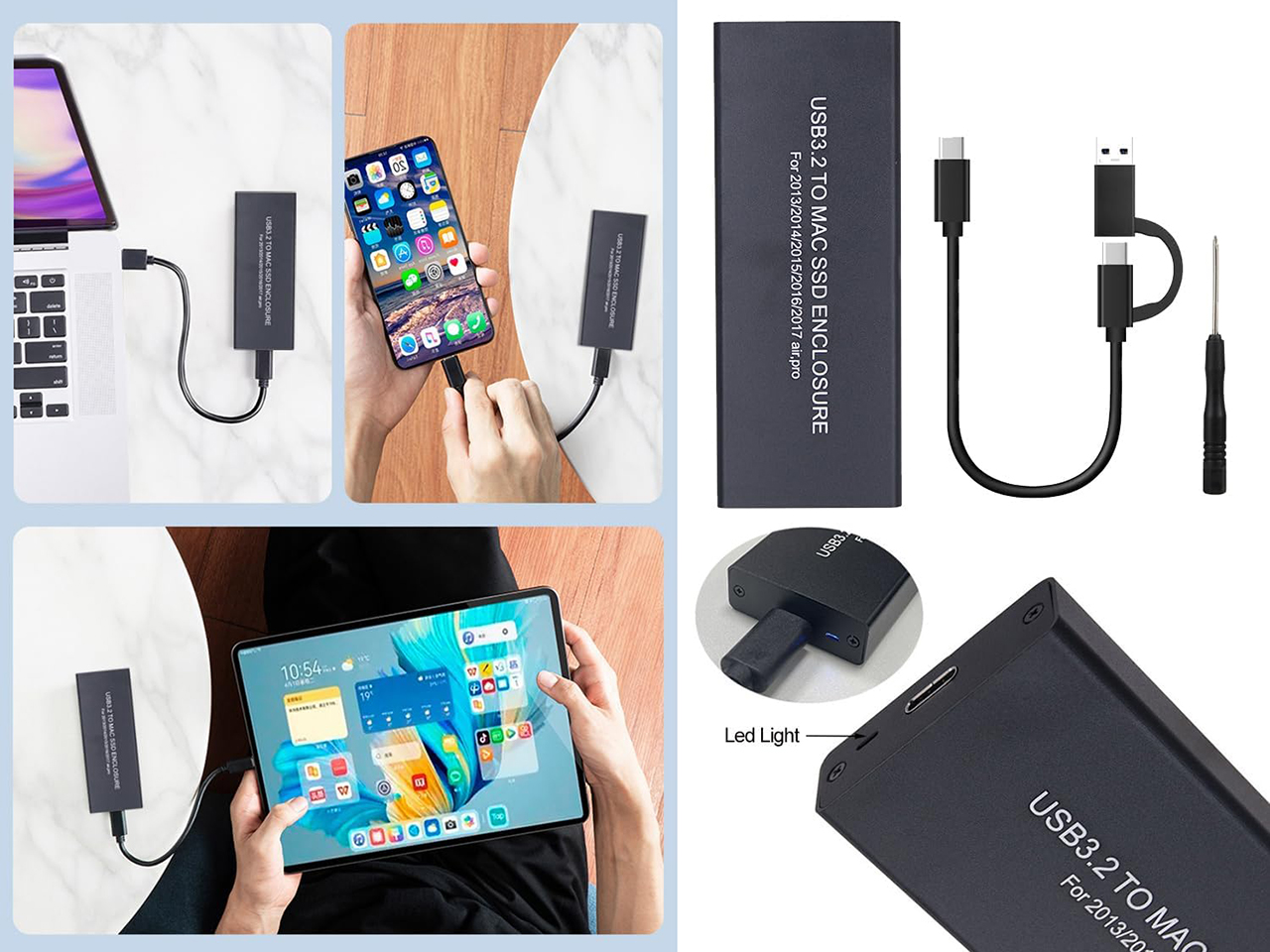

Package Content:
1x RIITOP USB 3.2 Type C to 12+16 PIN Apple Flash AHCI SSD Adapter with Enclosure.
1x USB C to C Cable with C-A Connector.(30cm)
1x Screwdriver.
