RSHTECH USB 3.0 to SATA Dual Bay External Hard Drive Dock with SD TF Card Reader for 2.5 & 3.5 Inch HDD SSD Support Offline Clone/Duplicator Function, Tool-Free Docking Station (2x16TB Supported)
Dual Bay Docking Station: Supports Standard Desktop 2.5"/3.5" SATA Hard Drives or SSD and UASP protocol, Supports hard drives up to 16TB.
Hard Drive Offline Clone Function: Support offline clone, no drivers needed, easy installation; cloning can only be done from A drive to B drive, make sure the memory capacity of B drive is larger/equal than A drive;
USB 3.0 Superspeed: Super speed USB 3.0 data file transfers (up to 6 Gbps), 2 USB 3.0 port and SD/TF card reader in front, Plug and Play, no reboot or additional drivers needed, hot-swapping, easy and quick Tool-Free installation.
Stable & Reliable DC Power Source: The power supply is highly efficient (UL Listed DC 12V, 3A), stable and reliable power source guarantees a steady supply of energy. Automatic sleep mode after 10 minutes of inactivity saves energy.
Broad Compatibility: Compatible with Windows 2003 / XP / Vista / Win 7 / Win 8 / Win 10, Mac OS, Linux 9 and above, backward compatible with USB 2.0 / 1.1 connections.
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
RSH-DS02 HDD Dock
RSH-DS02 HDD Dock
RSH-DS02 HDD Dock
USB 3.0 Superspeed
This USB 3.0 hard drive docking station supports UASP protocol. The transmission rate up to 6Gbps.( Please confirm whether your computer supports the UASP Protocol or not first.)

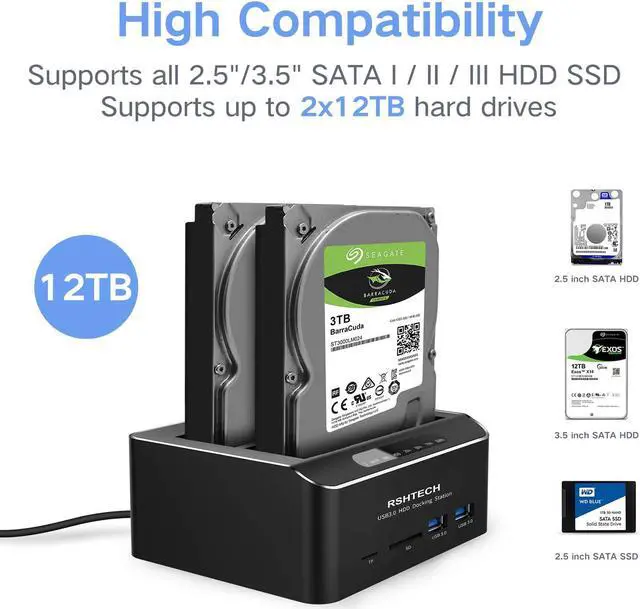

Support 12TB hard drive for 2.5" & 3.5" SATA HDD / SSD.
Supported OS: Win 10/8/7, VISTA, XP, Mac OS, Linux 9 or above
SATA Interface
Supports SATA hard drive only.
FAQ

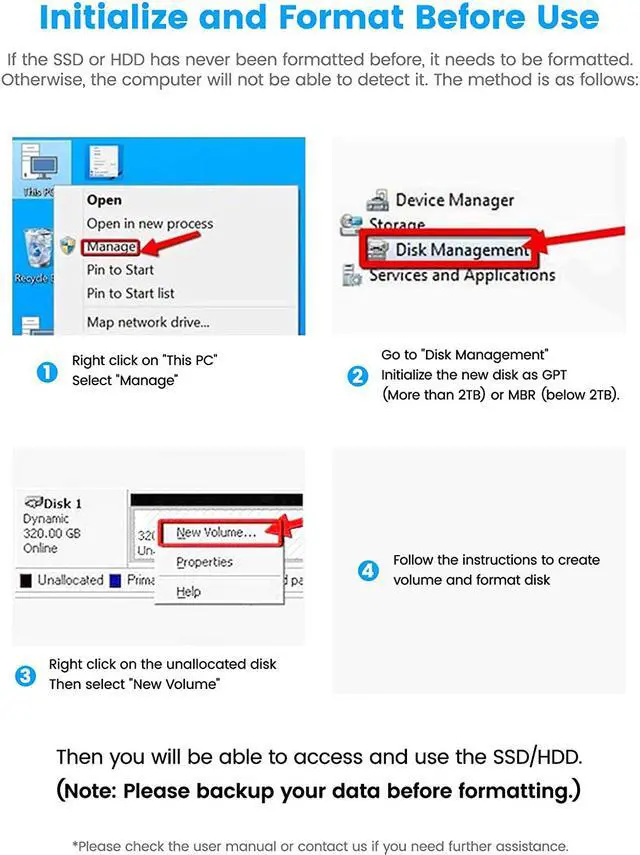

HDD is not recognized by the Computer
New or old HDD may not be initialized(if there is data on the hard drive, please backup it in advance)
There is unallocated space on the hard drive

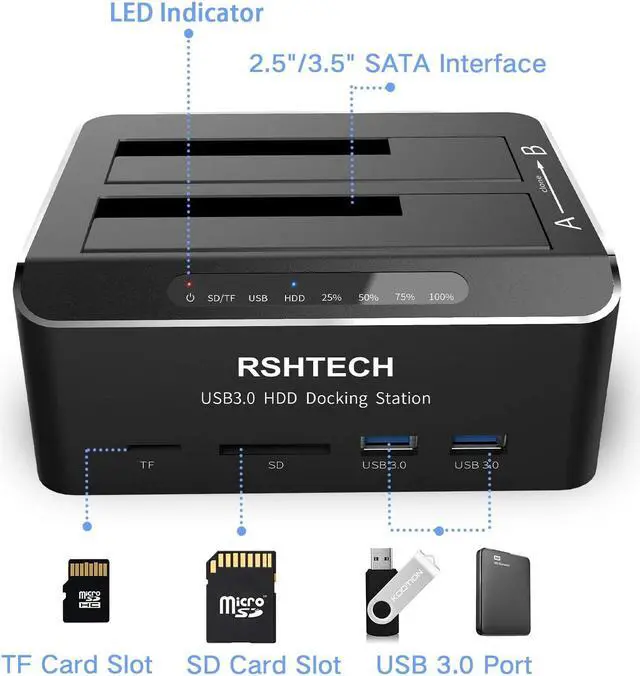

Multi-function Docking Station
4-in-1 function, including storage, clone, USB hub, and Card reader
2 USB 3.0 port and TF/SD Slot(supports up to 128GB), Plug and Play, easily transferring high-resolution images and video recordings.
Auto-Sleep Function: Entering sleep mode automatically after 10 minutes of inactivity conserves power and prevents overheating.
Offline Cloning:
Press the OTC / OTB button at the back of the docking station to start copy data from A disk to B disk automatically.
Notes: Please backup files before cloning. Any files in the target hard drive will be overwritten when offline cloning occurs
Package Includes:
1 x Dual Bay SATA Hard Drive Docking Station(RSH-DS02)
1 x 12V/3A DC Power Adapter
1 x USB A to A Cable
1 x user manual
RSHTECH Dual Bay SATA Hard Drive Docking Station equips 4-in-1 function, including storage, clone, USB hub, and Card reader. Supports UASP protocol: UASP (USB Attached SCSI Protocol): supports for HDD/SSD faster transfer performance, 70% faster than traditional USB 3.0, requires UASP capable host controller and operating system. (Real-world performance depends on the disk drive and host system.) Supports up to 2x 12TB hard drive: USB 3.0 dual-bay Hard Drive Docking Stations can access both disks simultaneously. Maximum Capacity of 2x 12TB. Offline Clone Function: -Ensure the Power Switch on the rear is in the OFF Position and plugged in properly. -Insert Both hard drives and identify Source Disk and Target Disk (Make sure the memory capacity of B drive is larger/equal than A drive ) - Make sure that the USB cable is disconnected from any computer during the cloning. - Press the "Clone" button for 3 seconds until the LED starts to flash and the cloning process begins. -Progress indicator with LED: 25% - 50% - 75%-100%. When offline clone operation is fully completed, all LEDs will constant on. Note: -The offline clone function cannot be processed if there are bad sectors or tracks on the hard disk. - Do not try to remove your HDD or SSD device while it is active. Please power off the docking station before removing. -Please backup files in the target hard drive before cloning. Any files in the target hard drive will be overwritten when offline cloning occurs. - If you are mounting a drive which larger than 2TB, please initialize with Partition Style GPT. -If there is no USB 3.0 port in the front of the desktop computer, it is recommended to connect the 3.5" hard drive enclosure to the rear USB 3.0 port to achieve the best transmission speed.
Learn more about the Detailed Specifications
Details
Color
Black
Size
2.5" & 3.5"
AC Adapter
Yes
Material
Aluminum / Plastic
External Interface
SATA
HDD Count Supported
Dual HDD
Number of Bay
2 Bay
Additional Information
First Listed on Newegg
April 16, 2021
