    Yottamaster 5 Bay RAID External Hard Drive Enclosure 2.5" 3.5" USB3.0 to SATA HDD SSD Enclosure,Support 90TB & RAID 0/1/5/10/JBOD RAID Mode Hard Drive RAID Storage for NAS Expansion[FS5RU3]

    Limited time offer, ends 01/11 By EnYZME

    Be the first to review this product...
    • About this item
    • 90TB,Enterprise-class Storage Capacity This 5 bay hard drive Case supports 5 hard drives with a max. capacity of 90TB(18TB for single disk).Great for video editing, photo backup, storage of R&D technical documents, archival backup, music libraries, financial records, storage of video surveillance recordings and corporate data storage.With 5 indicator lights to monitor the operating status of each hard drive. Plug-and-play hot swapping.
    • Full RAID function, Flexible Storage Solution Yottamaster 5 Bay RAID HDD enclosure is the ultimate storage solution for demanding video workflows on location and in the studio.Supports RAID 0/1/5/10 / JBOD / CLONE/Normal RAID modes; Manage massive amounts of media from multiple cameras on location or in the studio with up to 80TB of RAID storage in one system.
    • For 2.5"/3.5" HDD & SSD Yottamaster 5 bay hdd enclosure designed for both 2.5" SSDs where speed is the priority and for 3.5" HDDs when it's important to maximize the storage c
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    1
    5 Bay RAID External Hard Drive Enclosure
    Technical Information

    Dimensions and Weight: L x W x H: 26.5 x 13.7 x 20 cm, 10.43 x 5.39 x 7.87 inch. Weight: 4.16kg / 146.74 oz / 9.17 lb.

    Interface and Data Cable: USB3.1 GEN1 Type-B 5Gbps. Type-A to Type-B (1m).

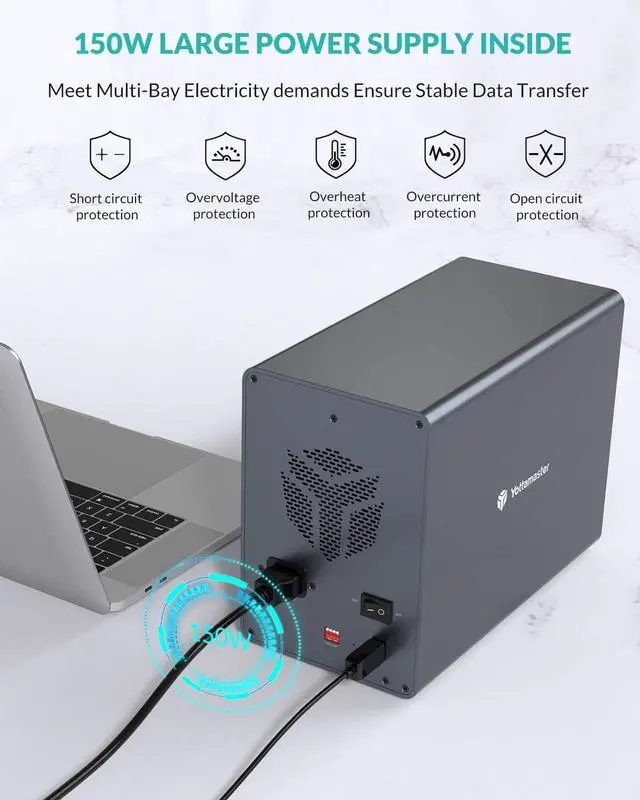

    Fan and Voltage: 80mm Silent fan (12V, 2PIN). 150W Power Supply Inside.

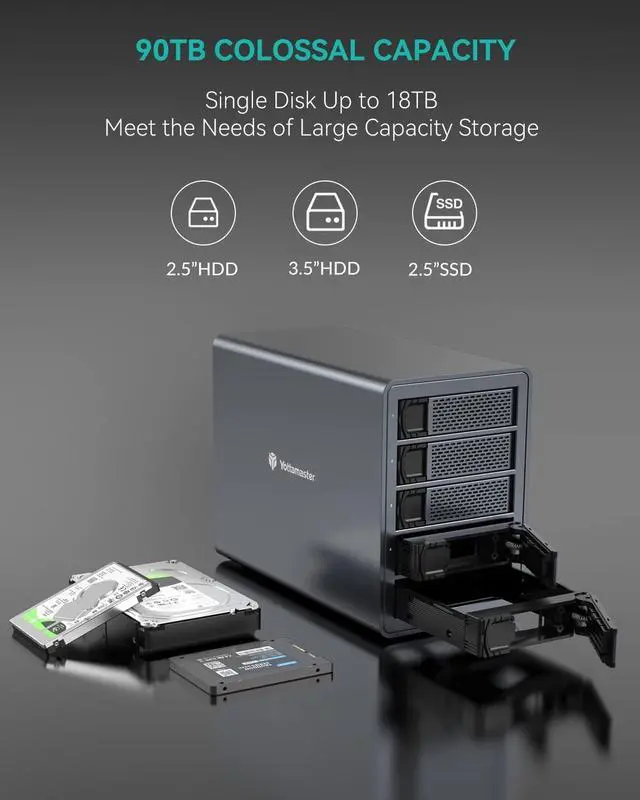

    HDD/SSD Capacity: Support 2.5"/3.5" SATA HDD/SSD. Support up to 18TB, 90TB in total.

    RAID Array: Support RAID 0/1/3/5/10, SPAN, Normal. (Setting two RAID modes at the same time is not supported.)

    The RAID management software currently does not support MAC OS11 or higher system versions. We are working hard to optimize the software and apologize for any inconvenience this may cause.

    Sleep mode cancel: Download our firmware or use the third-party software, like KeepAliveHD/Prevent Disk Sleep.

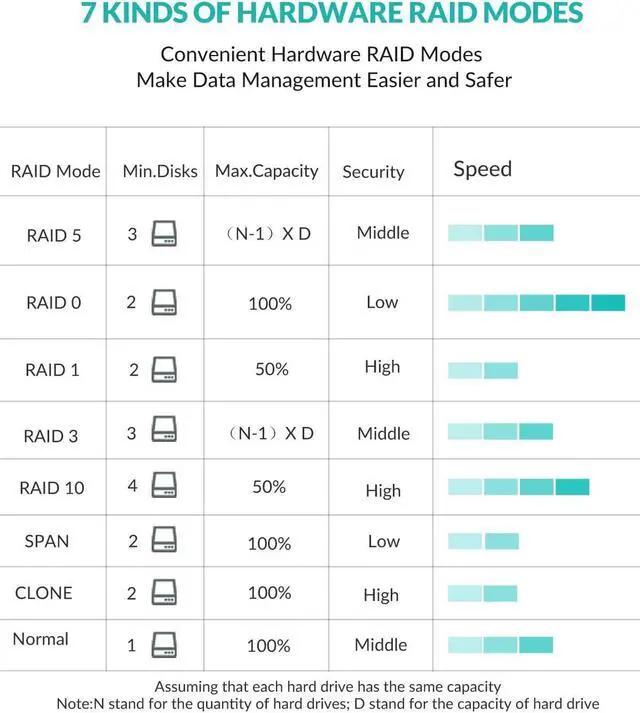

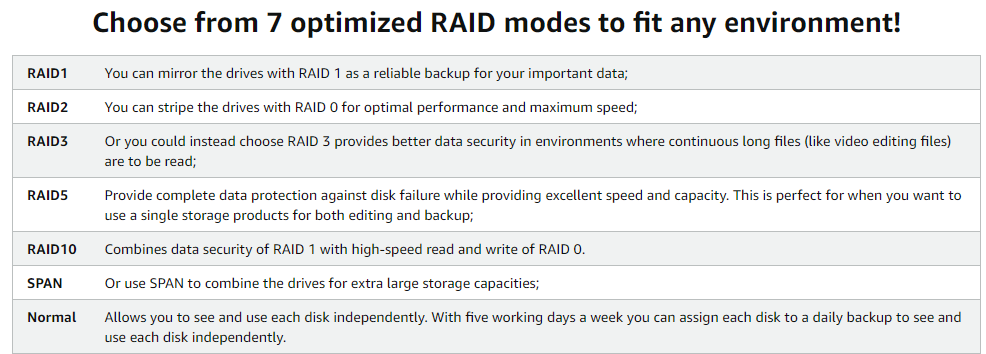

    Choose from 7 optimized RAID modes to fit any environment!

    RAID1-10

    1
    1
    Vibration-absorbing feet
    • With four vibration-absorbing&non-slip feet.
    • The 5 bay enclosure can turn into a quiet assistant to help you at the desktop.
    2
    Press left
    • User-friendly design, making it easily to install and uninstall.
    • Five universal drive bays for 2.5" and 3.5" hdds/ssds.
    3
    More Security

    The enclosure is firmly fixed by screws, which can effectively protect your hdds from shock and interface damage.

    4
    Heat-dissipation
    • Built with a heat-dissipating aluminum enclosure, a whisper-quiet fan, help to rapid cooling.
    • Runs cool and quietly, making it ideal for noise-sensitive environments
    Wide Application

    Wide Application

    22
    2
    Troubleshooting Guide

    Q: How do i know if one of the hard drive is failed?

    If one of the drives is damaged/failed, the corresponding indicator will turn red and the enclosure will make a warning sound(beep).

    Q: How to Replace A Hard Drive?

    For detailed steps, please download the Troubleshooting Guide (PDF) at Product Guides and Documents below.

    Q: How to add a new hard drive into the enclosure?

    For detailed steps, please download the Troubleshooting Guide (PDF) at Product Guides and Documents below.

    Q: Can I connect the device to the computer through a hub?

    We recommend that you connect the device directly to the computer, as the connection may be unstable through a hub.

    Q: Can the sleep mode be cancelled?

    Yes. For detailed steps, please download the Troubleshooting Guide (PDF) at Product Guides and Documents below.

    Q: What are the specification of the fan?

    The diameter is 80mm, the voltage is 12V, and there is no current limit. 2 PIN.

    About this item
    90TB, Enterprise-class Storage Capacity This 5 bay hard drive Case supports 5 hard drives with a max. capacity of 90TB (18TB for single disk). Great for video editing, photo backup, storage of R&D technical documents, archival backup, music libraries, financial records, storage of video surveillance recordings and corporate data storage. With 5 indicator lights to monitor the operating status of each hard drive. Plug-and-play hot swapping.
    Full RAID function, Flexible Storage Solution Yottamaster 5 Bay RAID HDD enclosure is the ultimate storage solution for demanding video workflows on location and in the studio. Supports RAID 0/1/5/10 / JBOD / CLONE/Normal RAID modes; Manage massive amounts of media from multiple cameras on location or in the studio with up to 80TB of RAID storage in one system.
    For 2.5" / 3.5" HDD & SSD Yottamaster 5 bay hdd enclosure designed for both 2.5" SSDs where speed is the priority and for 3.5" HDDs when it's important to maximize the storage capacity. The removable aluminum trays allow for easy installation and replacement of the drives. Your hard drives can be firmly fixed on the tray by provided screws, which can effectively protect your hdds from shock and interface damage.

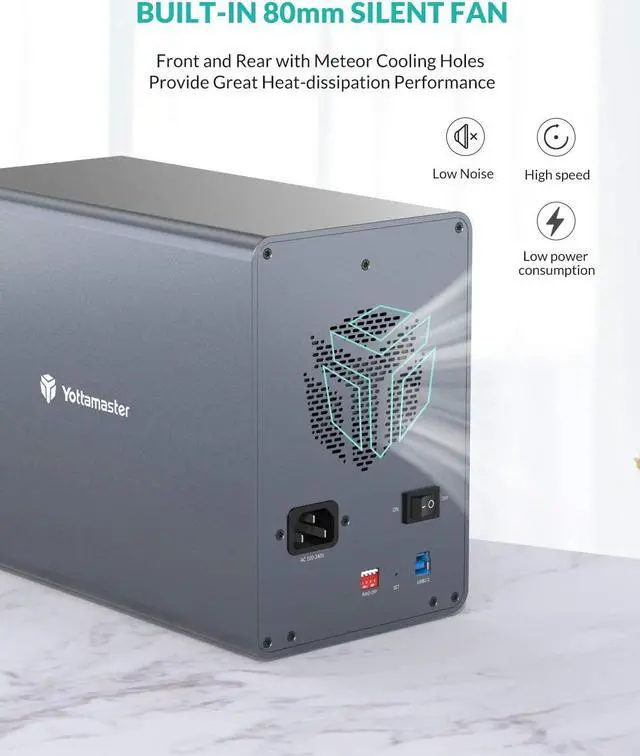

    80mm Silent Fan Inside The 5 Bay USB 3.0 SATA hard drive enclosure is all Aluminum design. Built- in 80 mm silent fan; With front and rear Meteor cooling holes. An ultra durable aluminum casing provides efficient heat dissipation, plus an extra 80mm rear fan accelerate air convection and keeps your drives cool during long hours of operation.
    5Gbps Transfer Rate This 5 bay hard drive enclosure adopt SATA III protocol, Featuring a versatile USB 3.0 interface with a transfer speed up to 5Gbps (MAX) to meet the needs of the flexible storage for demanding workflows. Compatible with most Windows, Linux and Mac systems. meanwhile supported 10mins
    Intelligent Sleep(Note: The Auto-sleep time can be adjusted/canceled. )
