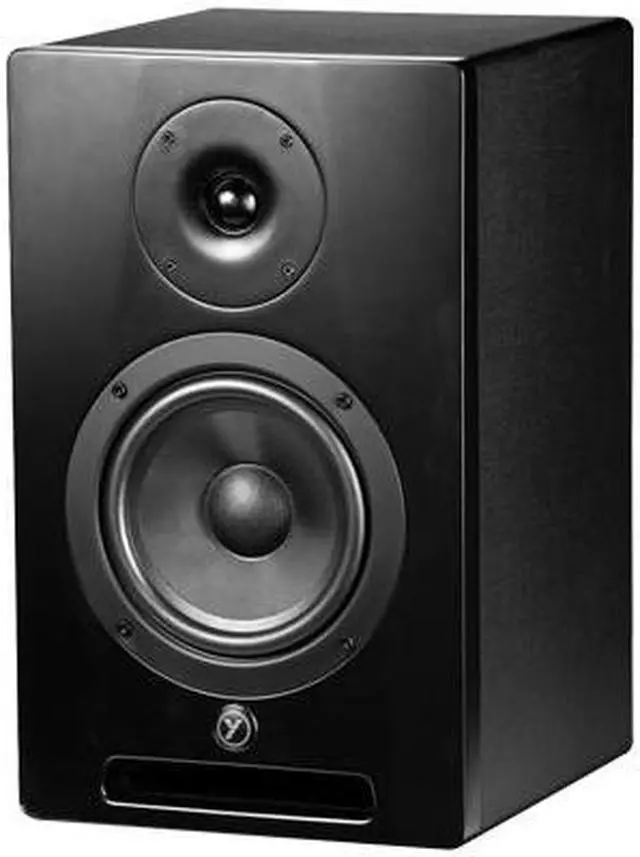

Yorkville YSM6

The Yorkville YSM6 is the ideal workhorse monitor for any home or project studio. The 6.5-inch woofer and 1-inch soft dome tweeter deliver precise reproduction and a large sweet spot for listening in larger spaces. A solid ¾-inch MDF cabinet with reinforced bracing reduces rumble and the contoured baffle virtually eliminates cabinet self-interference. The front facing port design solves the issue of bass coupling with back walls and corners in smaller studio environments which can generate false low-frequency information in your mix.

Compatible with virtually any source, Yorkville YSM6 has a widely variable input trim control making it compatible with any source from direct connection to a soundcard, or connection to a professional console control room output. Four position high and low frequency trim controls (at -2, -1, 0 and +1.5dB) allow user adjustable EQ contour to compensate for speaker placement in less than perfect listening spaces.

Features:
Reproduces source material with near pinpoint accuracy and detail
Contoured MDF baffle engineered to minimize front face reflections
Front facing port design eliminates bass coupling with back walls and corners in imperfect listening environments
Improved phase response provides a wider 'sweet spot' in the listening position
Strategic bracing and ample internal dampening eliminates unwanted low frequency rumble
Biamplified Power Module (50 watts woofer / 18 watts tweeter)
Custom designed soft dome tweeter
High quality low frequency 6.5-inch woofer
Rock-solid 3/4-inch MDF cabinet construction
XLR and ¼-inch TRS balanced inputs
4-position high and low frequency trim controls to optimize response for recording space
Front mounted power switch for added convenience

Specifications:
System Type 2-Way
Active or Passive Active
Program Power (Watts) 68
Biampable Self Powered
Biamp Operation Only Yes
Max SPL (dB) 105
Frequency Response (Hz +/- 3db) 50-20,000
Crossover Frequency (Hz) 2600
HF Driver(s) 1 inch Neodymium soft-dome tweeter
HF Program Power (Watts) 18
LF Driver(s) 6.5 inch Composite woofer
LF Program Power (Watts) 50
LF Protection Thermal / Current Limit
HF Distortion 0.0008
LF Distortion 0.0002
Inputs 1 Combi-Jack
Mixer Controls HF Trim (-2,-1, 0,+1dB) 4-position preset
LF Trim (-2,-1, 0,+1.5dB) 4-position preset
Level Controls Input Gain
Enclosure Materials MDF
Baffle Material MDF
Port(s) Yes - Front
Dimensions (DWH xbackW, inches) 10 x 9.5 x 15
Dimensions (DWH xbackW, cm) 25 x 24 x 38
Weight (lbs/kg) 21 / 9.5
