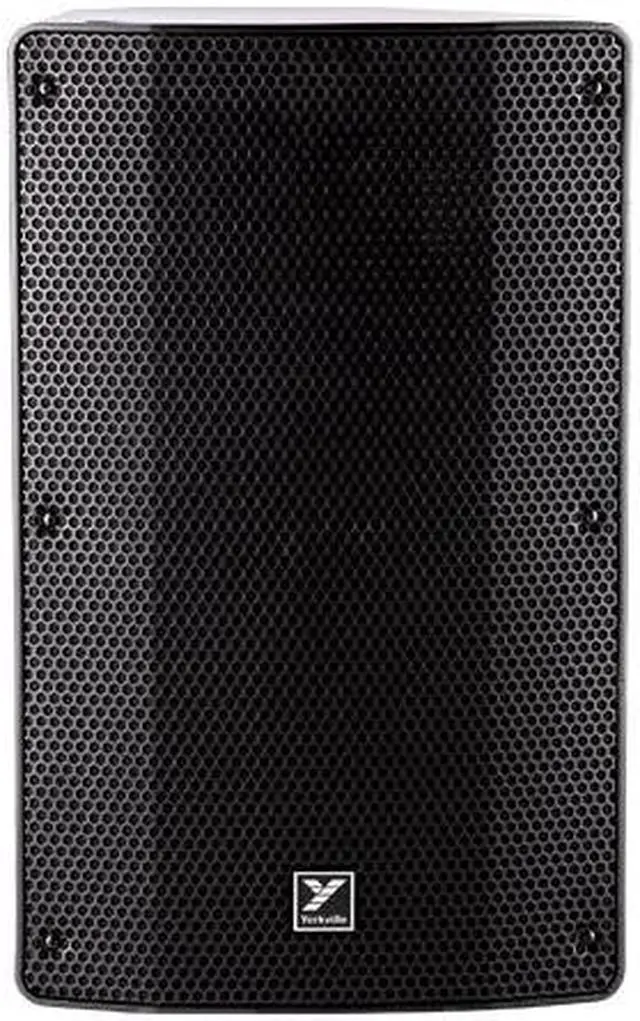

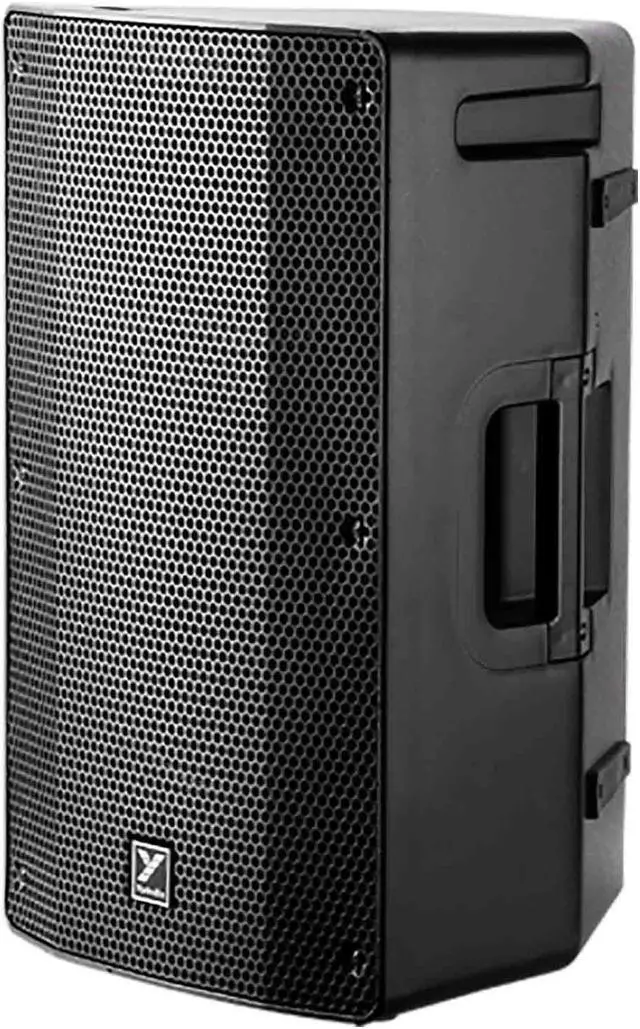

Yorkville YXL12P | 12in - 126dB

The YXL cabinets use a single driver and 90 x 60 degree horn with 1-inch throat and 1-inch compression driver. Constructed from strong Polypropylene, YXL is poised to uphold Yorkville's reputation for reliability and durability. The cabinets can be positioned upright or used as a monitor wedge.



Designed as an all-purpose speaker with the Musician & DJ in mind, each YXL cabinet features 3 channels. The cabinet supports Bluetooth streaming and EQ pushbutton controls for Concert, Club & Monitor modes.



Features:

1000 Watts (Peak) 500 Watts (Program)

12-inch woofer with 2-inch voice coil

3 Channels plus Master level

1-inch compression driver

90° x 60° HF dispersion

Polypropelene cabinet construction

Integrated 3 channel mixer with 2X 1/4", 2X XLR and 1/8" inputs

Bluetooth streaming

3 performance modes (Concert, Club, Monitor)



Specifications:

System Type Active Loudspeaker

Active or Passive Active

Program Power (Watts) 500 Watts Program (1000 Watts Peak)

Max SPL (dB) 126dB Peak

Frequency Response (Hz +/- 3dB) 47 - 16k (Hz +/-3dB)

90 x 40

Crossover Frequency (Hz) 1.6kHz

HF Horn Integrated into Baffle

LF Driver(s) 12-inch (2-inch voice coil)

LF Program Power(Watts) 450 Watts Program (900 Watts Peak)

HF Power Amplifier (Watts) 50

HF Amplifier Type Class A/B

LF Amplifier Type Class D

Cooling Scheme Speed controlled fan

Power Cable Yes

Power Switch Yes

Inputs 2 x XLR, 2 x 1/4", 1/8", Bluetooth and Main in (XLR)

Level Controls x3 Chanels + Master

EQ Controls Push button select, Concert, Club, Monitor

Limiter Multiband excursion, RMS, rail

Other Controls / Features 100 Hz HP with Sub, Mixer IN/OUT, Stereo/Mono out, 3.5mm Aux in, BT streaming

Feet Rubber

Bar Handles 1 x Side / 1 x Back

Flying Hardware 2 (Top), 1 (Pullback)

Optional Flying Hardware Yes

Enclosure Materials Polypropelene, Metal grille

Baffle Material Polypropylene

Grille Powder Coated Steel with Grille Cloth

Other Details Rubber feet on bottom and side with the monitor Wedge

Dimensions (DWH xbackW, inches) 13.5 x 14 x 23

Dimensions (DWH xbackW, cm) 34 x 35.5 x 58.5

Weight (lbs/kg) 35 / 15.9
