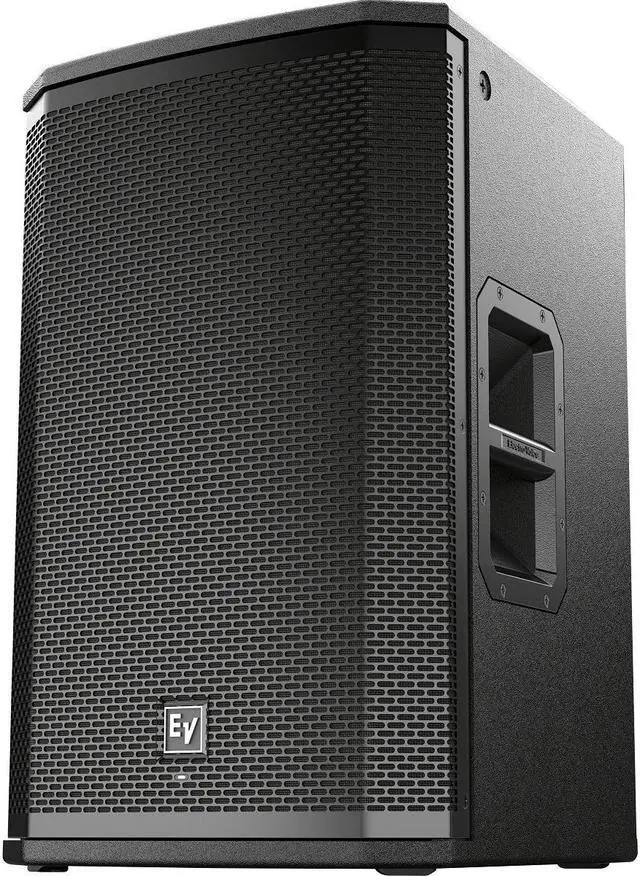

Electro-Voice ETX-12P

EV ETX12P (Electro Voice EXT 12P)

Inside each low-profile, tour-grade wood enclosure are a range of unique new features that set ETX apart, combining intelligent technology and innovative industrial design for spectacular results across all applications. EV-engineered high-efficiency transducers and high-powered Class-D amplifiers, Signal Synchronized Transducers (SST) waveguide design and smart FIR-Drive DSP all work together to provide peerless EV sound quality and precise coverage at the highest SPLs.



12-inch LF SMX woofer

1.25-inch HF titanium compression driver

2000 W Class-D power amplifier with integrated FIR-Drive DSP

135 dB peak SPL



Frequency Range 43 Hz 20 kHz

Maximum SPL 135 peak dB

Power Consumption 100 240 V~, 50 60 Hz, 1.6 0.8 A

Power Rating 2000 W

Frequency Response 55 Hz 20 kHz

Coverage (Nominal -6 dB) H 90 °

Coverage (Nominal -6 dB) V 60 °

LF Transducer SMX2120 300 mm (12 in)

HF Transducer DH3-B 1.25-in titanium compression driver

Crossover Frequency 1600 Hz

Connector Type (2) XLR/TRS combo jack and (1) XLR link output

Enclosure Material 18-mm, 13-ply birch plywood with EVCoat

Grill 16AWG steel with powdercoat

Suspension (8) M10 suspension points

Height 613 mm (24.13")

Width 381 mm (15")

Depth 400 mm (15.75")

Weight Net 23.6 kg (52.03 lbs)

Shipping Weight 26.8 kg (59.08 lbs)
