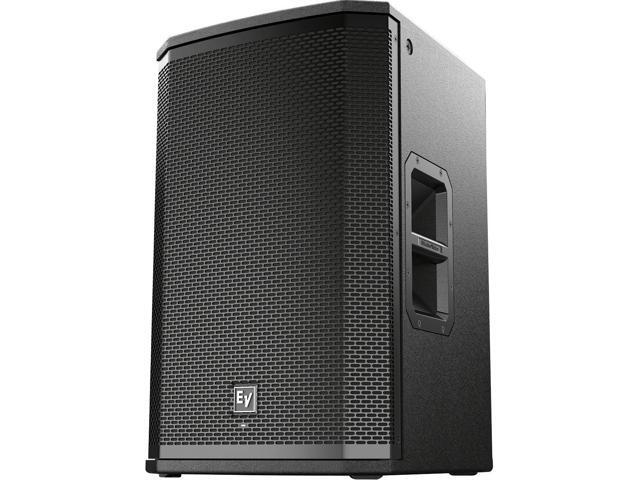

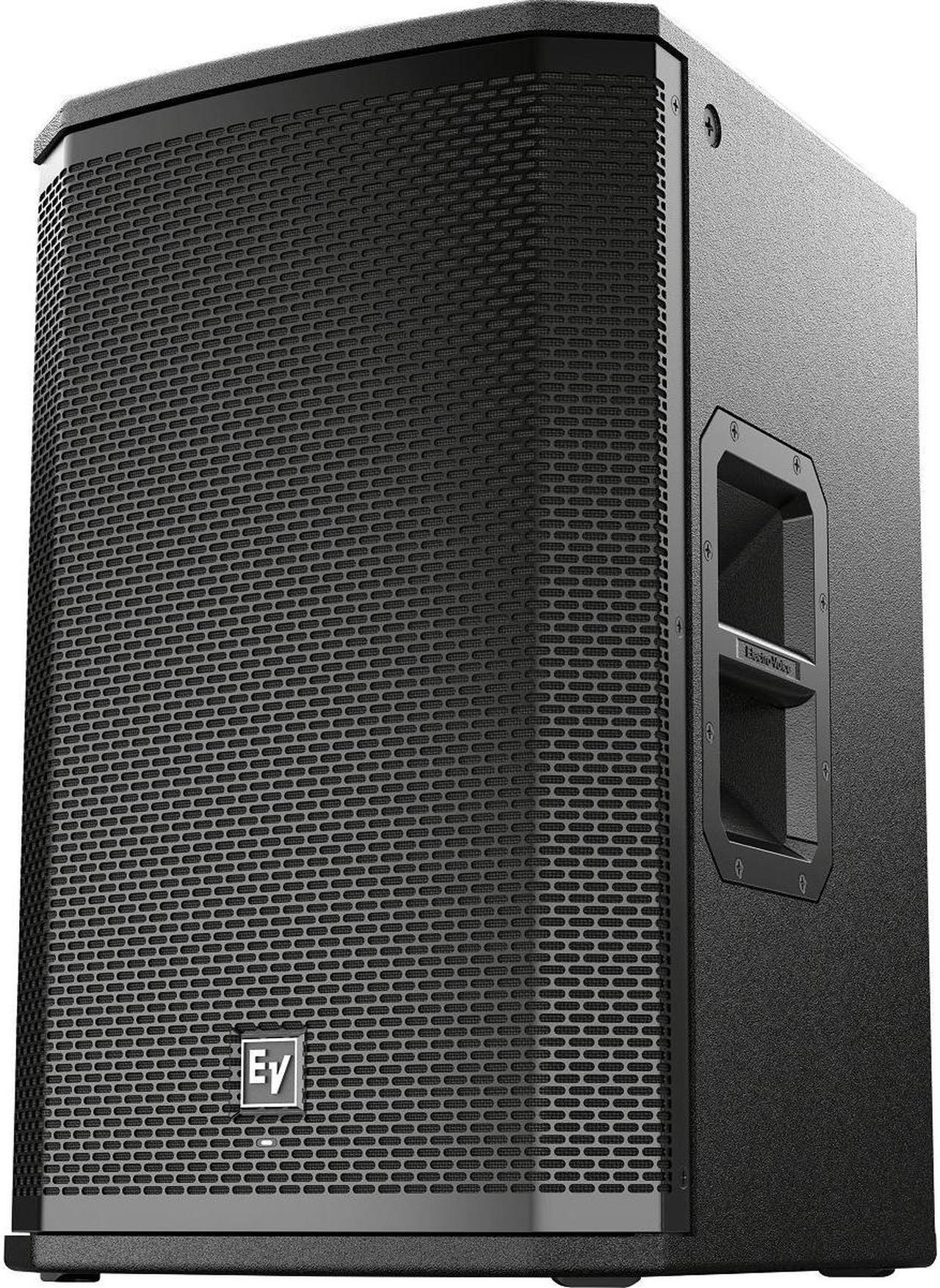

Electro-Voice ETX-12P

EV ETX12P (Electro Voice EXT 12P)
Inside each low-profile tour-grade wood enclosure are a range of unique new features that set ETX apart combining intelligent technology and innovative industrial design for spectacular results across all applications. EV-engineered high-efficiency transducers and high-powered Class-D amplifiers Signal Synchronized Transducers (SST) waveguide design and smart FIR-Drive DSP all work together to provide peerless EV sound quality and precise coverage at the highest SPLs.

12-inch LF SMX woofer
1.25 -inch HF titanium compression driver
2000 W Class-D power amplifier with integrated FIR-Drive DSP
135 dB peak SPL

Frequency Range 43 Hz 20 kHz
Maximum SPL 135 peak dB
Power Consumption 100 240 V~ 50 60 Hz 1.6 0.8 A
Power Rating 2000 W
Frequency Response 55 Hz 20 kHz
Coverage (Nominal -6 dB) H 90 °
Coverage (Nominal -6 dB) V 60 °
LF Transducer SMX2120 300 mm (12 in)
HF Transducer DH3-B 1.25 -in titanium compression driver
Crossover Frequency 1600 Hz
Connector Type (2) XLR/TRS combo jack and (1) XLR link output
Enclosure Material 18-mm 13-ply birch plywood with EVCoat
Grill 16AWG steel with powdercoat
Suspension (8) M10 suspension points
Height 613 mm ( 24.13" )
Width 381 mm (15")
Depth 400 mm ( 15.75" )
Weight Net 23.6 kg ( 52.03 lbs)
Shipping Weight 26.8 kg ( 59.08 lbs)
