RCF Evox J8W | 12in Woofer - 128dB

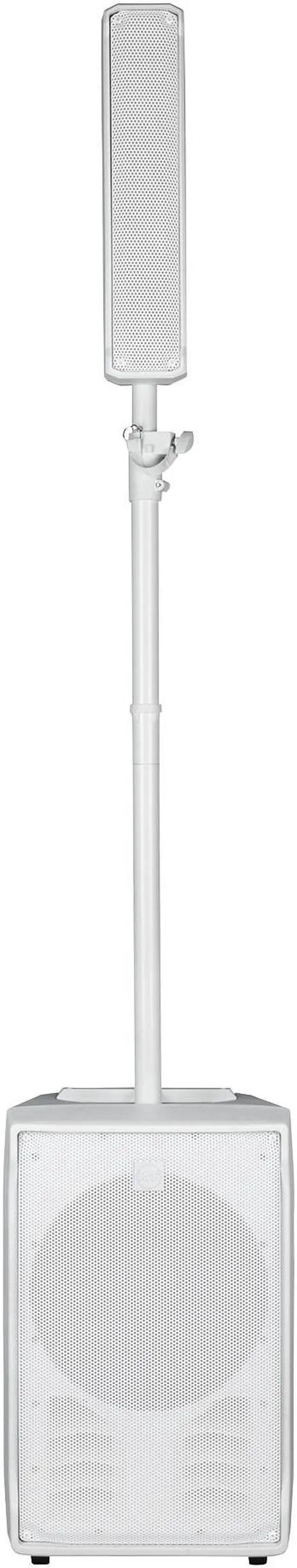

EVOX J8W
ACTIVE TWO WAY PORTABLE ARRAY

The RCF J8W features a line source satellite module with eight 2 full-range drivers paired with a high-powered 12 woofer in a bass reflex enclosure. All powered by on-board 1400 W Class D amplification. The EVOX J Series maintains a similar footprint to the original EVOX systems now in a portable composite enclosure. The system offers stunning sound performance with crystal-clear vocal reproduction and unparalleled musical response.

Features:

128 dB Max SPL
1400 Watt 2-way peak power
DSP Processing with FiRPHASE
12" woofer high power 2.5" voice coil
8 x 2" ultra compact fullrange 1.0" voice coil
2350x350x450 mm 92.5 x 13.77 x 17.71 in (HxWxD)
238/ 52.5 kg/lbs

Specifications

:

ACOUSTICAL SPECIFICATIONS
Frequency Response -3 dB: 40 Hz ÷ 20 Hz
Max SPL: 128 dB
Horizontal coverage angle: 120°
Vertical coverage angle: 30°
Fullrange: 8 x 2.0 \'\' 1.0 \'\' v. c
Woofer: 12\'\' 2.5 \'\' v. c

INPUT/OUTPUT SECTION
Input signal: bal/unbal
Input connectors: XRL Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu

PROCESSOR SECTION
Crossover frequencies: 220 Hz
Protections: Thermal RMS
Limiter: Soft Limiter
Controls: Volume Boost Mic/Line

AMPLIFIER SPECIFICATIONS
Total power: 1400 W PEAK
    High frequencies: 400 W PEAK
    Low frequencies: 1000 W PEAK
Total power: 700 W RMS
    High frequencies: 200 W RMS
    Low frequencies: 500 W RMS
Connections: Convection

CABINET
Cabinet Material: PP Composite
Handles: 1 Top
Pole Mount/Cap: Yes
Grille: steel
Color: White

PHYSICAL SPECIFICATIONS
Height: 623/ 24.53 mm/inch
Width: 400/ 15.75 mm/inch
Depth: 460/ 18.11 mm/inch
Net Weight: 23.8 / 52.47 kg/lbs
