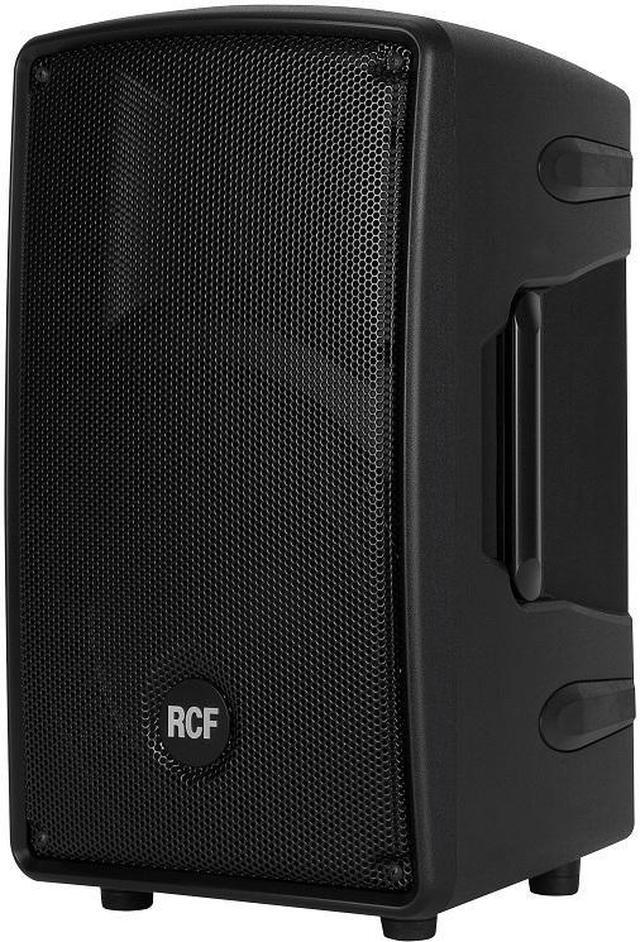

RCF HD12A MK5 | 12in - 130dB

RCF HD 12-A (RCF HD12A)

The HD 12-A offers an extremely linear response and a precise deep low frequency control. The 12 woofer guarantee a superior sound projection indoor and outdoor. It is the ideal speaker for main front of house in small PA systems for high power monitoring and it is the best solution where higher power is required for various applications in larger venues.

FEATURES:

1200 WATT PEAK 600 WATT RMS
Digital Bi-amp
DSP Sound Processing
RCF Precision Transducers
130 dB MAX SPL

ACOUSTICAL SPECIFICATIONS:

Frequency Response -3 dB: 45 Hz ÷ 20000 Hz
Max SPL: 130 dB
Horizontal coverage angle: 90°
Vertical coverage angle: 60°
Compression Driver: 1" 1.7" voice coil
Woofer: 12" 2.5" voice coil

INPUT/OUTPUT SECTION:

Input signal: bal/unbal
Input connectors: Jack-XLR male
Output connectors: XLR female
Input sensitivity: -2 dBu / + 4 dBu

PROCESSOR SECTION:

Crossover frequencies: 1600 Hz
Protections: thermal RMS
Limiter: Fast limiter
Controls: Volume EQ shape Mic/line

AMPLIFIER SPECIFICATIONS:

Total power: 1200 W PEAK
    High frequencies: 300 W PEAK
    Low frequencies: 900 W PEAK
Total power: 600 W RMS
    High frequencies: 150 W RMS
    Low frequencies: 450 W RMS
Connections: VDE AC socket

CABINET:

Cabinet Material: Composite PP
Hardware: 1 x M10 top 1 x M10 bottom 3 x M6 bottom
Handles: 1 top 2 side
Pole Mount/Cap: Yes
Grille: Steel
Colour: Black

PHYSICAL SPECIFICATIONS:

Height: 647/ 25.47 mm/inch
Width: 380/ 14.96 mm/inch
Depth: 380/ 14.96 mm/inch
Net Weight: 16.7 / 36.81 kg/lbs
