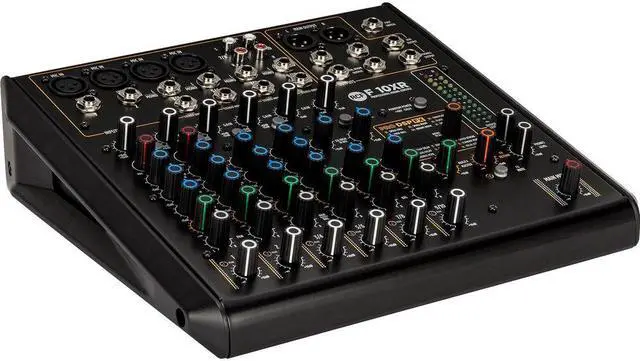

RCF F10XR | 4 Mic, 6 Line - FX & USB | Compact 10-Channel Analog Mixer

Compact Analog Mixer with USB and Effects for Live Sound & Recording The RCF F10XR is a 10-channel analog mixing console built for musicians, DJs, and sound engineers who need high-quality sound and onboard effects in a portable format. With USB audio recording/playback, 16 onboard DSP effects, and a sturdy metal chassis, it's a powerful solution for live performance, rehearsals, and home studio use. RCF F10XR Competitive Differences

• Built-in USB audio interface for 2-track recording and playback
• Onboard PRO DSP FX engine with 16 professional presets
• 4 mic inputs with 48V phantom power and ultra-low noise preamps
• 2 single control compressors on channels 1 & 2
• 3-band EQ on mono channels; 2-band EQ on stereo channels
• Durable all-metal chassis with compact form factor
• Designed and engineered entirely in Italy

RCF F10XR Description The RCF F10XR is part of RCFâ??s next-generation F Series analog mixers, built on the legacy of the E Series but redesigned for modern applications. With 10 total input channels (4 mic, 2 mono line, 4 stereo line), the F10XR provides flexible connectivity for a wide range of sources. The mixer features high-fidelity signal paths with low distortion and full 20 Hzâ??20 kHz frequency response, offering clean, natural sound. Its built-in PRO DSP FX engine provides 16 presetsâ??including reverbs, delays, flangers, and chorusâ??giving performers and engineers tools to enhance any mix. The stereo USB interface allows for easy integration with digital audio workstations for recording and playback. Balanced XLR and 1/4â?� jack outputs deliver professional-grade signal routing for live sound or studio monitoring. The unitâ??s compact footprint and robust design make it ideal for portable use. F10XR Features

• 10-channel analog mixer: 4 Mic, 2 Mono Line, 4 Stereo Line inputs
• PRO DSP FX engine with 16 presets (reverbs, delays, flanger, etc.)
• USB interface with 2-track recording and playback support
• 3-band EQ on mono channels; 2-band EQ on stereo channels
• 2 single-knob compressors (Channels 1 & 2)
• Balanced XLR and Jack outputs
• 1 AUX send and 1 FX send
• +48V phantom power on mic inputs
• External universal power supply (100â??240V)
• Metal chassis with compact, rugged design

F10XR Specifications

• Frequency Response: 20 Hz â?? 20 kHz
• Dynamic Range: >85 dB
• THD+N: <0.02% A-weighted
• Mic Gain Range: 0 dB to -50 dB
• Line Gain Range: 20 dB to -30 dB
• Mic Input Impedance: 14 kΩ
• Stereo Line Input Impedance: 15 kΩ
• Low Cut Filter: 80 Hz
• Main Out Level: 28 dBu
• Aux Out Level: 28 dBu
• Phones Output Impedance: 150 ohms
• EQ Bands (Mono Channels): High ±15 dB @ 10 kHz, Mid ±15 dB @ 1.25 kHz, Low ±15 dB @ 100 Hz
• USB Type: B (2-track In/Out)
• Sample Rates Supported: 44.1, 48.0 kHz
• Footswitch Support: Yes
• Power Supply: External, 100â??240 V, Max Consumption: 18 W
• Chassis Material: Metal
• Dimensions (H x W x D): 3.23 x 11.57 x 10.83 in (82 x 294 x 275 mm)
• Weight: 6.17 lbs (2.8 kg)
• Shipping Dimensions (H x W x D): 5.12 x 15.75 x 13.
