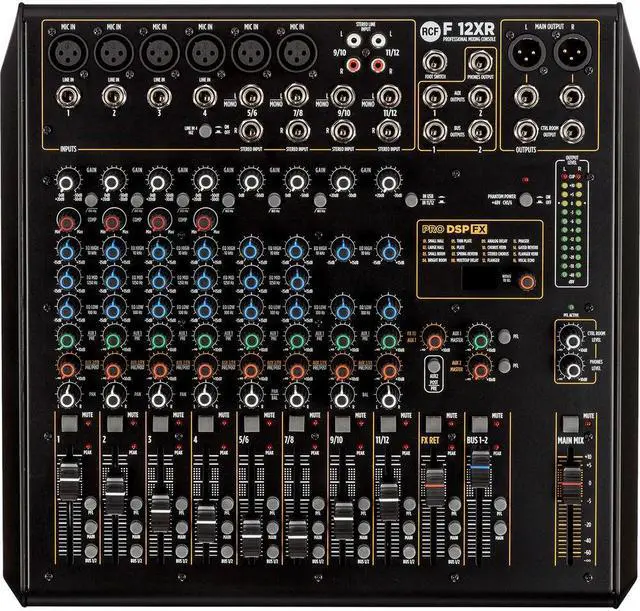

RCF F12 XR | 6 Mic, 4 Stereo FX, USB | 12-Channel Mixer with Audio Interface

Versatile 12-Channel Mixer with USB Audio and Effects The RCF F12 XR is a full-featured 12-channel analog mixer designed for musicians, small bands, and audio professionals needing multichannel mixing, USB recording, and onboard effects in a compact yet robust design. With 6 mic inputs, 4 stereo line inputs, onboard PRO DSP FX, and USB connectivity, itâ??s ideal for both live and studio applications. RCF F12 XR Competitive Differences

• 12 total input channels: 6 mic, 4 stereo, and 1 Hi-Z instrument input
• 16 onboard PRO DSP FX presets: reverbs, delays, chorus, flanger, echo
• USB audio interface for 2-track recording and playback
• 4 single-control compressors for dynamic control on channels 1â??4
• 3-band EQ on mono channels, 2-band EQ on stereo channels
• Balanced audio path from input to output for clean sound
• Sturdy metal chassis and attractive Italian-engineered design
• Internal universal power supply (100â??240V)

RCF F12 XR Description The RCF F12 XR is a powerful analog mixer that blends flexibility, portability, and professional audio performance. Built on RCFâ??s legacy of analog excellence, it features a high-fidelity audio path and intuitive layout designed for musicians, small venues, and streaming setups. With 6 microphone inputs (including phantom power), 4 stereo line inputs, and a Hi-Z input for instruments, the F12 XR covers a wide range of use cases. Its internal PRO DSP engine offers 16 rich-sounding FX presets including hall and room reverbs, multitap delays, chorus, flanger, and echoâ??ideal for enhancing vocals and instruments during live performances. The mixer also includes a built-in USB audio interface for easy 2-track recording and playback with your favorite DAW. Designed in Italy and housed in a rugged metal chassis, the F12 XR is made to perform night after night with consistent, clear sound. F12 XR Features

• Sturdy metal chassis with compact form factor
• 16 onboard PRO DSP FX presets
• USB audio interface for stereo recording and playback
• 4 single-control compressors on mic channels 1â??4
• 3-band EQ on mono channels, 2-band EQ on stereo channels
• Balanced audio path from input to output
• Footswitch compatibility for FX control
• Designed and engineered in Italy

F12 XR Specifications

• Frequency Response: 20 Hz â?? 20 kHz
• THD+N: < 0.02% A-Weighted (20 dB gain, 0 dBu out)
• Dynamic Range: > 85 dB
• Total Input Channels: 12
• Mic Inputs: 6 (Gain: 0 to -50 dB, Impedance: 14 kΩ)
• Low Cut: 80 Hz
• Phantom Power: +48V
• Mono Line Inputs: 4 (Gain: 20 to -30 dB, Impedance: 21 kΩ)
• Hi-Z Instrument Input: 1 (1 MΩ impedance)
• Stereo Line Inputs: 4 (Impedance: 15 kΩ)
• Input Connectors: XLR, 1/4" Jack, RCA
• Main Mix Outputs: 1
• Aux Sends: 1 AUX (PRE/POST), 1 FX POST
• Aux Outputs: 2
• Group Out: 1
• Control Room Out: Yes
• Phones Output: 1 (150 Ω impedance)
• Output Connectors: XLR, 1/4" Jack
• Main / Aux / Group Output Levels: 28 dBu
• EQ (Mono): High ±15 dB @ 10 kHz, Mid ±15 dB @ 1.
