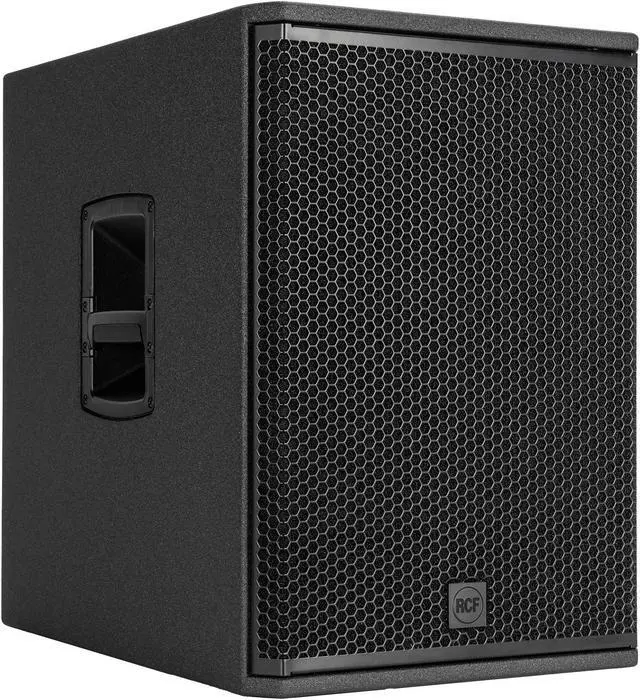

RCF SUB 705AS MK3 | 15 - 131dB | High-Power Active Subwoofer with DSP

The SUB 705-AS mk3 is a portable 15" high-power active subwoofer for live sound applications. It features a state-of-the-art transducer with a high-power ceramic magnetic circuit and a powerful Class-D amplifier that delivers sound pressure levels up to 131 dB with exceptional headroom. Designed as the ideal complement for 10" or 12" loudspeakers, it provides outstanding performance in any application. Rear panel controls include volume, EQ, polarity, and crossover frequency selection. The rugged all-wood cabinet with scratch-resistant polyurea coating makes it durable, easy to carry and install securely. With its versatility, sound quality, and high power output, the SUB 705-AS MK3 is perfect for small to mid-sized venues and portable applications.



FEATURES:



1400 Watt Class-D Amplifier

15 Woofer, bass reflex housing

Stereo Crossover

Switchable Crossover Frequencies

Polarity-reverse switch

Electronic equalization, soft limiter and protection

Stereo XLR input, Stereo XLR signal output

Bass Motion Control excursion management



SPECIFICATIONS:



ACOUSTICAL SPECIFICATIONS

Frequency Response:

40 Hz ÷ 120 Hz

Max SPL @ 1m:

131 dB

TRANSDUCERS

Woofer:

15'', 3.0'' v.c

INPUT/OUTPUT SECTION

Input signal:

bal/unbal

Input connectors:

XLR

Output connectors:

XLR

Input sensitivity:

-2 dBu/+4 dBu

PROCESSOR SECTION

Hi-Pass Frequencies:

110 Hz

Low-Pass Frequencies:

80 Hz

Protections:

Thermal, RMS

Limiter:

Soft Limiter

Controls:

Volume, EQ, Phase, Xover

POWER SECTION

Total Power:

1400 W Peak, 700 W RMS

Low frequencies:

1400 W Peak, 700 W RMS

Cooling:

Convection

Connections:

VDE

STANDARD COMPLIANCE

Safety agency:

CE compliant

PHYSICAL SPECIFICATIONS

Cabinet/Case Material:

Baltic birch plywood

Handles:

One each side

Pole mount/Cap:

Yes

Grille:

Steel with clothing

Color:

Black

SIZE

Height:

598 mm / 23.54 inches

Width:

420 mm / 16.54 inches

Depth:

590 mm / 23.23 inches

Weight:

27.5 kg / 60.63 lbs

SHIPPING INFORMATION

Package Height:

648 mm / 25.51 inches

Package Width:

638 mm / 25.12 inches

Package Depth:

478 mm / 18.82 inches

Package Weight:

32.4 kg / 71.43 lbs
