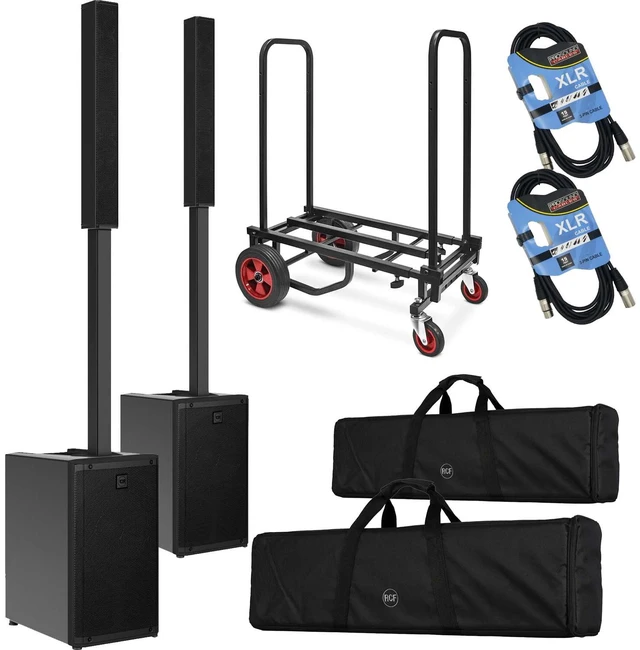

(2) RCF EVOX J9 Active 3-way 2100W Column Array (Black) - Pyle Compact Dolly - (2) XLR Cables Bundle

The RCF EVOX J9 is an active 12" 3-way 2100W portable line array PA system designed to deliver powerful sound projection for musicians, presenters, and DJs in clubs, parties, and live stage applications. Class-D amplification pumps 1400W through a 12" high-excursion woofer and 700W to the six 3" full-range drivers and 1.75" neodymium compression driver. A total of 2100W result in an SPL of 130 dB with a frequency response of 20 kHz down to 40 Hz. The system design produces a 120° horizontal by 40° vertical coverage pattern. Connectivity includes a combo XLR-1/4" input and an XLR output. The adjustable pole mount offers simple height positioning of the satellite speaker unit, which conveniently stores in the included padded bag. A standard IEC power cord is also included.
Benefits
130 dB max SPL
2100W Class-D amplifierbuilt-in DSP
1.75 neodymium compression driver120 x 40° true resistive waveguide
6 × 3 full-range neodymium transducers
12" RCF precision low-frequency woofer
Enhanced coverage and clarity
Composite cabinet with aluminum stand mount
Sleek, road-ready design
Dual-height configuration
Top speaker padded carrying bag included
Optional sub padded cover
Fast Transients. Zero Compromise.
Powered by a 2100W onboard Class-D amplifier, EVOX J9 delivers an impressive 130 dB Max SPL output. Three equalization presets are available: Live/Linear for perfectly flat, neutral output; Club for extended lows and crisp highs; and Voice for optimized intelligibility.
Highly energy-efficient, the J9 requires no cooling fan. The amplifier is mounted on a solid aluminum heat exchanger at the rear of the unit and has no moving parts. Mechanically coupled to the internal frame, the amplifier is securely braced within the cabinet for long-term reliability.
The input stage features a new low-distortion design with an advanced safety limiter that preserves the input signal's character at any level. EVOX J9 amplifier is designed in accordance with EN 62368-1 for maximum safety and feature a switch-mode power supply (SMPS) that combines high efficiency with minimal weight.
True 3-Way Design
Neodymium compression driver (1.75 voice coil, Kapton dome) with a True Resistive Waveguide (TRW) for a resonance-free load and constant, 120 X 40° coverage.
The forward radiation of the array of 6x3 neodymium drivers, combined with the centered waveguide, delivers a balanced point-source response.
12 RCF transducer provides deep, controlled low frequencies, ideal for bass-heavy music and high-energy performances.
SUB AX ACE Presets for EVOX J
When extended, impactful low-end is required, simply add an RCF subwoofer. ACE-enabled models, starting from the SUB AX Series, include dedicated integration presets for EVOX systems, ensuring perfect tuning at the touch of a button. RCF's Advanced Crossover Engine (ACE) precisely adjusts time delay and phase to optimize power and impact of the system.
Variable Height Configuration
Refined design, premium-grade materials, and ergonomic details that maximize portability while preserving the EVOX family's sleek, familiar look. An included lightweight aluminum-alloy distance pole with integrated connections separates the top from the subwoofer; an optional half-size pole extension is available. The heights of J9 and JMIX9 are configurable, ranging from a zero-offset (column array attached to the bass enclosure) to a combination of full-length and half-length poles.
Quick Setup. Ready to Play
EVOX J9 includes a lightweight aluminum-alloy pole that links the column to the subwoofer and integrates all required connections for fast setup. Height is configurable: mount the column at standard height with the full-length pole, place it at zero offset directly on the bass enclosure, or raise it with full- or half-length pole extensions.
Ready for the Road
Every EVOX system includes a padded column transport bag for
