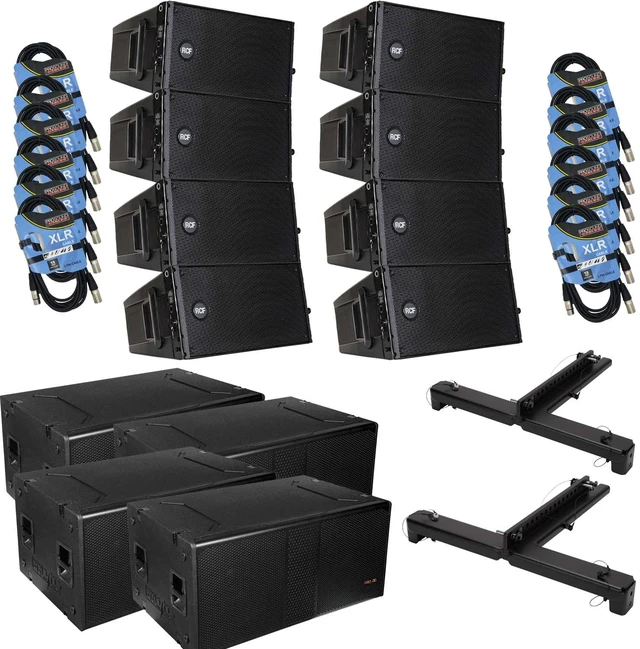

(8) RCF HDL 10-A 1400W Dual 8 Active Line Array - (2) RCF FL-B HDL 10 - (4) Pro DG S218A Dual 18" Powered Sub - (12) XLR Cables Bundle

The HDL10-A Active Line Array Module from RCF is designed for use in live sound reinforcement and installed situations. The system is powered from a 1400W peak power two-way digital amplifier (400W for the HF and 1000W for the LF), and sound is processed from a powerful DSP. The system features two 8" low-frequency transducers with a 2" voice coil for a solid bass reproduction, and a large-format 2" compression driver to deliver vocal clarity and high definition. The custom-designed waveguide allows a coverage of 100 x 15°, whilst also delivering linear high-frequency response. The ND 640 compression driver's 2.5" voice coil allows a crossover point of 800 Hz, which allows a wide vocal range to be produced by this driver. The DSP also includes presets for indoor/outdoor usage and highly curved arrays. The back-panel controls allow a number of simple optimizations to be carried out: two possible HF settings, four possible cluster configurations, an EQ setting for high-curved configurations, and an Indoor Correction EQ. A volume knob allows to set the overall volume of the speaker, according to its application. This unit provides Power, Signal, and Status LEDs for monitoring the system. The HDL10-A features configurable mechanic; angles between cabinets are selectable with 2° resolution and allow the system engineer to create J-shaped or spiral arrays. HDL10-A cabinets are molded on a polypropylene composite material designed to dampen-down vibrations, even at maximum volume settings. The module is equipped with two aluminum side handles with a rubber handgrip for portability. The system is equipped with a heavy-duty fly bar. The steel construction mechanics make it possible to fly up to 16 modules in daisy chain manner.

• Provides up to 1400W of power (700W RMS)
• Two 8" woofers
• One 2" compression driver
• DSP controlled input section with selectable presets
• Tour-grade safe and solid variable mechanics
• Wooden reinforced composite PP enclosure

Applications:

• Live sound
• Rental
• Portable PA, clubs, ballrooms, and live theatre
• Theme parks
• Music playback and sound reinforcement in small and midsize venues
• Corporate A/V professionals and sound system hire companies

UPC: 8024530010850
