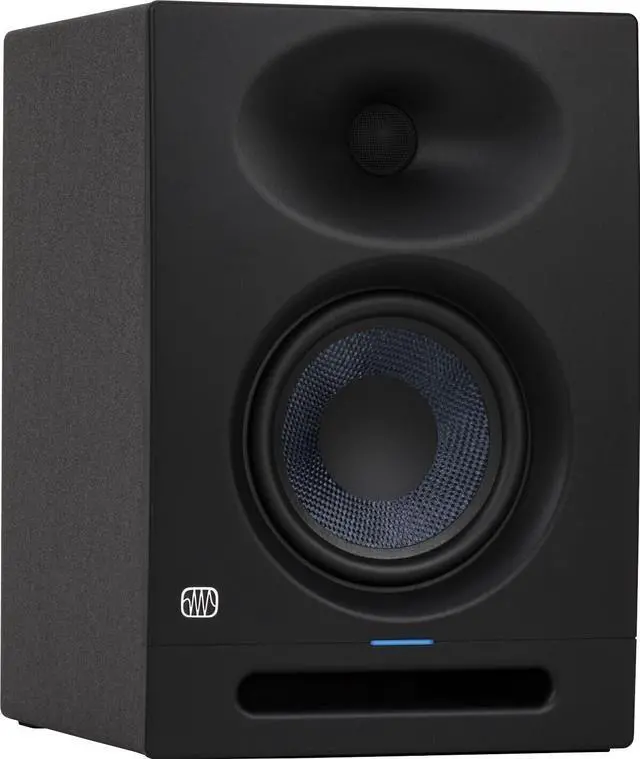

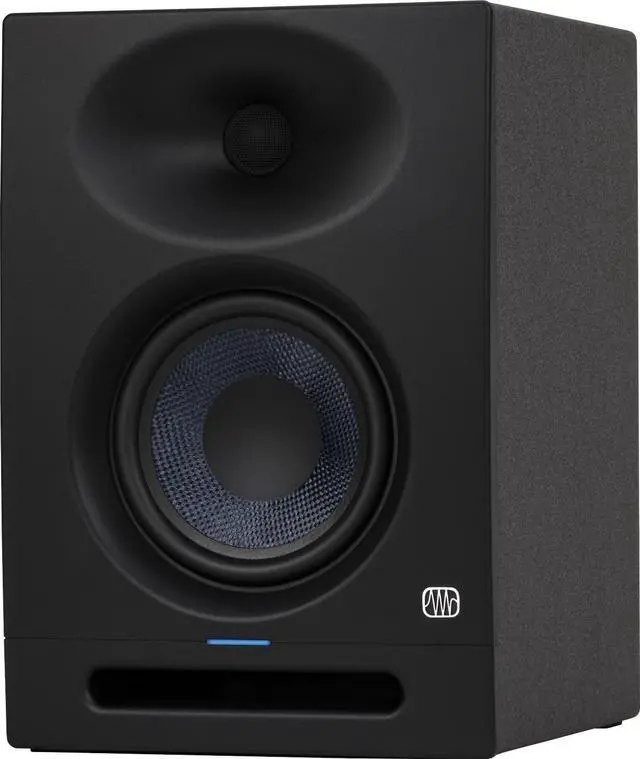

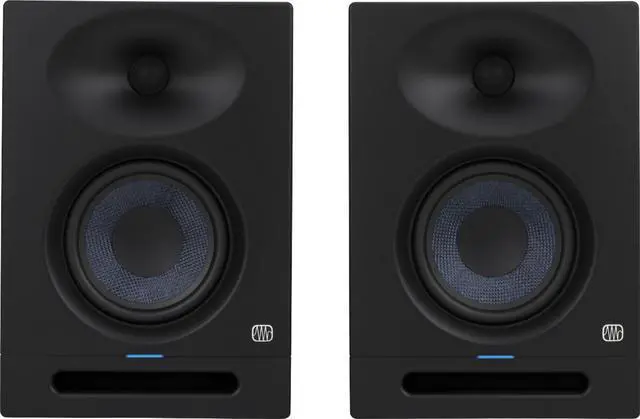

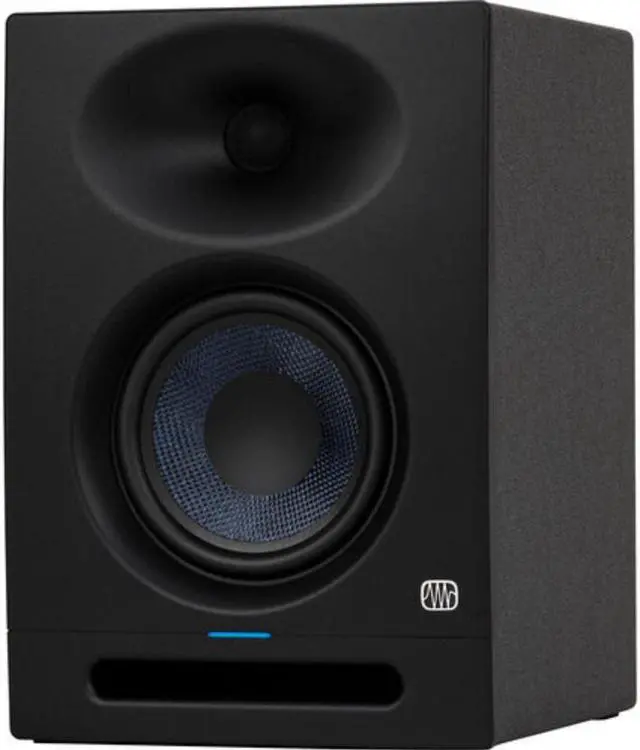

Presonus ERIS STUDIO 5

Audio engineers, producers, and musicians looking for a professional studio monitor with a wide stereo image will be impressed with the single PreSonus Eris Studio 5, an active 2-way studio monitor which provides an expanded and highly accurate frequency response and a wide stereo field, thanks to the custom-designed EBM (Elliptical Boundary Modeled) waveguide, which provides a broad sweet spot. This compact studio monitor is well suited in both home studios and professional mix rooms.

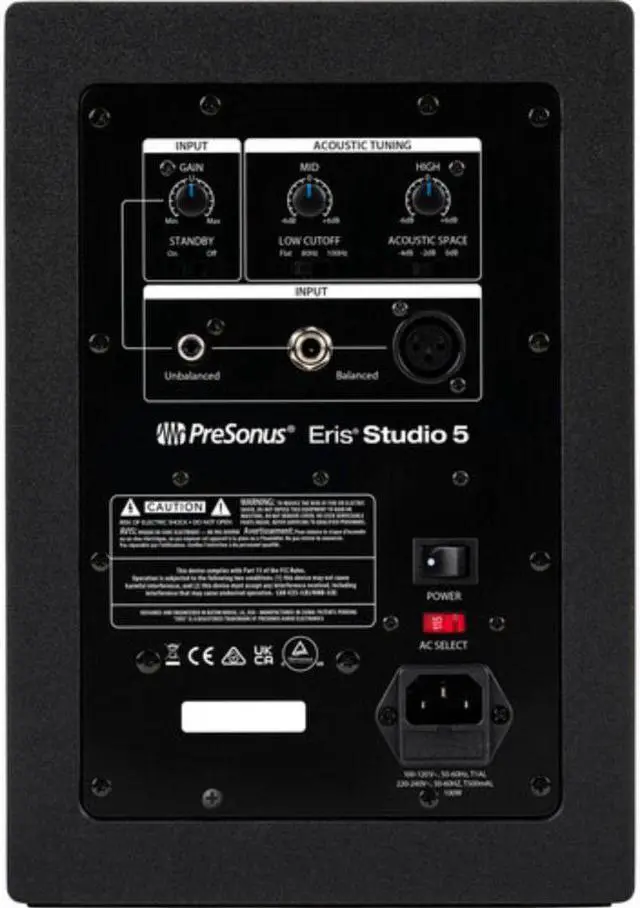

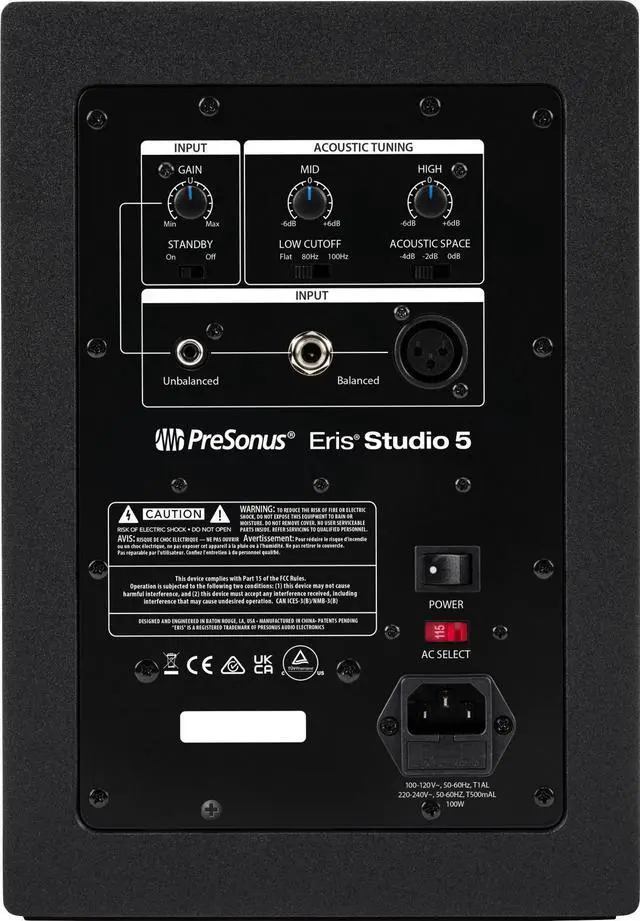

Two Class-AB amplifiers deliver 45W to the 5.25" woven composite woofer and 35W to the 1" silk dome tweeter, which offers a snappy, accurate transient response. The monitor offers a frequency response from 20 kHz down to 48 Hz for a full-range sound with plenty of volume (102 dB SPL). The rear panel provides acoustic tuning controls including a three-position Acoustic Space switch that helps compensate for the boundary bass boost that can occur when a monitor is placed in a corner or near a wall. High and Mid controls help to further mitigate room anomalies, while a low cutoff filter makes it easy to integrate a subwoofer into your monitor setup.



Key Features at a Glance

• 5.25" woven composite low-frequency driver


• 1" ultralow mass, silk-dome, high-frequency driver


• Crossover Frequency, 3.5 kHz


• 100 x 60° EBM waveguide provides a sweet spot


• Front-firing acoustic port for superior bass-frequency reproduction and optimized, resonance-suppressing internal bracing


• 80W, Class AB dual amplification


• 48 Hz to 20 kHz frequency response


• 102 dB Peak SPL (at 1 m)


• Acoustic Tuning Controls:


• Acoustic Space (Flat, -2 dB, -4 dB)


• High Frequency (±6 dB, center 10 kHz, continuously variable)


• Mid Frequency (±6 dB, center 1 kHz, continuously variable)


• Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)


• Inputs: XLR and 1/4-inch TRS balanced rear-panel inputs ; RCA unbalanced rear-panel inputs


• RF interference


• Output-current limiting


• Over-temperature


• Turn-on/off transient


• Subsonic filter


• Power Saver mode (engages after 40 minutes)

Box Contains

Presonus ERIS STUDIO 5


• 1 x Power Cord
