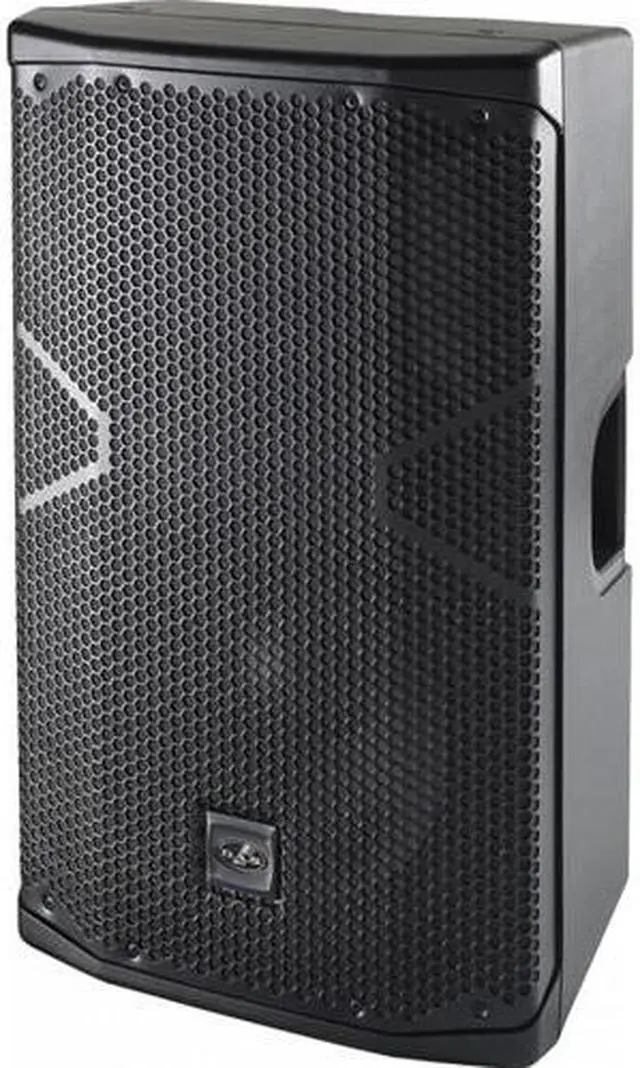

DAS Altea 712A | 12in - 130dB

ALTEA-712A
2-way Powered Point Source

The ALTEA-712A is a high-powered model from DAS Audios ALTEA Series. It is equipped with a 1500 Wpeak Class D two-channel amplifier that provides extended bandwidth wide dynamic range and exceptionally low distortion. Digital Finite Impulse Response (FIR) filters are used in the signal processing of the ALTEA 712A system.
The DAScontrol interface allows users to configure voicing presets input/output levels EQ modes delay and source mixing by way of a high-end 24-bit quality DSP and LCD screen on the rear of the cabinet. The remote control and monitoring APP DASlink of the ALTEA-700 series powered systems allows users to wirelessly stream music from mobile devices in high-definition stereo.

The high-performance transducers include the DAS 12F4 loudspeaker which provides accurate low frequency reproduction with a deep powerful bass. High frequencies are handled by the brilliant M-28 FEM optimized compression driver with 1? exit providing exceptional performance and smooth reproduction.

Features:
Multi-purpose system with monitor position
Ultra lightweight Class D amplifier with SMPS
Stereo music streaming in high definition
User definable 24-bit DSP with LCD screen
5 voicing presets
User-definable memories
Stackable 3-band EQ
Standby Mode
Rigging points

Applications:
Concerts and corporate A/V
Portable and live clubs
Theaters and auditoriums
Houses of worship

Frequency Range (-10 dB) 60 Hz 20 kHz
Horizontal Coverage (-6 dB) 90º
Vertical Coverage 60º
Maximum Peak SPL at 1 m 130 dB

Electronics and Connectors
Nominal Amplifier Power (continuous) 750 W
Nominal Amplifier Power (peak) 1500 W
Input Type Balanced
Input Impedance 20 kohms
Input Sensitivity 1.95 V (+8 dBu)
Audio Signal Input Connector 2 x Female XLR
AUX Input 1 x 3.5 mm Mini Jack
Audio Signal Loop Thru Connector 1 x Male XLR
Control DASlink
DAScontrol
Recommended Signal Processing a: 0: {}
AC Input Connec
