LD Systems U304.7 BPL

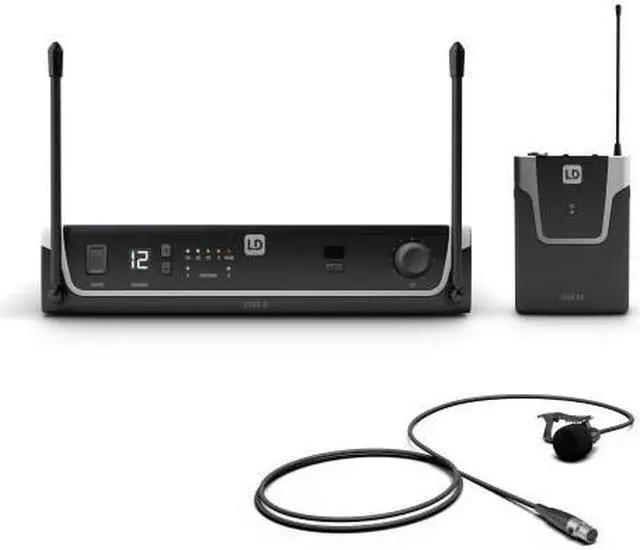

LD Systems U304.7 BPL Wireless Microphone System with Bodypack and Lavalier Microphone - 470 - 490 MHz



Developed in Germany, the UHF diversity radio systems of the U300 series offer impressive audio performance. They achieve a range of 100 m under ideal conditions. Six U300 systems can be used simultaneously. A convenient one touch synchronization of transmitter and receiver via infrared is used for fast, problem free radio connection, and the squelch with pilot tone ensures a fail safe function.



U300® transmitters have a 10 mW output and an operating time of 10 hours on two AA batteries. The handheld microphones frequency response ranges from 55 Hz to 16 KHz. With a lower cut-off frequency of 25 Hz, the bodypack is also suitable for transmitting 5-string bass guitars with a deep H string. The bodypacks input level can be adjusted to both active and passive guitars and basses over three levels. The power switch features a handy standby mode for temporary muting. The U300® receiver is fitted with a bright LCD channel display, an LED chain for displaying audio signal strength and both a balanced XLR and an unbalanced 6.35 mm audio output. The audio output can also be switched to instrument level for directly connecting to guitar and bass amplifiers.



U300®-series wireless systems feature a fresh, modern design and are available as vocal sets with receiver and dynamic handheld microphone with cardioid characteristic, bodypack and headset or bodypack and lavalier microphone. The microphone characteristic can be changed using U500®-series replaceable heads. U300® instrument sets are available with bodypack and clip-on microphone for wind instruments or a double-shielded low-capacitance cable for guitars and basses.



Features:



UHF diversity wireless system with FM technology

12 selectable channels

100 metre range under ideal conditions

Up to 6 systems can be used simultaneously

ASC infrared synchronisation between transmitter and receiver

Squelch with pilot tone

10-hour transmitter operating time with two AA batteries

Receiver in sturdy metal housing

Optional rack mounting kit as accessory





Specifications:



LDU3047R - LD Systems U304.7 R Receiver

Product type Wireless Microphone System Accessories

Type Receivers

Modulation Type FM

Channels 12

Weight 0,7 kg

Groups 1

Antenna inputs2 x fixed

Frequency response25 - 16.000 Hz

Noise reduction Squelch

Transmission optimization Pilot tone

Total Harmonic Distortion (THD)< 0.3 %

Signal-to-noise ratio 104 dB

ControlsASC , Channel down , Channel up , Line/Instrument Level , Power , volume

Indicators5 LED VU meters , Antenna A/B , LC display

Audio output, balanced XLR

Operating voltage 12 V DC - 18 V DC (500 mA), external power supply

Audio output, unbalanced6.3 mm jack, switchable unbalanced output level

Width211 mm

Max. output level+10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu

Height 43 mm

Depth 120 mm

Other features IR frequency synchronization

Accessories (included)2 x AA batteries , Audio cable , Power supply



LDU3047BP - LD Systems U304.
