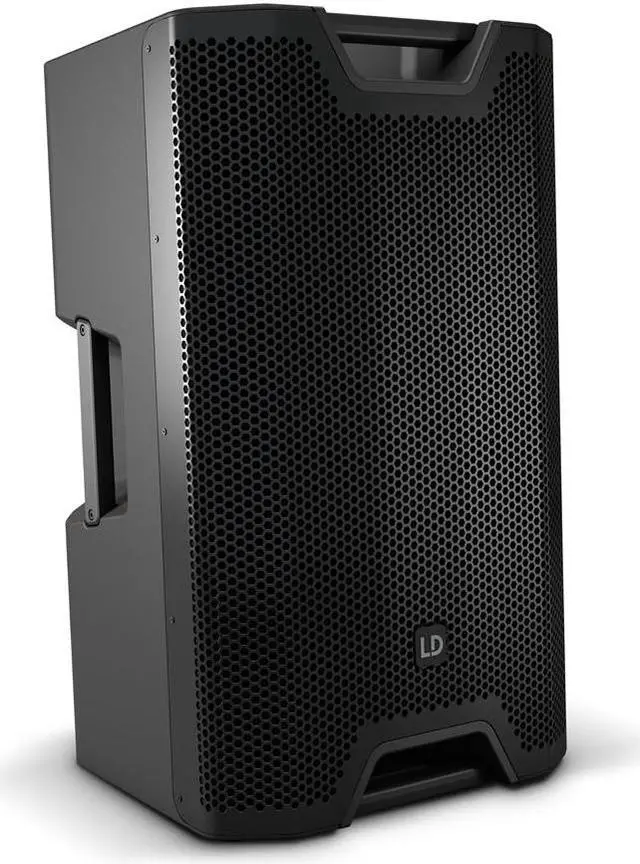

LD Systems ICOA 15A | 15in - 128dB Powered Coaxial Speaker | Horn-Loaded Woofer with DynX DSP

Powered Coaxial PA Speaker LD Systems ICOA 15A is a versatile 15-inch powered loudspeaker designed for flexible use as a full-range speaker, monitor, or satellite. Its coaxial design with a rotating BEM-optimized CD horn ensures even sound distribution whether positioned vertically or horizontally, making it a powerful and adaptable tool for performers, DJs, and venues alike. LD Systems ICOA 15A Competitive Differences

• Horn-loaded woofer with deep bass response
• Rotatable coaxial CD horn for vertical and horizontal use

LD Systems ICOA 15A Description The LD Systems ICOA 15A delivers impressive audio performance with a 15" ferrite woofer and 1" HF driver arranged in a coaxial configuration. This setup allows for precise coverage control and consistent sound, whether it's used on a pole, flown, or as a floor monitor.

Thanks to its 1200W peak class-D amplifier, the ICOA 15A reaches 128dB SPL, providing enough headroom for live bands, DJs, and mobile entertainers. The integrated DynX DSP engine includes four user presets, a 3-band EQ, and a delay function, making it easy to tune the system to your environment or personal preference.

Two mic/line inputs with individual gain controls and a mono mix output enable simple setup without the need for a mixer. Bluetooth® streaming is also available in the BT version (not included with standard ICOA 15A). A rugged, shock-resistant front grille, 36mm dual-tilt stand mount (0° or 5°), and 55° monitor angle ensure that the speaker is ready for any configuration.

Installation is simplified with six integrated M10 fly points, and ergonomic rubber-coated handles make transport comfortable and secure. Optional accessories are available for even greater flexibility.

Model Features

• 15" coaxial powered PA loudspeaker
• Rotatable BEM-optimized CD horn (90° x 50°)
• DynX DSP with presets, EQ, and delay
• Horn-loaded woofer for extended low-end
• 2 mic/line inputs with gain control and mono mix out
• Dual-tilt 36mm pole mount (0° or 5°) and 55° monitor angle
• Shock-resistant grille and durable polypropylene housing
• 6 x M10 rigging points for flown installation

Model Specifications

• Max SPL: 128dB
• Power Output: 1200W Peak / 300W RMS
• Frequency Response: 48Hz 20kHz
• Dispersion: 90° x 50°
• Dimensions: 27.4 x 16.4 x 16.3 in (695 x 416 x 415 mm)
• Weight: 53.6 lb (24.3 kg)

What's In The Box

• LD Systems ICOA 15A Speaker
• Power cord
