LD Systems U505 BPL

U505 BPL

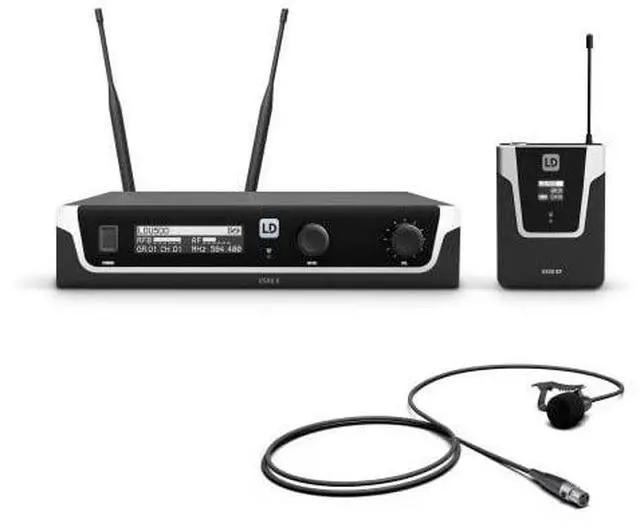

Wireless Microphone System with Bodypack and Lavalier Microphone - 584 608 MHz.



The U500® Series vocal sets were developed in Germany to bring you affordable professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience.



Selectable transmit power up to 30 mW provides the U500® vocal sets with a free-field range of over 100 meters. 12 systems can be operated simultaneously. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronization of transmitter and receiver to facilitate easy set up.



High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitters silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artifacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.



The U500® Series vocal sets are available with hand-held transmitters, headsets, lavalier microphones and single or double receivers. The hand-held transmitters feature interchangeable microphone capsules to suit singing or speaking.



Features:



Item No.: LDU505BPL

True diversity UHF wireless system

Shock-mounted dynamic and condenser microphone capsules

Automatic channel scan

Easy one-touch infrared frequency syncing

Pilot tone squelch circuit prevents noise

Switchable RF transmitter output (2, 10 or 30 mW)

Rugged enclosures

High-contrast OLED display



Specifications:



Product type Wireless Microphone Systems

Type Set

Transmission frequency range 584 - 608 MHz

Weight 2,46 kg



LDU505R - LD Systems U505 BPL Receiver

Product type Wireless Microphone System Accessories

Type Receivers

Modulation Type FM

Frequency response 30 - 16000 Hz

Channels 96 (8 groups of 12 channels)

Groups 8

Antenna inputs 2

Antenna connector BNC

Signal-to-noise ratio > 100 dB

Noise reduction Squelch

Total Harmonic Distortion (THD) < 0.3 %

Controls volume

Audio output, balanced XLR

Operating voltage 12 - 18 V DC

Audio output, unbalanced 6.3 mm jack

Width 212 mm

Accessories (included) power adapter

Height 44 mm

Depth 159 mm

Weight 0,85 kg

Max.
