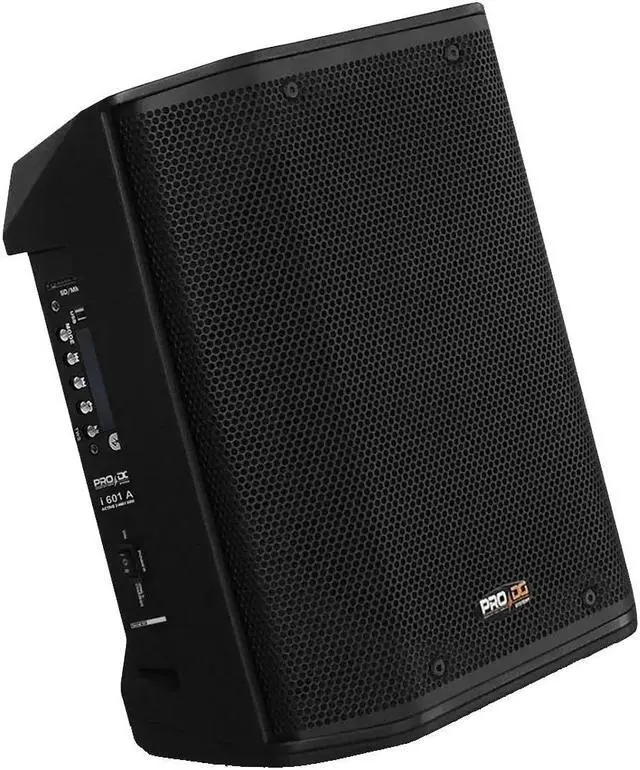

PRO DG I 601 A 300 Watts Pro Compact All-in-One Battery-Powered System

The new model i 601 A from Pro DG Systems is an unique multipurpose system on the market thanks to its great versatility and unbeatable performance-price ratio. It includes a 6.5 coaxial speaker for low and mid frequencies reproduction with a 0.8 dome tweeter for high frequencies reproduction which allows it to develop a superior performance and acoustic quality than larger and more expensive multipurpose systems. Ultra-compact, portable and extremely versatile. The acoustic enclosure of the new i 601 A has been carefully designed to offer a minimal visual impact with a weight of only 5.9K g, its upper part inserts a handle for easy transport.

It incorporates a rechargeable lithium-ion battery with a capacity of 1300 mAh which offers up to 4 hours of autonomy. It has LEDs on its rear connection plate to indicate the level of charge available. Its construction allows it to be installed vertically on a flat surface, pole mount, tilted-back (30º angle), as well as horizontally as a floor monitor (45º angle). Bracket for wall or ceiling installation is also available.

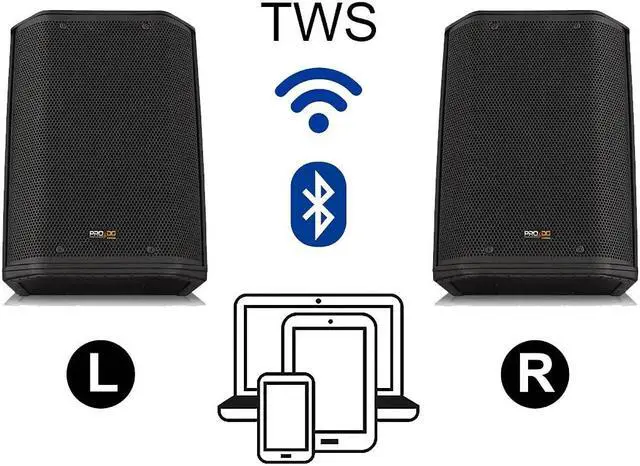

Everything under control without the need of technical knowledge, it has a LCD control screen, master control of volume level and independent equalization of treble and bass. Maximum connectivity capacity thanks to the incorporation of 2 XLR / Jack input channels with mic & line switch + XLR Link with independent output volume control. It also incorporates USB player, SD / MMC card player and MP3 player. It has Bluetooth connection to play music through the PC, phone or tablet and TWS function (True Wireless Stereo), which allows to synchronize a second unit i 601 A unit via Bluetooth to play music in stereo.

Ready to use; i 601 A incorporates last generation Class-D amplification and sound card. In resume, the new model i 601 A from Pro DG Systems is a true all-terrain system ideal for all types of applications of semi-professional use, from sound source for domestic use, portable system for small events or point source for installation or sound reinforcement.


Power Handling: 80 W RMS (EIA 426A Standard) / 160 W program / 320 W peak
Nominal Impedance: 4 Ohm.
Average Sensitivity: 95dB / 2.83V / 1m (average of 80- 16.000 Hz wideband)
Maximum SPL Calculation: / 1m 98 dB continuous / 101 dB program / 104 dB peak
Frequency Range: +/-3 between 60 Hz 18 kHz
Nominal Directivity: 120° of horizontal coverage, 90° of vertical coverage
Low / Mid Frequency Driver: One (1) 6.5 coaxial speaker with 0.8 dome tweeter
Controls: LCD control screen, master control of volume level and independent
equalization of treble and bass, Independent output volume control,
Bluetooth and TWS function
Amplifier: last generation Class-D amplifier.
Rigging Points: 2 x M8.

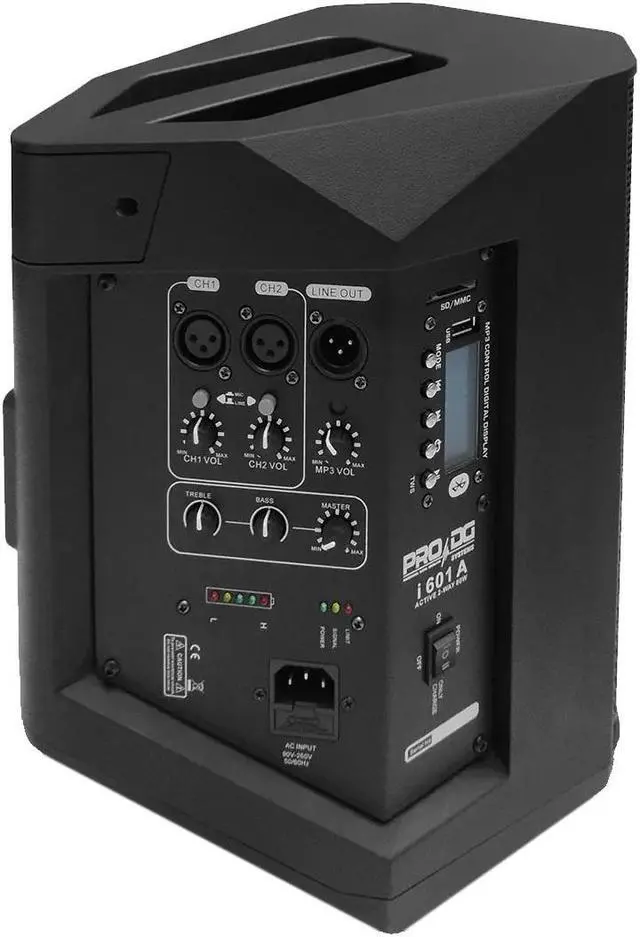

Connectors: 2 XLR / Jack input channels with mic & line switch + XLR Link.
USB player, SD/MMC card player and MP3 player & TWS function.
Power Supply: 110~240V 50/60HZ.
Battery: Rechargeable Lithium-ion battery 1300mAh. Up to 4 hours of use in
normal volume
Acoustic enclosure: Reinforced polypropylene plastic
Finish: Special paint finish in black
Grille: 1.5 mm thickness metal grille with 0.5 mm acoustic foam
Mounting options: 35mm pole mount, Tilt-back (30° angle), Floor Monitor (45° angle),
Wall or ceiling mount with bracket

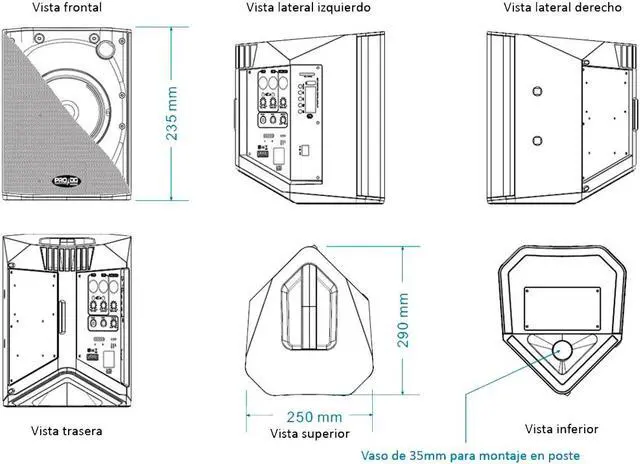

Dimensions: (HxWxD); 235x250x290mm ( 9.25 x 9.84 x 11.42 )
Weight: 5.9 Kg ( 13.01 lbs) net / 6.7 Kg ( 14.77 lbs) with packaging
