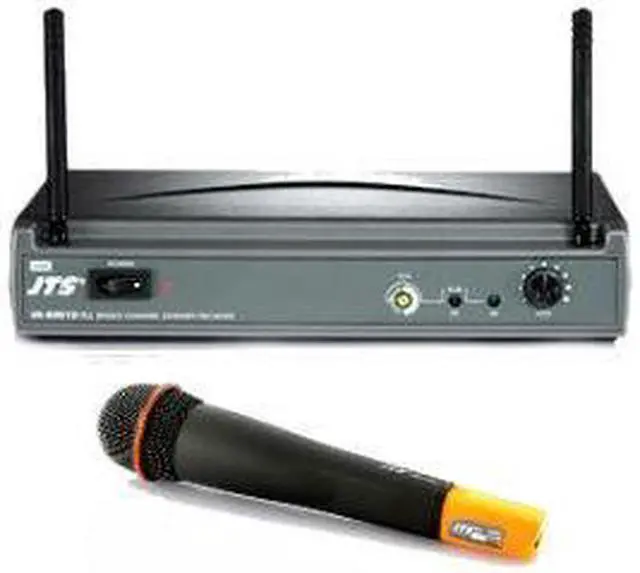

JTS US-8001D/Mh-750 Handheld System

UHF PLL Single Channel Diversity Receiver / Transmitter



Features:



Preset 16 selectable UHF channels.

* Single transmitter operation.

* Diversity technology prevents dropouts in the RF link.

* PLL synthesized technology.

* Noise mute and pilot tone squelch.

* Equipped with both XLR balanced and Ø6.3mm unbalanced outputs.

* Tuned antennas maximize the effective range of the wireless link.

* Compact half rack space design.



Good for:

* Aerobics/Fitness

* School

* Cooperate presentation

* Stage performance

* Wireless for video (together with KA-10R)



Specifications:



US-8001D

Frequency Preparation PLL Synthesized Control

Carrier Frequency Range 502~960 MHz

3x Frequency range 856.100 - 864.900 MHz (F band)

606.500 - 629.900 MHz (U band)

721.500 - 748.375 MHz (G band)

658.125 - 678.500 MHz (D band)

487.125 - 506.500 HHz (I band)

502.000 - 694.000 MHz (T band)

S/N Ratio > 105dB

T.H.D <0.6%@1KHz

Display LED

Display Contents Antenna A/B, RF/AF Status

Controls Power On/Off, Channel Selecting, Audio Level

Audio Output Level -12dB

AF Output Impedance 600

Squelch Pilot Tone, Noise and Mute

Operation Voltage US-8001D/US-8001DB : 12-18 VDC, 150mA

US-8002D/US-8002DB : 12-18 VDC, 200mA

Output Connector 1 Balanced XLR socket (2 for US-8002DB/US-8002D)

1 Unbalanced Ø6.3mm phone jack

Dimension(m/m) US-8001DB/US-8002DB : 210mm (W)* 40mm (H)* 181mm (D)

US-8001D/US-8002D : 210mm (W)* 40mm (H)* 171mm (D)



Mh-750

Frequency Preparation PLL Synthesized Control

Carrier Frequency Range 502~960 MHz

3x Frequency range 856.100 - 864.900 MHz (F band)

606.500 - 629.900 MHz (U band)

721.500 - 748.375 MHz (G band)

658.125 - 678.500 MHz (D band)

487.125 - 506.500 HHz (I band)

502.000 - 694.000 MHz (T band)

RF Outputs 10mW

Stability ±10KHz

Frequency Deviation ±48KHz

LCD Display Low Battery, Power On/Off

Controls Power On/Off, Channel Selecting

Spurious Emissions <-50 dBC

Audio Frequency Response 50~16,000 Hz

Battery UM3, AA 1.5V*2
