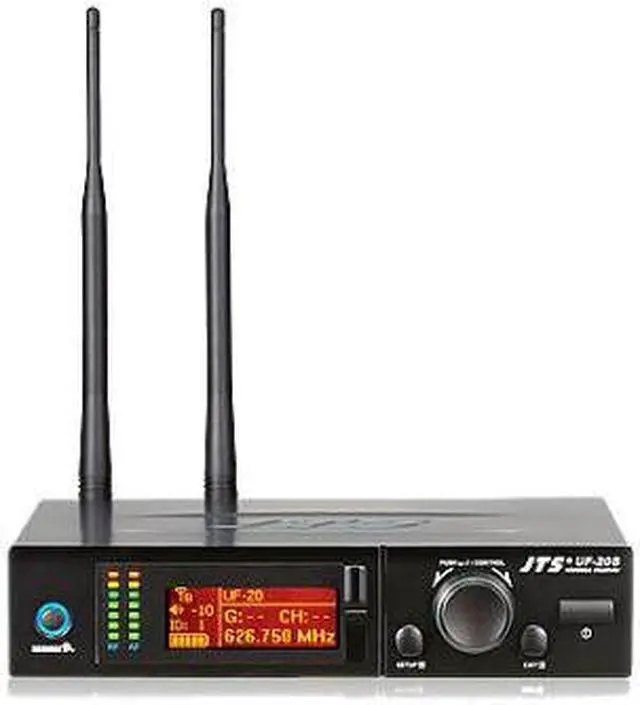

JTS UF-20S | Single Channel Diversity Receiver

UF-20S
Single Channel Wideband True Diversity Receiver

* UHF True diversity technology renders 200-480 meters of operation distance
* Maximum 2400 to 3000 selectable frequencies across 60 to 75 MHz
* Preset 15 groups each of up to 63 compatible channels
* User programmable 6 groups each of 64 channels
* Free space scan function
* JTS Patented obstacle-free RF
function synchronizes a transmitter by pushing a button
* JTS LCX circuit design technology minimizes companding noise

NEWEST FEATURE:
* The is now not only sends the frequency data but also transmitterâ??s RF power, sensitivity, low cut, key lock and user's name.
* RF â??NO SIGNALâ?� alert function.
* AF â??MUTEâ?� alert function.
* Transmitter â??LOW BATTERYâ?� alert function.
* Built in equalizer

Specifications:

Frequency Preparation PLL Synthesized Control
Frequency Setting JTS patented obstacles-free RF REMOSET
Carrier Frequency Range UHF 530-605 MHz
Channel Single
Bandwidth 60~75MHz Wideband
S / N Ratio > 108dB (A)
T.H.D <0.5% @ 1KHz
Chassis 1U/2U standard metal chassis
Preset Channels / Group
* From group 1 ~ 15 up to 63 interference-free compatible channels.
* 844 preset channels / group and 3000 selectable frequencies across 63 to 75 Hz Bandwidth.
* User programmable from U1 ~ U6 each of 64 channels reserved.
Display LCD
Display Contents Group, Channel, Frequency, Antenna A / B, RF / AF Level Meter, Mute Display, Transmitter Battery Status, REMOSET ID Number, User Name, Squelch
Sensitivity 6dBμV, at S / N> 80dB
Receiving Mode True diversity
Audio Output Level Maximum 6dBu
Receiving Mode True diversity
Audio Output Level Maximum 6dBu
AF Output Impedance 600Ω
Frequency Response 50Hz ~ 18kHz, with high-pass filter
Squelch Pilot Tone & Noise Mute
Power Supply 100 ~ 240V or 12V DC
Output Connector 1 XLR Balanced Socket
1 Ø6.3mm Unbalanced phone jack
Dimension (m / m) 212mm(W)x44Mmm(H)x213.9mm(D)
