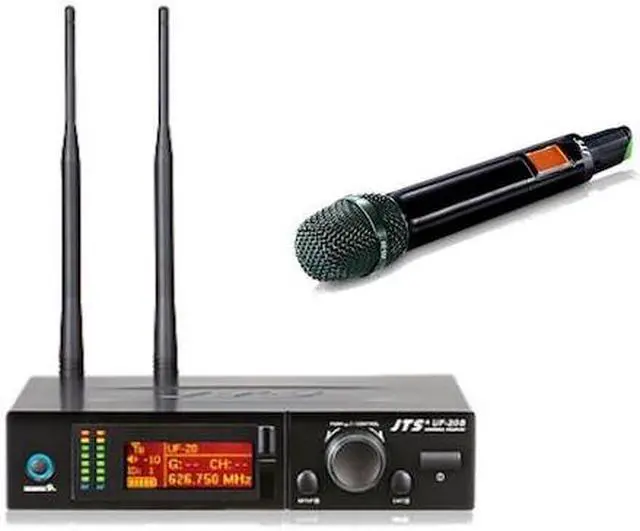

JTS UF-20S/JSS-20 | Handheld Wireless Mic System

Professional Wideband Handheld Transmitter



* 2400 to 3000 selectable frequencies

* Preset 15 groups each of up to 63 compatible channels

* Phase-Locked Loop (PLL) synthesized tune

* Adjustable transmission power between Low and High

NEWEST FEATURE :

* Low cut function.

* JTS newest development SAM-8WLN capsule assures outstanding acoustic performance while minimizes touching noise.

* Interchangeable capsule design for various choices including some classic capsule modules.

* It is designed with slot-in charging feature with two AA NiMH rechargeable batteries.



Specifications:



Frequency Preparation PLL Synthesized Control

Carrier Frequency Range UHF 530-605 MHz

Bandwidth 60~75MHz Wideband

RF Outputs Low / High

Stability < ±10KHz

Frequency Deviation ±48KHz (Peak)

LCD Display Group, Channel, Frequency, Battery Status, User Name, GAIN Adjust

Controls Power ON / OFF, AF Level, Frequency (Up / Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust

Spurious Emissions <-50 dBC

Audio Frequency Response 50Hz ~ 18k Hz

Capsule Module Interchangeable

Battery AA NiMH x2

Dimensions 50mm (W) x253mm (H) x35.5mm (D)

Weight 350g



UF-20S

Single Channel Wideband True Diversity Receiver



* UHF True diversity technology renders 200-480 meters of operation distance

* Maximum 2400 to 3000 selectable frequencies across 60 to 75 MHz

* Preset 15 groups each of up to 63 compatible channels

* User programmable 6 groups each of 64 channels

* Free space scan function

* JTS Patented obstacle-free RF

function synchronizes a transmitter by pushing a button

* JTS LCX circuit design technology minimizes companding noise



NEWEST FEATURE:

* The is now not only sends the frequency data but also transmitters RF power, sensitivity, low cut, key lock and user's name.

* RF NO SIGNAL alert function.

* AF MUTE alert function.

* Transmitter LOW BATTERY alert function.

* Built in equalizer



Specifications:



Frequency Preparation PLL Synthesized Control

Frequency Setting JTS patented obstacles-free RF REMOSET

Carrier Frequency Range UHF 530-605 MHz

Channel Single

Bandwidth 60~75MHz Wideband

S / N Ratio > 108dB (A)

T.H.D <0.5% @ 1KHz

Chassis 1U/2U standard metal chassis

Preset Channels / Group

* From group 1 ~ 15 up to 63 interference-free compatible channels.

* 844 preset channels / group and 3000 selectable frequencies across 63 to 75 Hz Bandwidth.

* User programmable from U1 ~ U6 each of 64 channels reserved.
