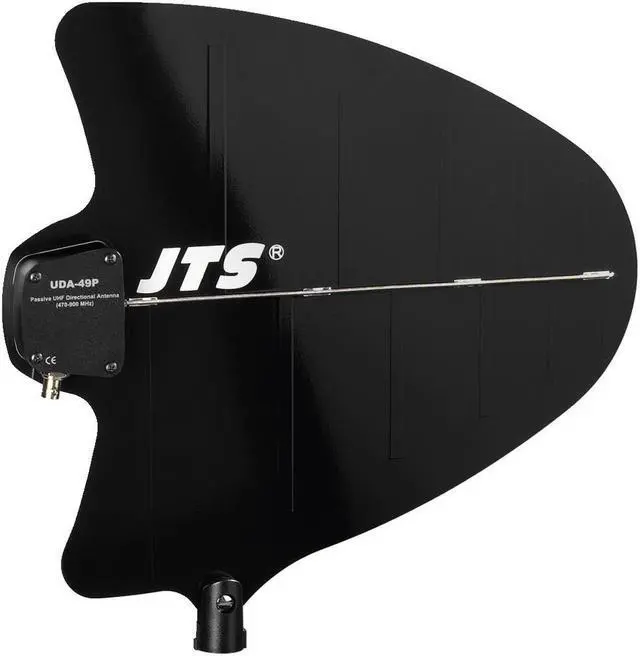

JTS UDA-49P | Passive Directional Fin Antenna

NOTE: 2 x UDA-49P required for diversity reception.



UDA-49P

Passive UHF directional antenna

For wireless microphone systems (reception antenna) or for wireless in-ear monitoring systems, e.g. SIEM-111/5 from JTS (transmitting antenna)

Improved reception and a larger transmission range of 470-960 MHz

Rejects unwanted RF signals, minimises signal loss in multipath receptions and reduces interference susceptibility

Reliable operation also for short-term outdoor use

BNC connection (for UHF PLL receivers of the US/IN series or active antenna splitter UA-960)

Ideally suited for mobile applications, can be mounted onto any microphone stand with a thread of 9 mm (") or 16 mm (")





Technical specifications UDA-49P

UDA-49P

Frequency range 470-960 MHz

Aperture angle 100°

Antenna gain 10 dB

Impedance level 50

Support 9 mm (") or 16 mm (")

Dimensions 360 x 350 x 36 mm

(sheet thickness: 1.7 mm)



Weight 350 g

Connection BNC jack
