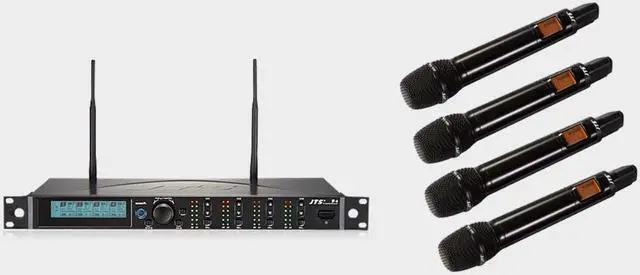

JTS R-4/JSS-4B | 4 Mic Wireless System w/ Dynamic Capsules

Includes:
(1) R-4 Receiver
(4) JSS-4B (SAM-82 Capsule) Handheld Microphones

R-4
The system is designed with JTS newest generation wireless technology. To cope with the squeezed radio spectrum the system provides more compatible channels within limited bandwidth. The R-4 is a 4 channel system in a 19 one U case. Antenna outputs and AC power supply are designed to be cascaded. It provides great convenience to installation.
JTS patented REMOSET feature sends all microphone data by pushing of one button. Moreover all 4 microphones can receive correspondent data at the same time after one pushing. As always JTS provides detailed and full adjustment for best audio and radio performance.

R-4

Specifications

:

Frequency Preparation
PLL Synthesized Control
Carrier Frequency Range UHF 506-542 MHz
S / N Ratio > 105dB
T. H. D <0.6% @ 1KHz
Display Contents Group Channel Frequency Antenna A/B Mute Display AF Meter (LED BAR) RF Meter (LED BAR) Battery Status
Controls Power On/Off Group Channel Frequency Up/Down Frequency Scan Audio Level Lock-on Output Pad
Audio Output Level -12dB
AF Output Impedance 600?
Squelch Pilot Tone & Noise Mute
Operation Voltage 100 ~ 240V
Output Connector 4 independent XLR outputs and 1 Ø 6.3 mm and 1 XLR for mixed output
Dimension (m / m) 212.3 mm (W) * 38.3 mm (H) * 144mm (D)
Notes Actual product specifications may vary depending on region.

JSS-4B
* 2400 to 3000 selectable frequencies
* Preset 15 groups each of up to 63 compatible channels
* Phase-Locked Loop (PLL) synthesized tune
* Extended dynamic range and smooth frequency response.
* Adjustable transmission power between Low and High
* The panel Lock-On function prevents tampering and RF interruption
* Together with JTS various capsules preferred miking is assured.
NEWEST FEATURE:
* It is designed with slot-in charging feature with two AA NiMH rechargeable batteries.

JSS-4

Specifications

:
Frequency Preparation PLL Synthesized Control
