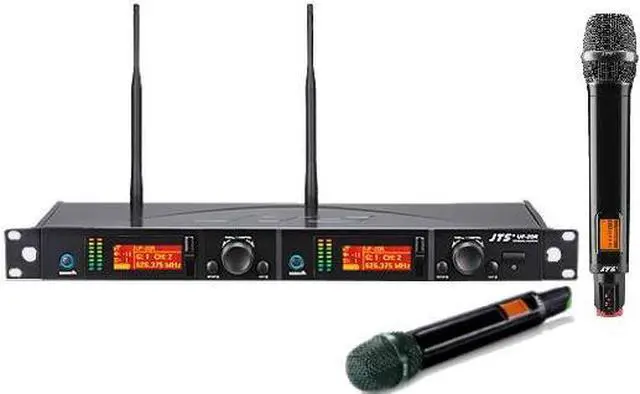

JTS UF-20R/JSS-20 | Dual Handheld Wireless Mic System

UF-20R/JSS-20 System
Professional Dual Channel Wideband True Diversity System

* UHF True diversity technology renders 200-480 meters of operation distance
* Maximum 2400 to 3000 selectable frequencies across 60 to 75 MHz
* Preset 15 groups each of up to 63 compatible channels
* User programmable 6 groups each of 64 channels
* Free space scan function
* JTS Patented obstacle-free RF
function synchronizes a transmitter by pushing a
button
* JTS LCX circuit design technology minimizes companding noise
NEWEST FEATURE:
* The is now not only sends the frequency data but also transmitters RF power
sensitivity low cut key lock and user\'s name.
* RF NO SIGNAL alert function.
* AF MUTE alert function.
* Transmitter LOW BATTERY alert function.
* Built in equalizer
* Power / Antenna cascading output provided.

Specifications

:

UF-20R
Frequency Preparation
PLL Synthesized Control
Frequency Setting JTS patented obstacles-free RF REMOSET
Carrier Frequency Range UHF 530-605 MHz
Channel Dual
Bandwidth 60~75MHz Wideband
S / N Ratio > 108dB (A)
T. H. D <0.5% @ 1KHz
Chassis 1U standard metal chassis
Preset Channels / Group
* From group 1 ~ 15 up to 63 interference-free compatible channels.
* 690 preset channels / group and 3000 selectable frequencies across 60 to 75 Hz Bandwidth.
* User programmable from U1 ~ U6 each of 64 channels reserved.
Display LCD
Display Contents Group Channel Frequency Antenna A / B RF / AF Level Meter Mute Display Transmitter Battery Status REMOSET ID Number User Name Squelch
Sensitivity 6dB? V at S / N> 80dB
Receiving Mode True diversity
Audio Output Level Maximum 6dBu
Receiving Mode True diversity
Audio Output Level Maximum 6dBu
AF Output Impedance 600?
Frequency Response 50Hz ~ 18kHz with high-pass filter
Squelch Pilot Tone & Noise Mute
Power Supply 100 ~ 240V or 12V DC
Output Connector 2 XLR Balanced Socket
2 Ø 6.3 mm Unbalanced phone jack
Dimension (m / m) 480mm (W) 4
