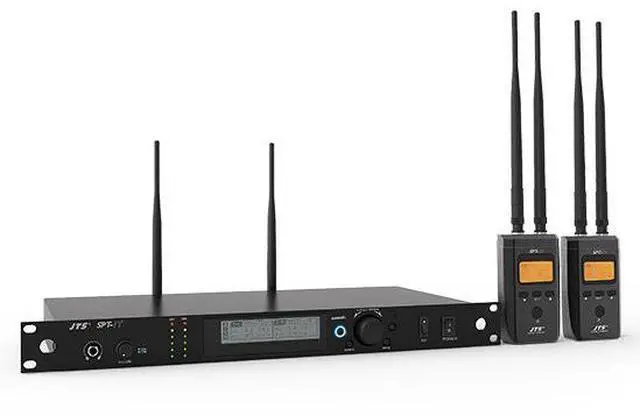

SPT-1R/SPT-1T System

Dual-Channel UHF Transmission and True Diversity Reception

With UHF true diversity technology, receiver 36 MHz switching bandwidth and 6 preset groups of up to 1441 selectable channels, the SPT-1R/1T wireless audio system is your perfect partner for mission critical applications.



Hot Features :



* Obviate Audio Delay/Latency

* Eliminate Complex Cable Runs

* Fast Setup/Teardown with Great Installation Flexibility

* Independent Audio Channel Control



Your best and state-of-the-art wireless solution that eliminates the need for speaker cabling and audio latency without any compromise in sound quality.





SPECIFICATIONS



SPT-1R

Frequency Oscillation Phase-Locked Loop, PLL

Carrier Frequency 470~960 MHz

Number of Channels 2 Channels

Frequency Matching 2.4GHz RF

Antenna Selection True Diversity

Signal to Noise Ratio (S/N) >106dB(A)

Total Harmonic Distortion (T.H.D) <0.5%@1KHz

Reception Sensitivity -95dBm,S/N>80dB

Mirror Rejection Ratio >80 dB

General Frequency Response 50Hz~18KHz±2dB

Antenna Connector BNC Female

Display LCD

Functions Displayed Group, Channel, Frequency, Antenna A/B, AF Indication, RF Indication, Remoset ID, Delay Time (distance)

Controls Power Switch, Group, Channel, Frequency, Reception Sensitivity, Key Lock, Delay Time, Display Settings, Language

Audio Output Level (MAX) Mini XLR Jack+10dBu(Line)-10dBu(MIC)

Audio Output Impedance 600

Mute Noise Mute and Pilot Tone

Output Port Balanced Mini XLR

Power DCV INPUT 12V/0.5A

Dimensions 365mm(L) x 70mm(W) x 30mm(H)

Remark Specifications provided above may be slightly different from the product without further notice.



SPT-1T

Frequency Oscillation Phase-Locked Loop, PLL

Carrier Frequency 470~960 MHz

Frequency Matching 2.4GHz RF

RF Power Output 10mW/50mW (according to local regulations)

RF Stability <±10KHzFc

Modulation Frequency Deviation ±48KHz

Spurious Emissions <-50dBc

LCD Display Group, Channel, Frequency, Mute, Remoset ID, Volume

Controls Power, Group, Channel, Frequency, Transmitted Power, Key Lock

Dimension 200mm(L) x 480mm(W) x 46mm(H)

Remark Specifications provided above may be slightly different from the product without further notice.
