XVive U3D | Dual Wireless System for Audio

THE SYSTEM
Comprised of two U3 Microphone Wireless System sets, the U3D Dual Wireless System for Audio package is the perfect wireless solution for PA and DJ systems! U3D is easy to use, reliable, greatâ?�sounding and affordable, and it will take the tangle and inconvenience of cables out of your sound system.
Run wirelessly from a PA mixing console to a powered main speaker, avoiding the hassles and risks of running speaker cables across a crowded venue! You can also run wirelessly between powered mains or between powered monitors.


STEREO WIRELESS
U3D includes two U3 transmitters and two U3 receivers. If you use a stereo PA or DJ system with powered speakers, that means you can make your connections wireless by connecting the left mixer output to the left speaker (using the first U3 set), and the right mixer output to the right speaker (using the second U3 set).


MORE MONO
If you have a small mono system with only one loudspeaker, you only need one U3 set, connecting the transmitter to the mixerâ??s mono XLR output, and the receiver to the powered loudspeakerâ??s XLR input. But you can create a dual mono setup by connecting a transmitter to the mixerâ??s output, connecting U3 receivers to the XLR inputs of two powered speakers, and setting all three units to the same channel. That way, both speakers get the same mono signal. In fact, one U3 transmitter can transmit to more than two receiversâ??so you can create a multiple mono setup by sending the same mono signal to three or more powered cabinets or monitors! You will just need as many U3 receivers as you have speaker cabinets.


EXTEND AND ADAPT
If the XLR outputs on your mixer are very close together, you can use the included XLR adapter to move one of the U3 Transmitters out of the way of the Transmitter plugged into the next channel. Alternately, you can use an XLR cable of any length (not included) for the same purpose.


WHATâ??S IN THE BOX

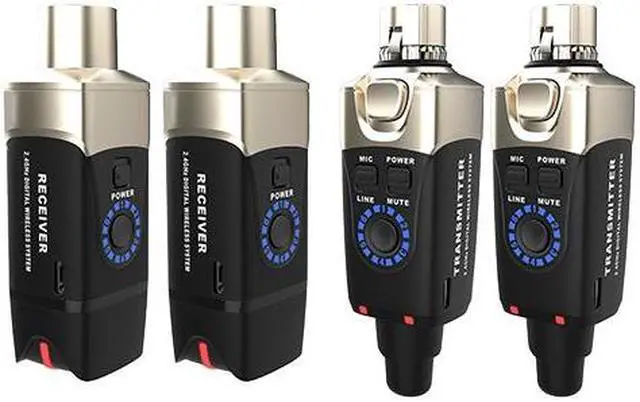

The U3D package includes two U3 Transmitters, two U3 Receivers, a carry pouch for each pair, a dual USB charging cable for each pair, and an XLR extender adapter to use if you need it on mixers where the XLR outputs are very close together.

FEATURES:

Two sets of U3 Wireless Systems, for stereo wireless connections from mixers to powered PA speakers
Can be used with stereo or multiple mono PA/DJ systems, or two dynamic microphones
24-bit /48 kHz digital audio with low distortion and wide frequency response
Stable 2.4 GHz wireless connection with a range of up to 90 feet

SPECIFICATIONS:

U3
WIRELESS TYPE

2.4 GHz ISM worldwide open band
BIT DEPTH / SAMPLE RATE

24-bit / 48 kHz
SWITCHABLE CHANNELS

6
SIMULTANEOUS CHANNELS

6
MODE

Input: Mic / Line
FREQUENCY RESPONSE

20 Hz â?? 20 kHz (-3dB)
DYNAMIC RANGE

110 dB (-3 dB)
MICROPHONE COMPATIBILITY

Dynamic and battery-powered condenser microphones
SIGNAL-TO-NOISE RATIO

110 dB
TOTAL HARMONIC DISTORTION

0.2%
LATENCY

5 ms
OPERATING RANGE

27.
