XVive U5 | U5T2 Wireless Audio for Video System

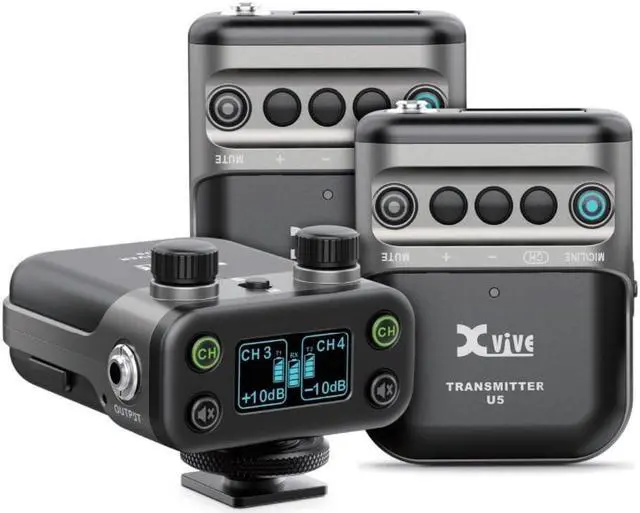

The U5T2 WIRELESS AUDIO FOR VIDEO SYSTEM is designed to send audio wirelessly from the included lavalier microphone (or another line-level audio source) to a DSLR camera for video production. Since U5T2 is a dual-channel system, one receiver (connected to a DSLR) can accept signals from two belt-pack transmitters (connected to lavalier microphones or line-level audio sources) at the same time. The package includes two transmitters, two lavalier microphones and one receiver.

The system operates on the 2.4GHz wireless bandand offers a reliable, long-range wireless signal with high-fidelity 24-bit/48kHz audio. The Receiver has a shoemount for connection to a DSLR camera. It can receive one or two signals at a time; and send them to the camera (via the included 3.5mm cable) as either a mono or stereo signal. When using two transmitters, in stereo mode each input gets sent to one stereo sideâ??making it possible to control the blend between signals later during editing.

The U5T2 provides high-quality voice audio for all kinds of video shoots, vlogging / YouTubing, livecasting, interviews, sporting events, wedding parties and more. The system is powered by an Xvive U5B replaceable lithium-ion battery, which provides up to 5 hours of continuous use. The battery can be recharged by plugging the unit into a 5V USB power source, using the supplied cable. Or, with the U5C battery charger kit, you can charge three backup batteries at the same time, ensuring that you never run out of power!

WHAT'S IN THE BOX
Transmitter... 2 PCS
Receiver... 1 PC
Lavalier microphone... 2 PCS
Dual USB charging cable... 1 PC
USB charging cable... 1 PC
Windscreen... 2 PCS
Pouch... 1 PC
3.5mm to 3.5mm Stereo cable... 1 PC
Mic clip... 2 PCS
Warranty card... 1 PC
Manual... 1 PC
U5B battery... 3 PCS

2.4 GHz wireless audio , true diversity for
both channels simultaneously
Dual-channel receiver for DSLR Cameras
Mic mode dynamic range: 99dB
Line mode dynamic range: 107dB
Transmitter accepts lavalier microphone
or audio device via line input
Xvive U5B rechargeable lithium battery
provides up to 5 hours of continuous use
Solid RF connection over a 100-foot range
(actual range depends on RF signal
absorption, reflection and interference)
TRS stereo 3.5mm output from
Receiver to DSLR
High-resolution 24-bit/48 kHz audio
Broad 20 Hz-20 kHz frequency response;
100 Hz high-pass filter in Mic mode
Stereo mode / Mono mode for Receiver
audio output to DSLR
Less than 6ms latency; simultaneous
broadcast on up to 6 channels
Mic mode signal-to-noise ratio: 95dB
Line mode signal-to-noise ratio: 107dB
