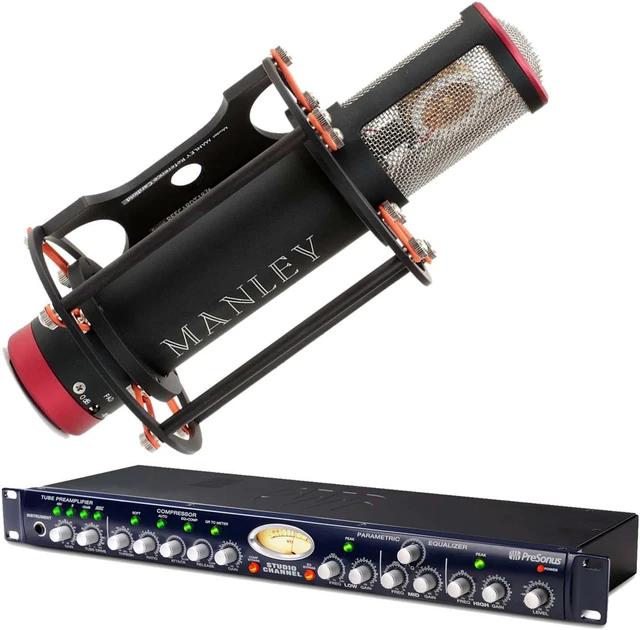

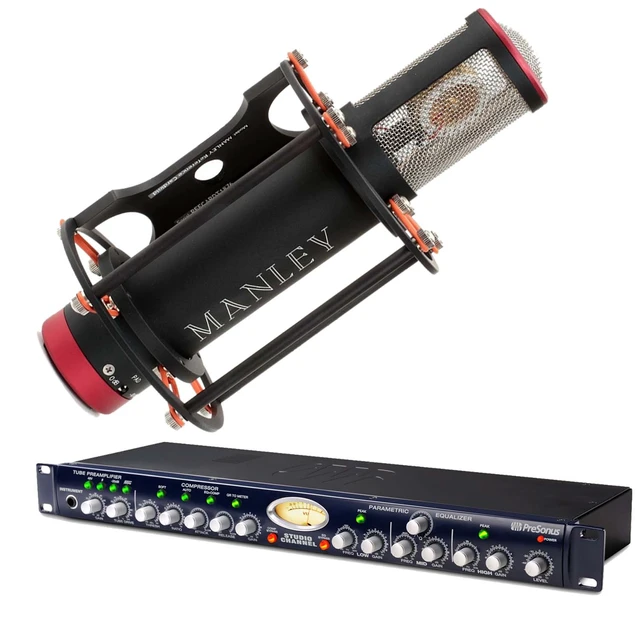

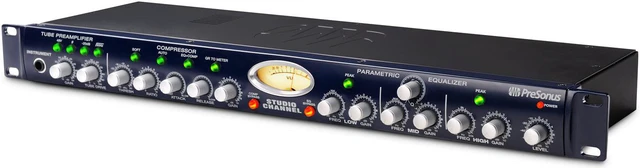

Manley Reference Cardioid LD Tube Condenser Mic, Presonus Studio Channel Bundle

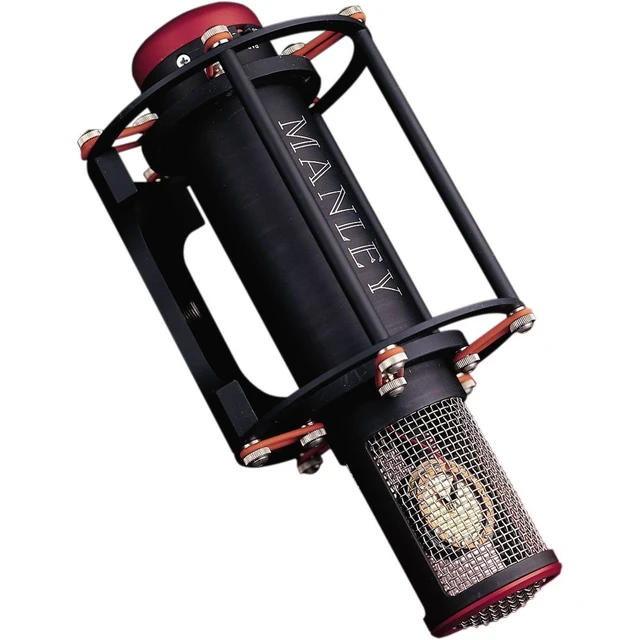

The Reference Cardioid Microphone from Manley Labs is a large diaphragm condenser offering a wide frequency response and accurate transient performance without coloration or any perceivable sonic signature. The rich tonal balance and liquid character make this center-fixed cardioid mic an excellent choice for recording guitars, drums, brass and especially vocals. The Reference Mic features a 1" gold sputtered diaphragm that is 6 microns thick and has the ability to withstand sound pressure levels up to 150 dB. The open-weave stainless-steel grille allows the capsule to capture signals with zero-loss acoustical transmission, which translates to less dampening of high frequency content.

The electronics of the Reference Cardioid include two triodes in cascade forming an entire gain-block. The dual-triode 12AT7 tube is easily obtainable and was chosen for its high gain and low noise properties. The audio signal and power connect from the microphone to the filtered B+ power supply via single 30' 6-pin XLR cable. The audio output exits the power supply via 3-pin XLR through a custom-wound output transformer, which employs nickel laminations and "hum-bucking" bifilar windings, all encased in mu-metal. The Reference Cardioid features a proprietary suspension system that is attached to the black anodized casing.

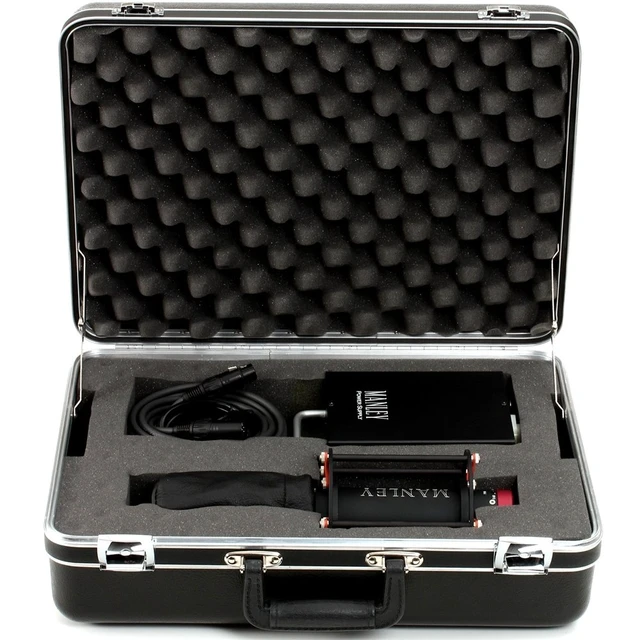

The capsule itself is mounted to a neoprene-rubber shock-mount to prevent unwanted vibrations from being picked up by the diaphragm. Handmade in the USA, the Reference Cardioid ships with a leather capsule cover, locking carrying case, and IEC power cable. 1.0" diaphragm Open weave stainless-steel grille for zero-loss acoustical transmission Neoprene-rubber shockmount All Tube Design with 12AT7 dual triode -10 dB pad 150 dB maximum SPL Filtered B+, regulated heater voltages 30' 6-pin XLR power cable Hand-wound output transformer with nickel laminations and mu-metal casing Precision suspension system Leather capsule protector Locking carrying case
UPC: 890833000298
