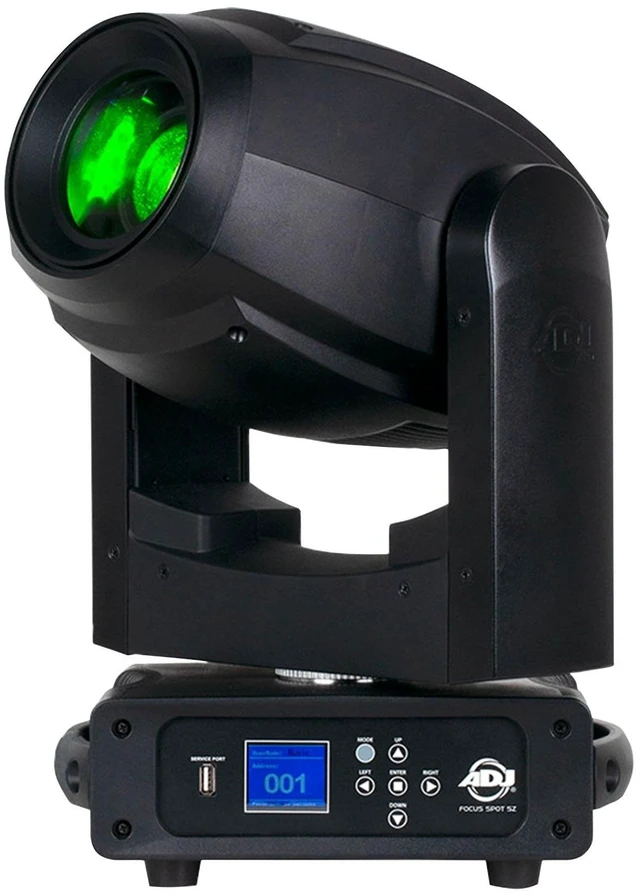

American DJ Focus Spot 5Z 200W LED Moving Head

The Focus Spot 5Z is powered by a brilliant 200W cool white LED engine and is equipped with motorized focus, zoom (11 ~ 22-degree zoom), Iris and two Frost filters. It is designed for temporary live events and fixed installations in nightclubs, stages or churches. It is professionally fit with one GOBO wheel (7 aluminum and 1 glass GOBO) with 7 rotating/replaceable GOBOS, two COLOR wheels, each with 7 vibrant colors plus white, and 2 rotating/indexable prisms, (one 5-facet linear and one 6-facet circular). It also has two frost effects (heavy frost and light frost).



The Focus Spot 5Z has locking power In and out connectors to daisy chain the power, as well as 5-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fine pan and tilt, multiple DMX control modes, and 6 different dimming options. The Focus Spot 5Z offers a robust light output in a light weight, compact foot print (18-inch high and one 23 pounds).



The Focus Spot 5Z fits in the ADJ DRC MH road case.



Features:

Motorized Focus

2 Frost Filter to create wash effects

Motorized Zoom: 11 ~ 22-degrees

2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular

0-100% smooth dimming

Various strobe speeds

USB firmware update port

2 cooling fans



Specifications

Light Source:

200W Cool White LED Engine (50,000 hr.)



Color Wheels:

7 dichroic colors + white on tow separate wheels (includes CTO, CTB and UV filters)



GOBO Wheels:

6 aluminum GOBOs, 1 glass GOBO + open

All GOBOs are removable & rotatable

GOBO Shake Effect

Aluminum GOBO size: 23mm (outer); 19mm (viewable); 0.5mm (thickness)

Glass gobo size: 23mm (outer); 19mm (viewable); 3.3mm (thickness)



Prism Wheel:

Prism Wheel 1: Rotatable 5-facet Linear

Prism Wheel 2: Rotatable 6-facet Circular

Each Prism is indexable

Frost Filters:

Frost 1: Heavy frost for wash effect

Frost 2: Light frost creates lightly blurred edges for GOBO and Prism FX

Control:

3 DMX Channel Modes: 22/25 Channels

Color LCD display with 6-button function menu

Control Mode: DMX512 or internal programs

6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2

0-100% smooth dimming

Various strobe speeds

USB firmware update port

With Wired Digital Communication Network



Pan/Tilt:

Pan: 630 degrees

Tilt: 270 degrees

Connections:

DMX Connections: 5-pin XLR In/Out

Power Connections: PowerLock In/Out to daisy chain power

Electrical:

Multi-voltage operation: 90-240V, 50/60Hz

Max power consumption: 290W

Dimensions & Weight:

Dimensions: 7.15 (L) x 10.97 (W) x 18 (H) (181.5 x 278.61 x 457.4mm)

Weight: 23 lbs. / 10 kg.



Whats Included:

Omega Bracket

1.83M locking power cable
