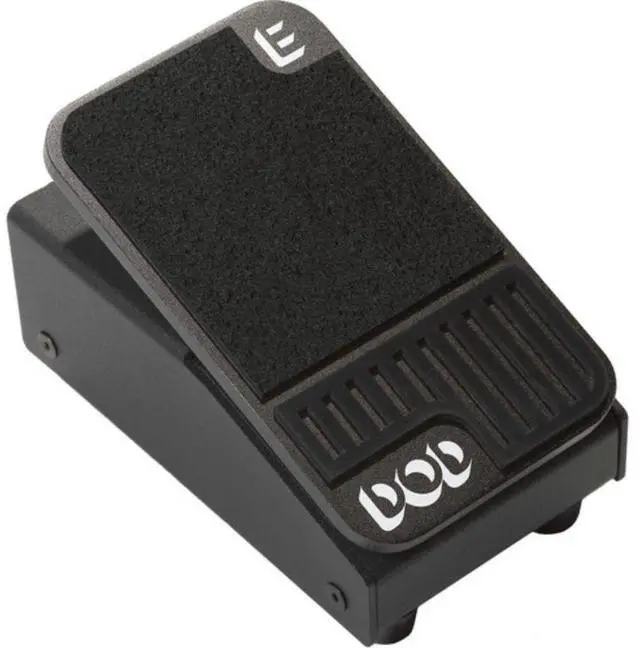

DOD Mini Expression Pedal

The DOD Mini Expression Pedal is designed to interface with compatible pedals, providing expression control over apposite parameters, and a footprint roughly equivalent to that of most other stompboxes. An all-steel construction ensures ruggedness over time, while a gear drive is employed to effectuate level, meaning there are no interior strings that could potentially break.

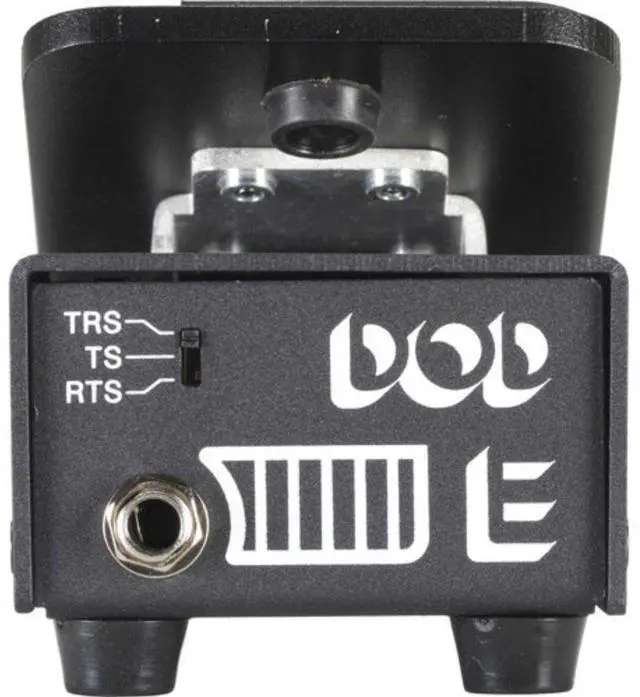

With one 1/4" output, the Mini Expression offers a selector to better gear the pedal with various connection types, allowing you to choose between TRS, TS, RTS, while adjusting the resistance to compensate. The pedal provides a linear potentiometer which can switch between 25 kOhms for TRS and RTS connections, and 10 kOhms for TS termination points. The Mini Expression Pedal is passive, so no power is required for operation.

Key Features at a Glance

• Gear Drive to ensure a reliable, string-free performance
• 3-position selector provides multiple resistances for a wide range of compatibility with apposite products
• Linear 25-kOhm / 10-kOhm potentiometer
• Size roughly equivalent to the footprint of most standard pedals

Box Contains

DOD Mini Expression Pedal


• 1 x DOD Pedal
