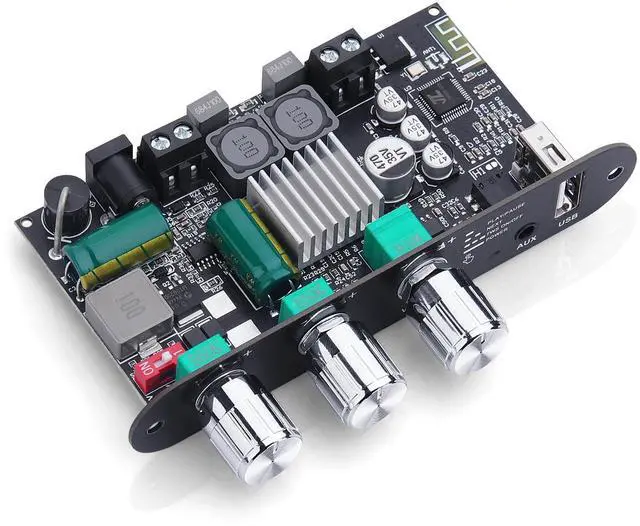

ZK-1001U Amp Bluetooth 5.3 Mono Amplifier Board with TWS, Mini Audio Amps with Boost for Home Outdoor DIY Speakers with 100W Power Output, Treble and Bass, Supports USB/AUX/BT Input, DC 9-24V

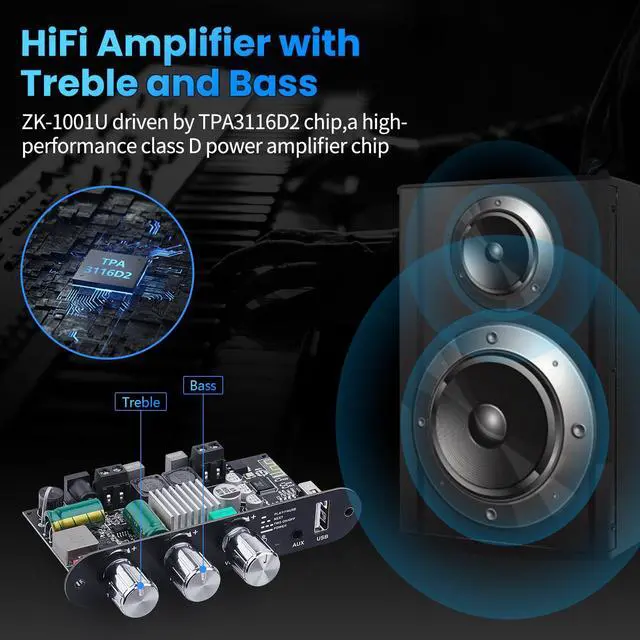

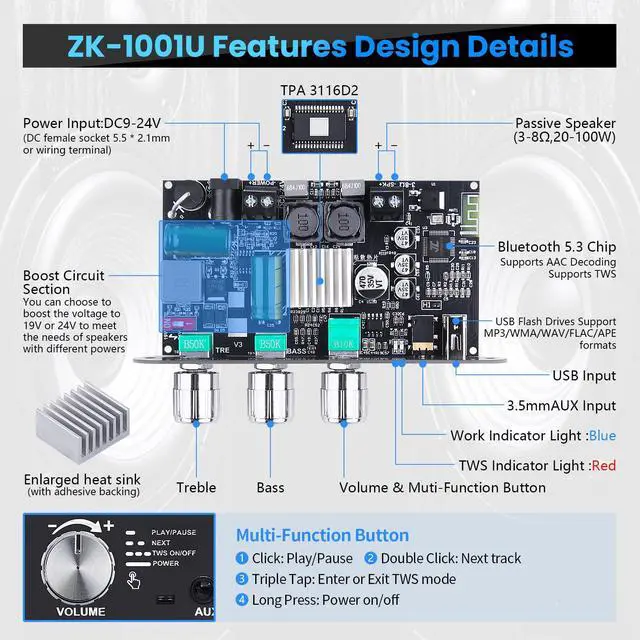

- ZK-1001U MONO AMPFILIER BOARDZK-1001U Mini Bluetooth audio amplifier board is a mono channel amp with 100W rated power, only contact a passive speaker(20-100W, 3-8), DC7-24V/4A above (Cannot be connected to AC, suitable for 7.4V/12V/21V etc. batteries, not suitable for 24V batteries)). this mono ampfilier with a TPA3116D2 chip, distortion rate below 0.3%, and the upgrade Bluetooth 5.3 chips support AAC decoding, APP and TWS, low latency
- Outdoor Speaker Amplifier with BoostBuilt-In Boost Circuit for Optimal Voltage Output Features an auto-boosting circuit that intelligently adjusts input voltage (9V/15V) to a stable 19V or 24V (default: 24V. Red switch to 1 is 24V, to ON is 19V), this flexible voltage is ideal for outdoor use with battery-powered speakers.

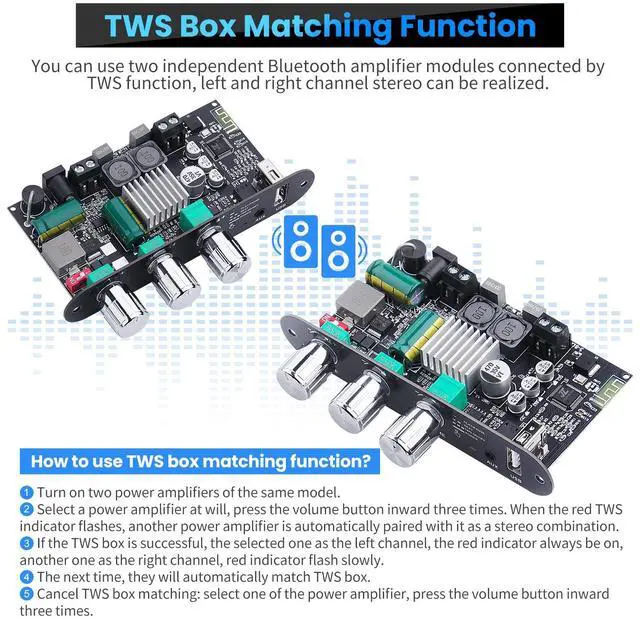

- TWS BOX FUNCTIONThis ZK-1001U amp is a mono amp, this power amplifier module support TWS BOX mode, this couple of ZK-1001U mono power amps, you can use this two independent Bluetooth power amplifier boards connected by TWS box function, and left and right channel stereo can be realized
- BLUETOOTH 5.3 INPUTSThe 1001U Bluetooth power amplifier board with 4 kind of inputs: AUX, USB flash drive, USB sound card and Bluetooth wireless connection, the upgrade large chips support Bluetooth 5.3, low latency, The range of audio devices (smartphones, tablets, laptops, etc.) with Bluetooth connectivity is 15m/49ft
+
+
