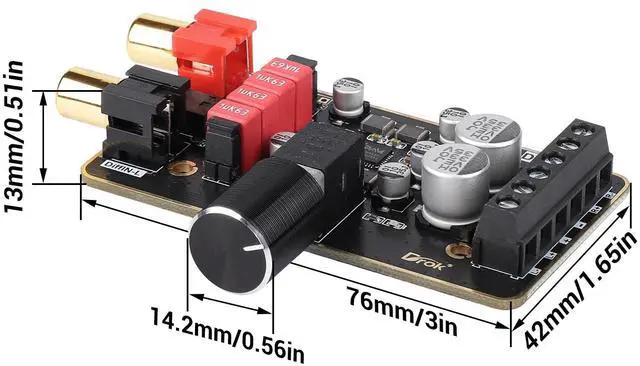

Name: 12V Amplifier Board, 15W+15W 2.0 Dual Channel Audio Amplifier Board PAM8620 DC 8-26V 24V Digital Stereo Amp Module Class D Mini Power Amplify Circuit
Brand: Generic Brand
SKU: 0WP-00MR-00082
Price: 29.99 USD
Availability: InStock

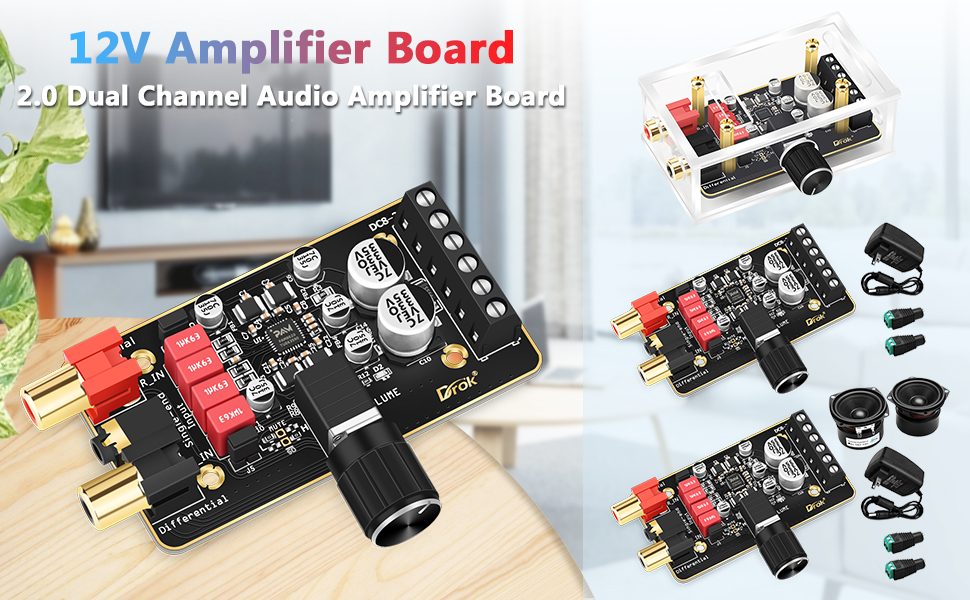

12V Amplifier Board, 15W+15W 2.0 Dual Channel Audio Amplifier Board PAM8620 DC 8-26V 24V Digital Stereo Amp Module Class D Mini Power Amplify Circuit for Sound System Speaker DIY

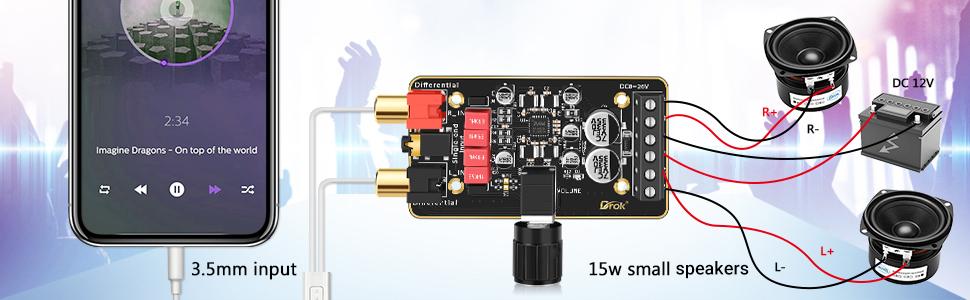

Parameters: DROK audio amplifier board working voltage is DC 8-26V, can be powered by 12V, 24V; output power is 15W stereo (24V 8ohm)/ 10W stereo (12V 8 ohm), if connect 4 ohm or 2 ohm speaker, the power will be automatically limited to 15W.

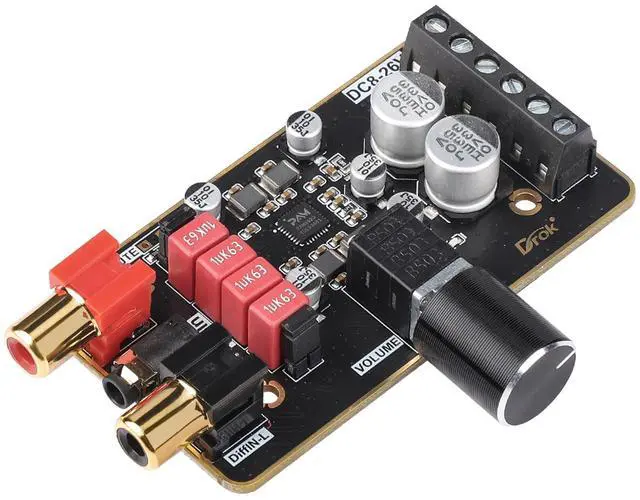

Artificial Material: this New-designed stereo amplifier module is made of noble black immersion gold circuit board, PAM8620 chip, imported KEMET speaker capacitor, large-capacity filter capacitor for channels. Besides, we customized black copper terminal blocks and gold-plated audio input terminal blocks for this new amplifier module.
High Performance: the class D power amp module is with high efficiency of over 90%, general harmonic distortion noise is less than 0.2%, low quiescent current and noise suppression.
Safe Protection: the 2 channel amp board is designed with input reverse connection protection, short circuit protection, over heat protection, overcurrent protection, overvoltage protection, undervoltage protection; what's more, EMI is allowed to pass.

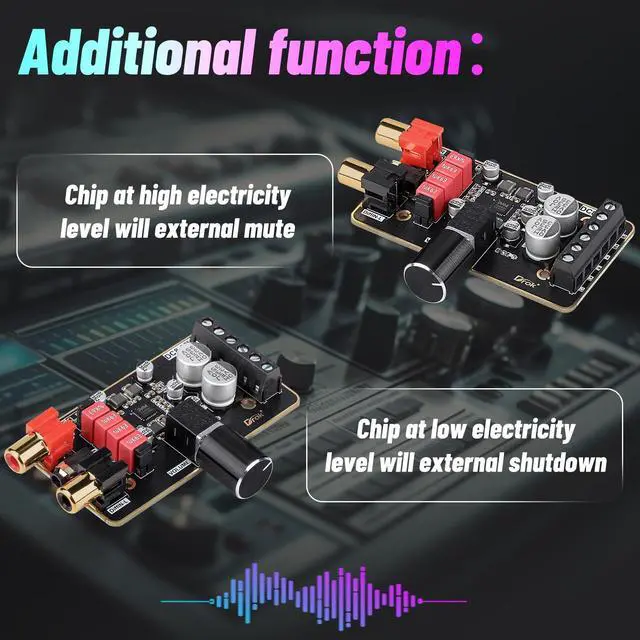

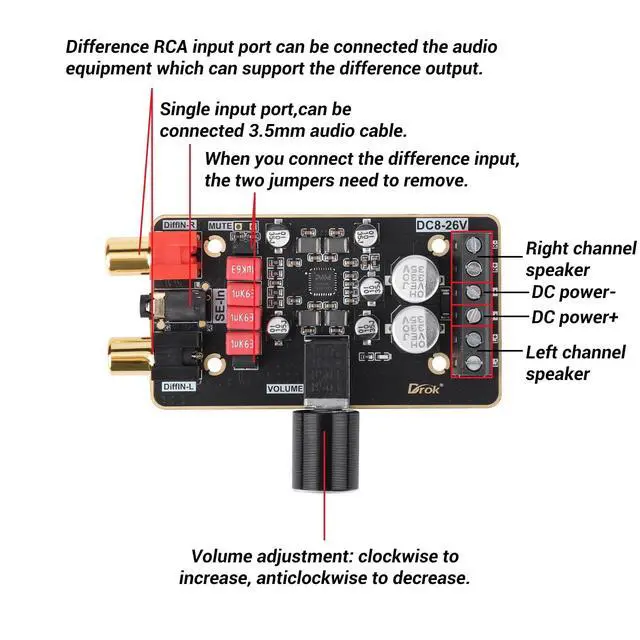

Additional Function: it is available to connect external mute function (MUTE: High level mute, factory default low level); available to add an external Shutdown (SD: the chip will be Shutdown at low electricity level, factory defaults high electricity level.

DROK Digital Amplifier Board

Working voltage range DC 8-26V, canbe powered by 12v or 24v

Output power is 15W stereo (24V 8ohm)/ 10W stereo (12V 8 ohm)

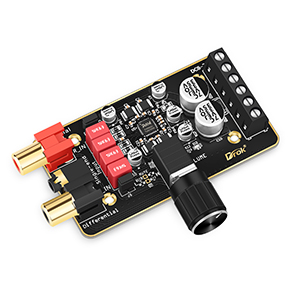

Class D Dual Channel 15W+15W

More Amplifier Kits for your Option!

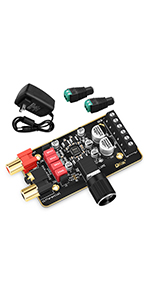

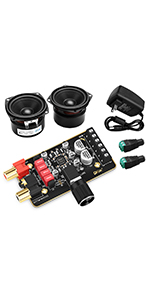

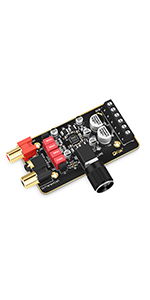

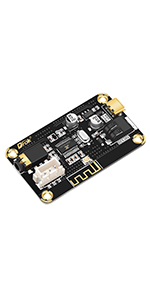

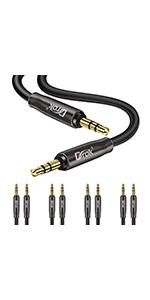

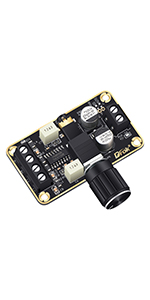

	Bluetooth Amplifier Board	Amplifier Board with Power Adapter	Amplifier Board Kit	Amplifier Board	Amplifier Board	DROK Auxiliary Audio Stereo Cable

Customer Reviews	—	—	—	—	—	—
Price	—	— no data	— no data	—	—	— no data
Working Voltage	DC 5V-24V	DC 8-26V	DC 8-26V	DC 8-26V	DC 5V	no data
Output Power	no data	15W+15W	15W+15W	15W+15W	5W+5W	no data
Pakage Including	1x Bluetooth Board	1x Class-D Amplifier Board; 1x 12V Power Adapter; 2x Male DC Connector	1x Amplifier Board; 2x 15W+15W Speaker; 1x 12V Power Adapter; 2x Male DC Connector	1x Amplifier Board	1x Amplifier Board	no data
Property	no data	no data	no data	no data	no data	3.5mm male to male
Cable Length	no data	no data	no data	no data	no data	1 meter (3.28 feet)
Quantity	no data	no data	no data	no data	no data	5pcs
