200W Bluetooth Power Amplifier Board Product Specification
Package Included:
- 1*ZK-1002T Power Amplifier Board
- 1 set Protective Shell
- 1 * Screwdriver
- 3 * Knob
- 1 * DC Power Adapter
Reminder
- There will be enough output power with enough audio input and enough supply voltage/current.

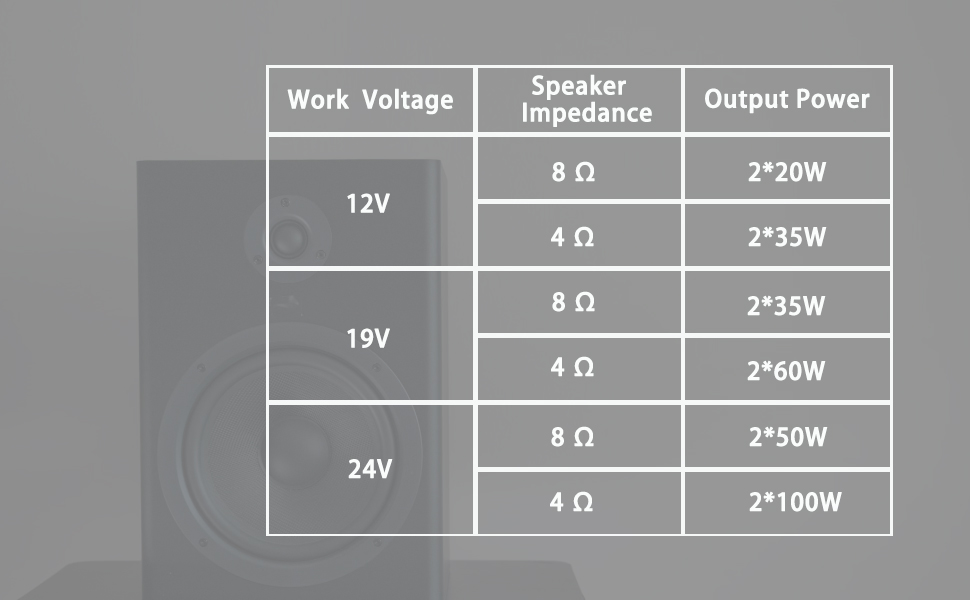

- The higher the power supply voltage the higher the output power, the lower the speaker impedance the higher the output power.
- Please make sure that the power of the power supply is greater than the actual working power of the amplifier.

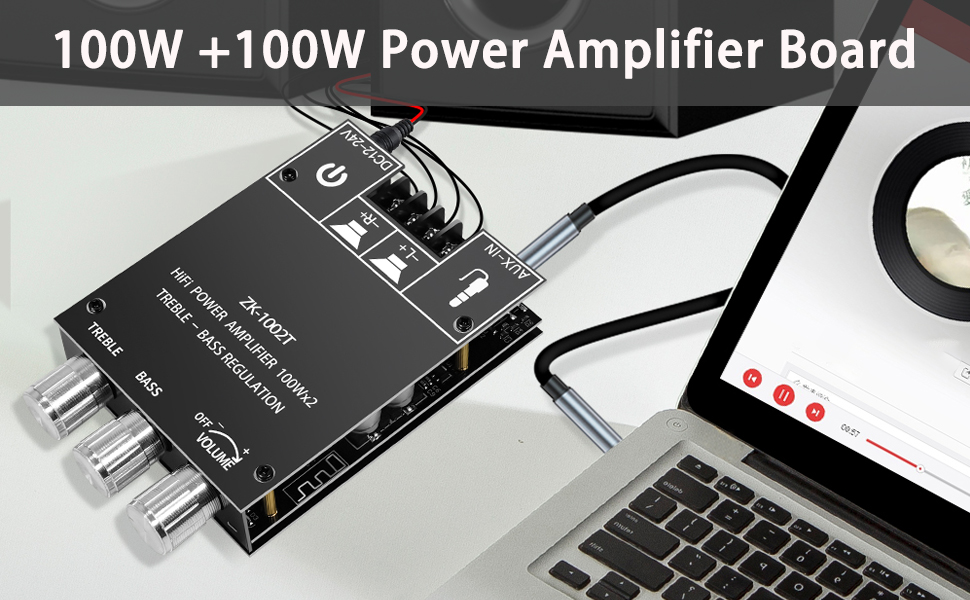

100W+100W Bluetooth Power Amplifier Board
Audio input mode
Bluetooth and AUX input, and Bluetooth mode is connected first.
No matter which mode Bluetooth can be connected, and Bluetooth mode supports automatic connection. When Bluetooth is not connected and AUX is plugged in, it is AUX mode.
Note: When using AUX mode, you need to make sure the Bluetooth connection of this module has been disconnected.
How to choose a power supply?
The higher the voltage, the higher the current, the more power output.
If the voltage is too low sound amplification can easily cause sound distortion, if the current is too small to bring up the speaker will pull down the voltage, work properly or poor sound quality.
Recommended use 18V 19V 24V power supply, current 5A or more. If you only have 9V 12V or 1A 2A power supply, can also be used but the power is small, pay attention to the use of the volume to the maximum may be distorted and affect the sound quality.
Bluetooth Audio Amplifier
JIAATGA ELECTRONICS DIVISION:
We hope to let more people experience audio equipment with good value for money, so that our customers can enjoy music and life!
At the same time, we are constantly developing new products, more people to bring more cost-effective audio equipment, and provide better solutions for your home audio/video system.
S288 Home Audio Amplifier
4 Channel
AK45 Audio Bluetooth Amplifier
300W+300W
ZK-1002T Amplifier Board
100W+100W
ZK-TB21 Amplifier Board
50W+50W+100W
200W Bluetooth Power Amplifier Board Product Specification
| Bluetooth Version | BT 5.0 |
| Max Power Output | 100W+100W |
| Chip | TPA3116D2 (With AM interference suppression) |
| Speaker Parameters | 20~200W,4~8O |
| Input Mode | AUX+Bluetooth |
| Power supply | DC 12~24V, 5A ( The higher the voltage, the higher the output power) |
| SNR | >90 dB |
| Channels | Left and right dual-channel (Stereo) |
