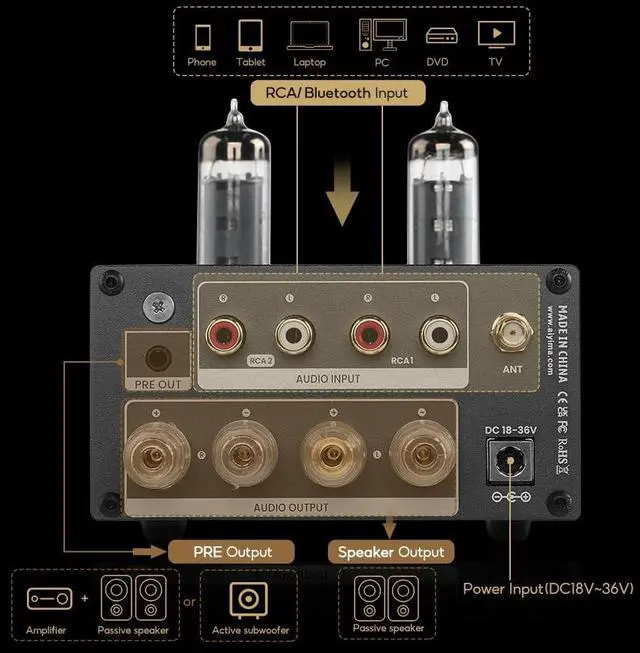

Bluetooth/AUX inputs
Multi-functional audio inputs and outputs in one, with a unique design, professional audiophile components, for you to create a superior sound quality experience
Two-way RCA outputs
Exquisite craftsmanship, attractive appearance, all-aluminum alloy structure to ensure longevity and a sense of high quality; larger gold-plated speaker terminals, easy to connect while safely passing through higher power

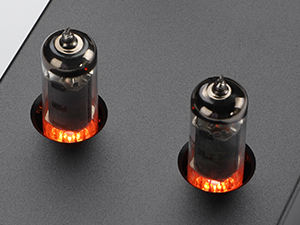

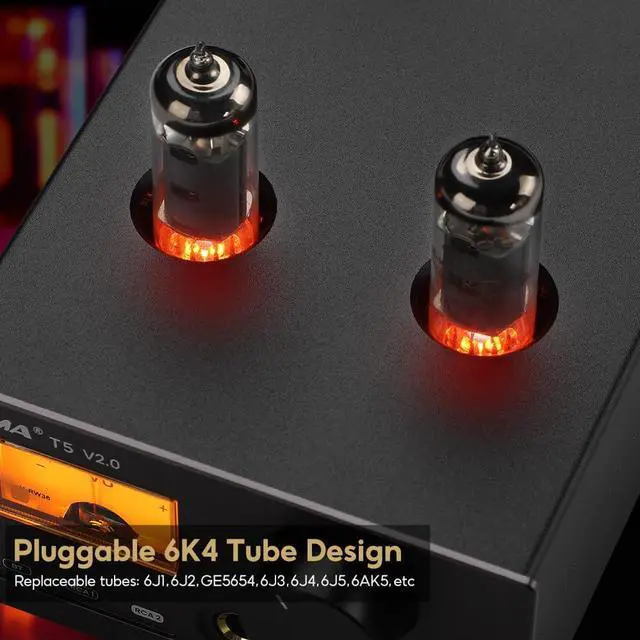

Comes with 6K4 tubes
Can be replaced directly by 6J1, 6J2, 6J3, 6J4, 6J5, 6K4, 6*IN, 6*4N, 6*5N, 5725, 6AK5, EF95, 6BA6, 403B etc.

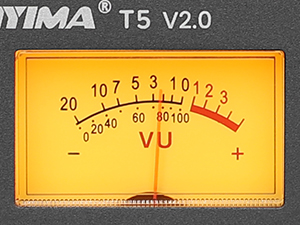

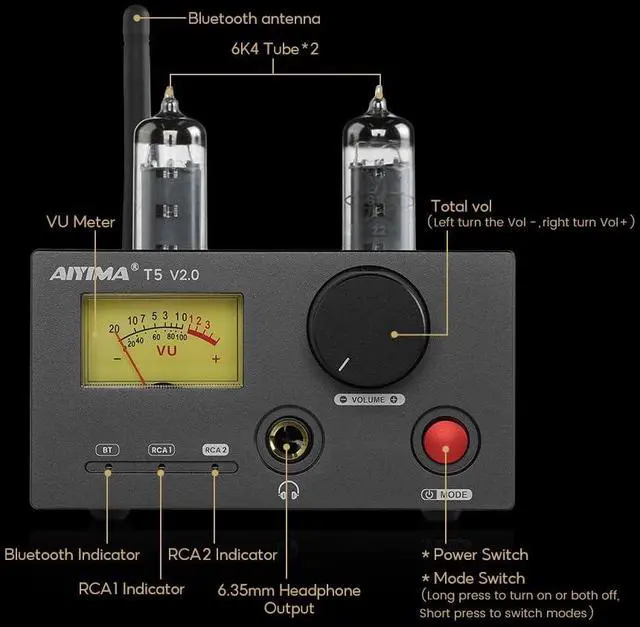

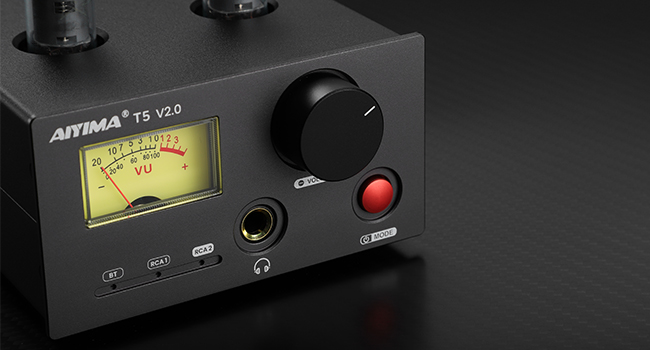

With VU meter
The pointer oscillates with the audio signal, helping you adjust the audio volume in real time to prevent overload and distortion

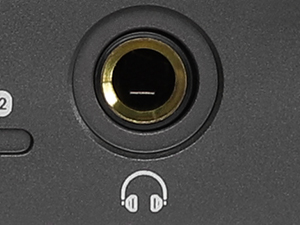

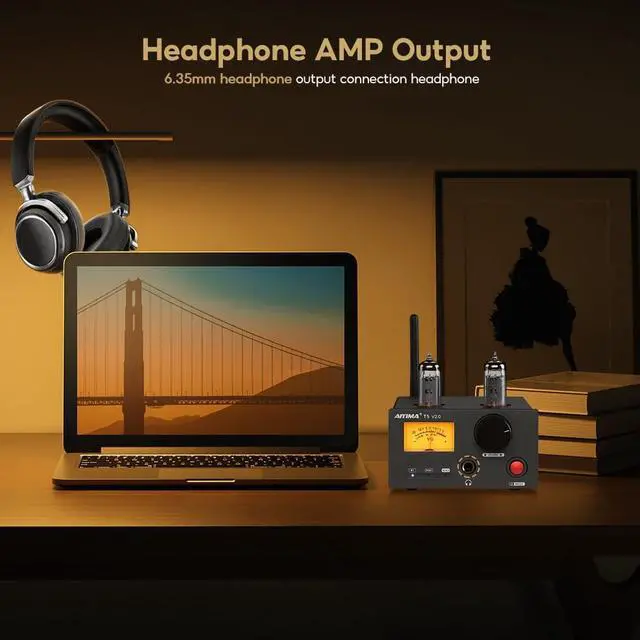

6.35mm Headphone Output
High-performance: This T5 2.0 stereo amp supports 16-300 ohms of headphones. THD: =0.1%;

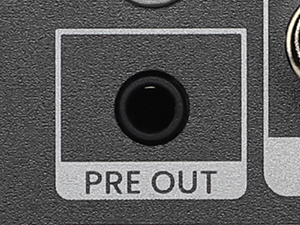

3.5mm Pre-Output
Through the 3.5 mm AUX Pre output to another amp and active speakers/subwoofer can be connected to build a 2.1 or multi-channel home theater system
Bluetooth/AUX inputs
Multi-functional audio inputs and outputs in one, with a unique design, professional audiophile components, for you to create a superior sound quality experience

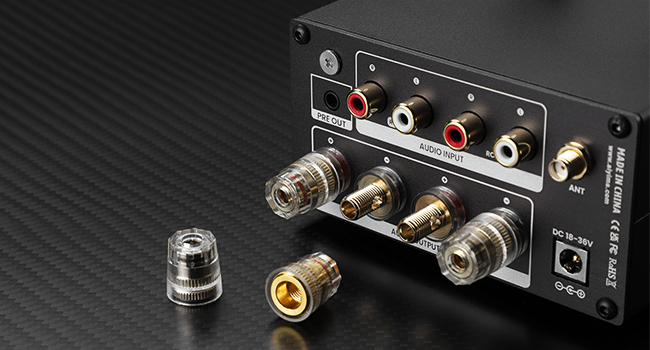

Two-way RCA outputs
Exquisite craftsmanship, attractive appearance, all-aluminum alloy structure to ensure longevity and a sense of high quality; larger gold-plated speaker terminals, easy to connect while safely passing through higher power

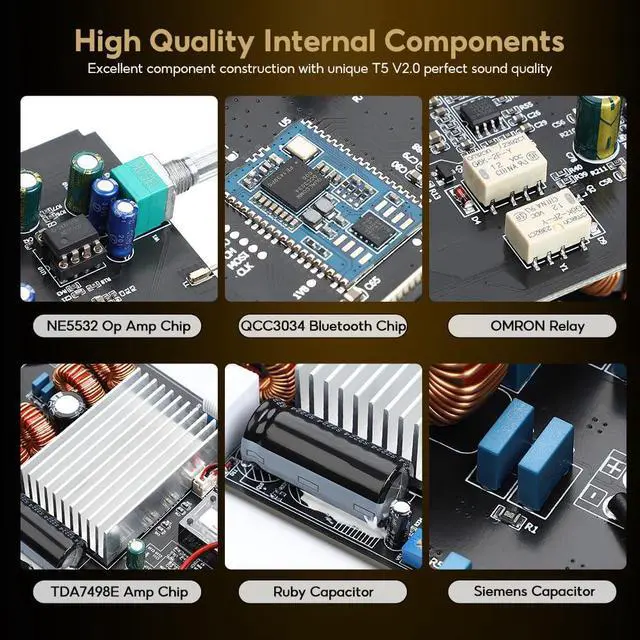

| Chipset | 6K4+TDA7498E*1+NE5532P*2+NJM4580+QCC3034+HT97220 |
|---|---|
| Op-amp chip | NE5532P *2 |
| Can Replaceable chips | OPA2604AP, OPA2134, MUSE02, OPA2107AP, etc. |
| Can Replaceable Tube | 6J1,6J2,GE5654,6J3,6J4,6J5,6?1?,6AK5 etc. |
| Bluetooth chip | QCC3034 (Bluetooth 5.1) |
| Support | SBC,AAC,APTX,APTX-HD,APTX-LL |

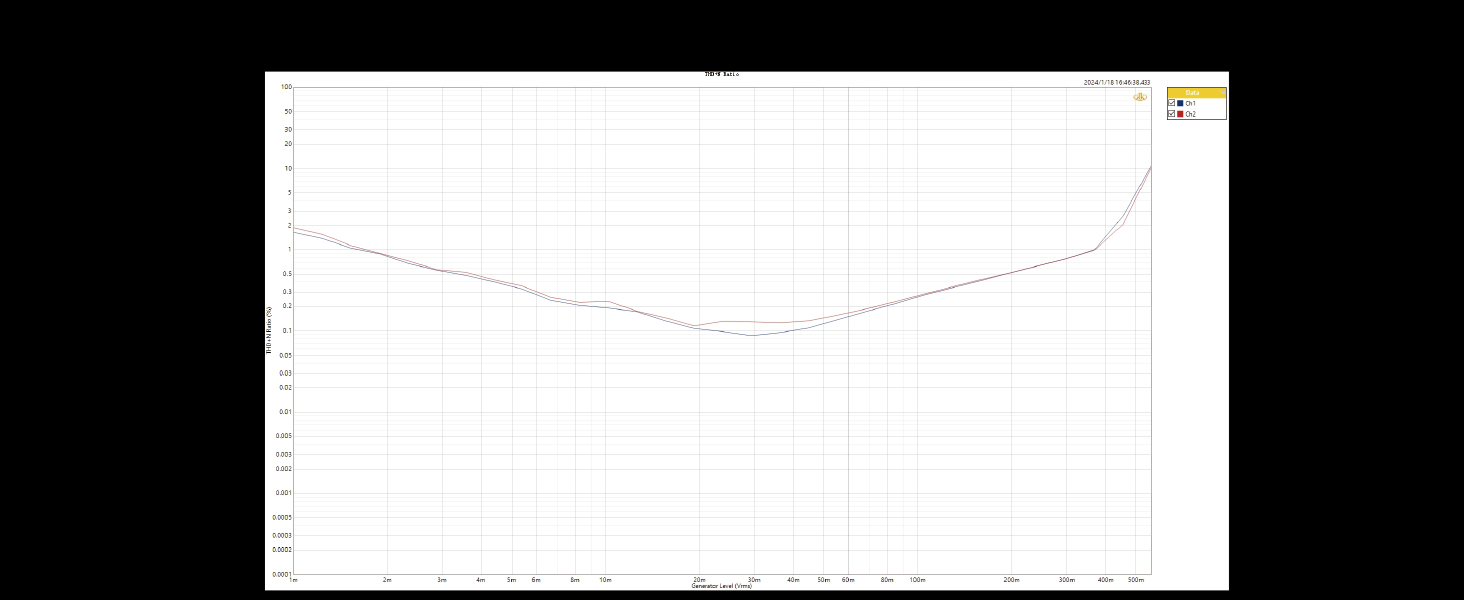

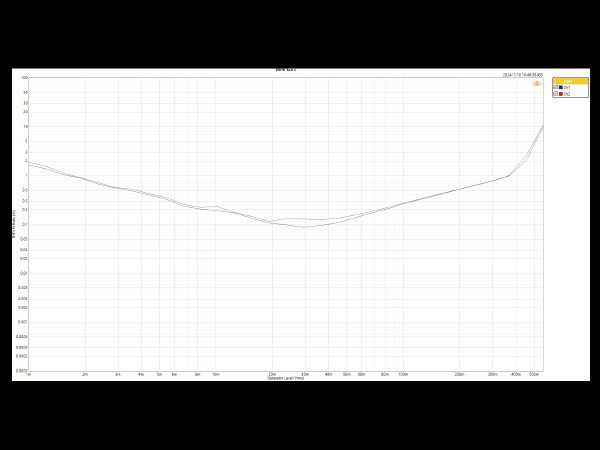

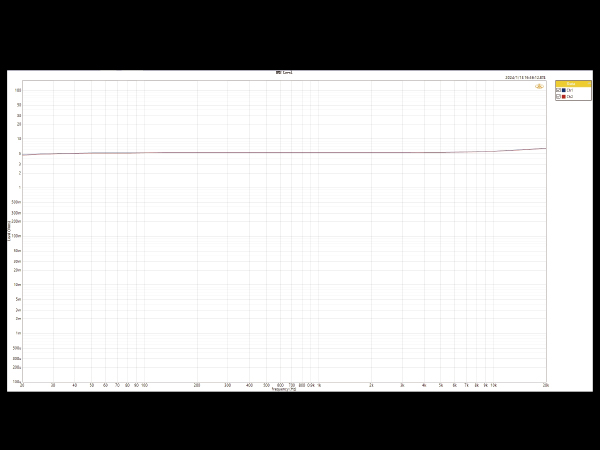

| Distortion(THD) | 0.1% |

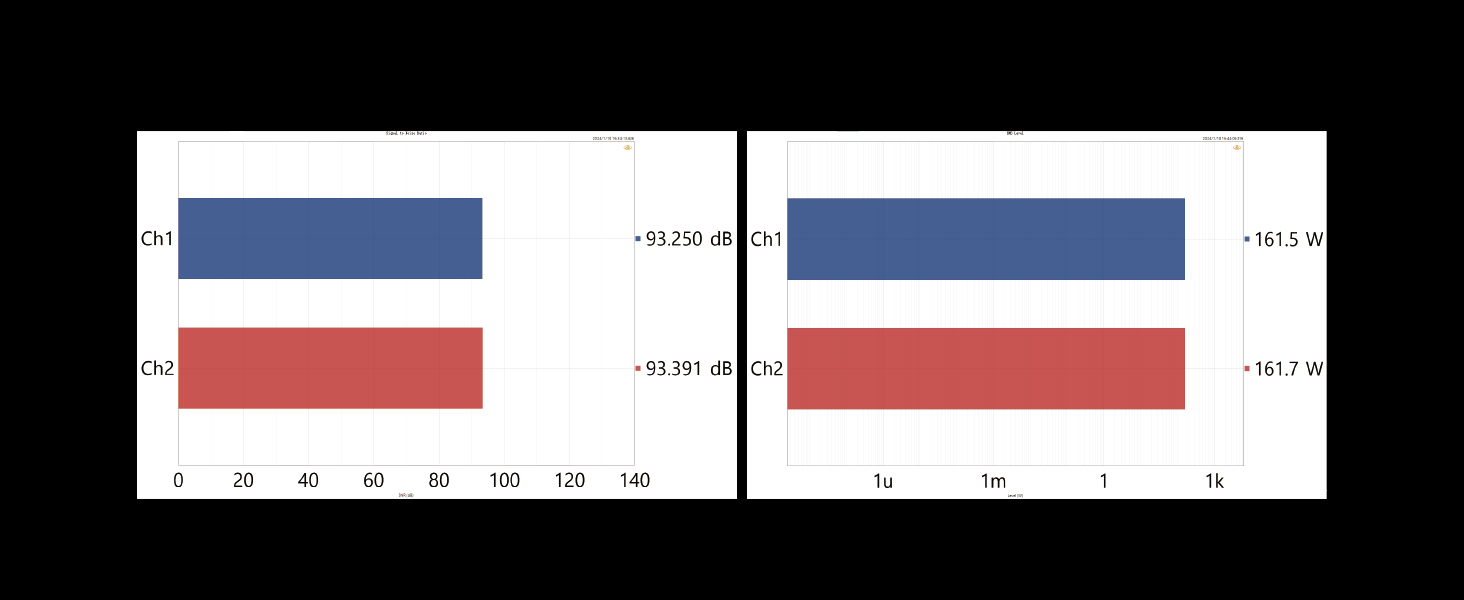

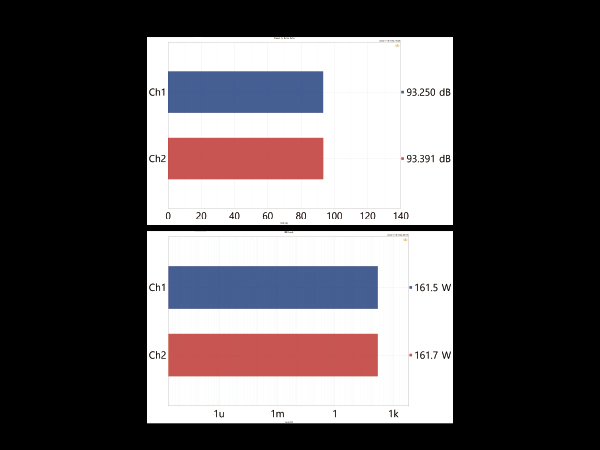

| SNR | =92db |

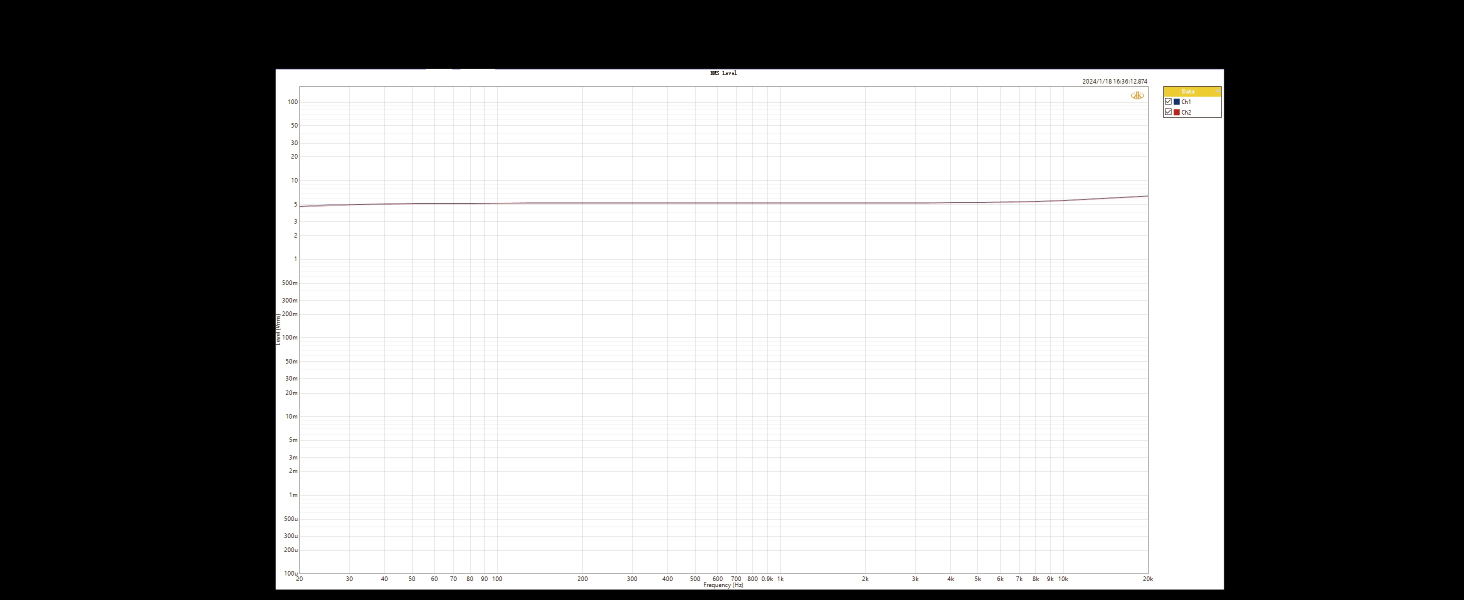

| Frequency Response | 20-20Khz (±3db) |
| Speaker Impedance | 2-8O |

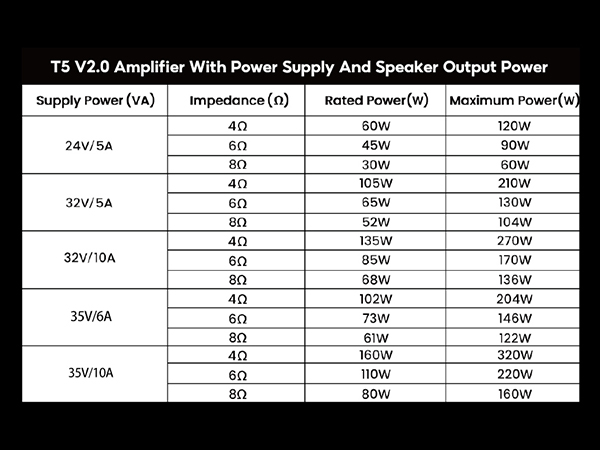

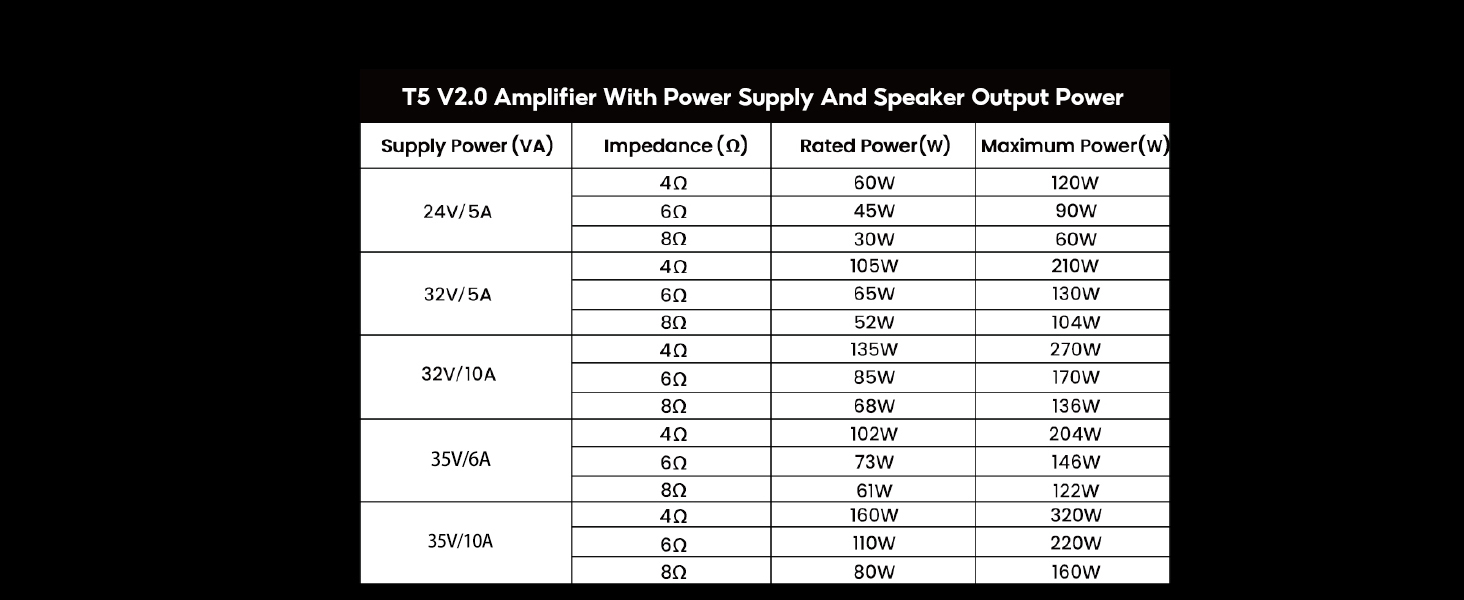

| Output power | 140W*2 4O load ; Maximum load: 160W*2 (35V) |
| Headphone output power | 125mW (32O) |
| Headphone Impedance | 16~300O |
| Input Mode | Bluetooth / RCA1 /RCA2 |
| Support device | Cell phone, tablet, computer, MP3, TV, etc. |
| Output Mode | Passive Speaker |
Comes with 6K4 tubes
Can be replaced directly by 6J1, 6J2, 6J3, 6J4, 6J5, 6K4, 6*IN, 6*4N, 6*5N, 5725, 6AK5, EF95, 6BA6, 403B etc.
With VU meter
The pointer oscillates with the audio signal, helping you adjust the audio volume in real time to prevent overload and distortion
6.35mm Headphone Output
High-performance: This T5 2.0 stereo amp supports 16-300 ohms of headphones. THD: =0.1%;
3.5mm Pre-Output
Through the 3.5 mm AUX Pre output to another amp and active speakers/subwoofer can be connected to build a 2.1 or multi-channel home theater system
