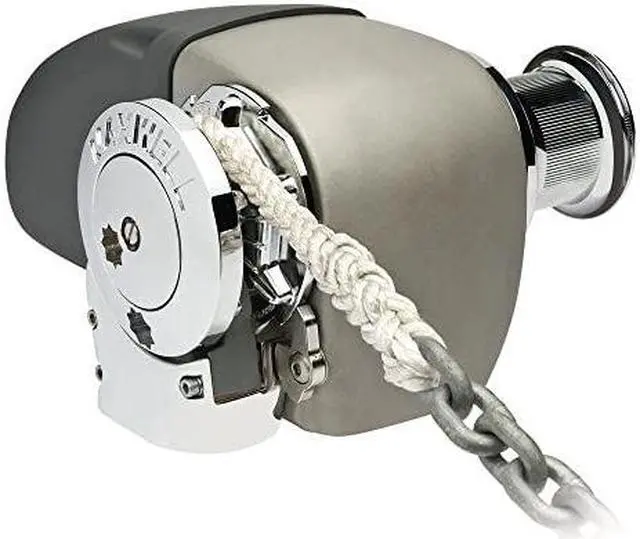

MAXWELL HRC 10-8 ROPE CHAIN WINDLASS 12V 5/16" CHAIN 5/8"

MAXWELL HRC 10-8 ROPE CHAIN WINDLASS 12V 5/16 CHAIN 5/8HRC 10-8 Horizontal Windlass 5/16 Chain, 5/8 Rope, 12V, with CapstanDesigned for boats up to 45 feet, the HRC10-8 Horizontal Series windlasses proudly follow in the highly successful footsteps of Maxwell's previous, fully automatic rope / chain anchor winches. Kit IncludesWindlassOn/Off Breaker PanelReversing SolenoidUp/down Panel SwitchClutch Release HandleFeaturesThe HRC10-8 is Maxwell's fully automatic rope/ chain or all chain horizontal windlassDesigned to effortlessly retrieve and deploy 8mm (5/16 ) chain and 16mm (5/8 ) three strand or 8-brait (plait) rope. The HRC 10-8 has a patented uniquely designed chain wheel will accommodate ANY 5/16 or 8 mm marine grade chain spliced to 5/8 rope.

The aesthetically pleasing above deck design, evolved from the philosophy of form follows function, encapsulates the motor and drive in a two part watertight case, saving space below deckCase
Material: Anodized AluminumThe two part case consists of a die cast, marine-grade hard anodised alloy front section and a rugged and easily removable composite motor cover aft section. This two piece watertight case allows for quick and easy, on-deck, routine maintenance. Simple bolt down installation ensures effortless and rapid on-deck installation and set up. The stainless steel pressure arm always exerts maximum control pressure on the rode (rope, splice or chain). The new and revolutionary patented Wave Design chainwheel is able to accommodate a wide range of chain pitch differences, within the specified chain size diameters, suitable for use with the HRC10 Series. The unique Maxwell wrap around horizontal chainwheel ensures that more than 90x of the wheel is used, allowing greatly improved rope and chain handling compared with competitor designs. High quality Stainless Steel chainwheelsThe HRC10 works just as effectively with all-chain rodes for those who desire the added security and holding power of an all-chain anchor system. The integral chain pipe and huge, through deck hawse pipe throat ensures easy entry of the rope / chain rode into and out of the anchor locker.

Cone type clutch/brake mechanism permits manual, free fall anchoring and emergency crank recovery of the rode and anchor if required. The sealed oil bath and marine-grade hard anodised, alloy gearbox provides high efficiency output drive via precision worm and wormwheel. Exclusive Maxwell 3
YEAR Limited WarrantySpecificationsMaximum PUll: 1540 lbsChain
Short Link: 5/16 or 8mmChain
Speed (Anchor Retrieval): 79 ft per MinuteRope
Speed (Anchor Retrieval): 65 ft per MinuteRope
Size (Nylon 3 strand or 8 Plait): 5/8Power
Supply (DC): 12VDC
Motor Power: 1000
WattsNet weight: 42 lbs
