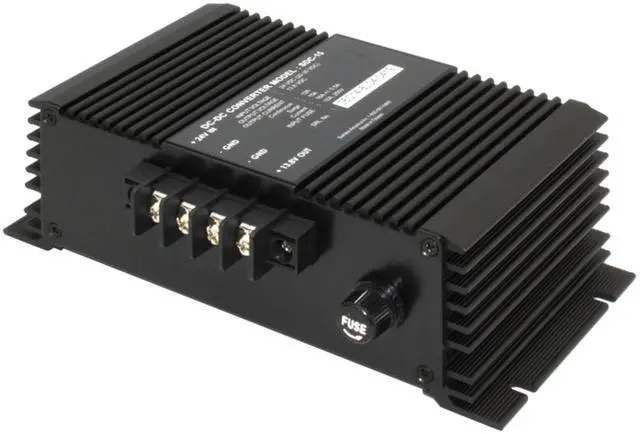

SAMLEX SDC-15 SWITCHING DC-DC CONVERTER 23-30V INPUT 13.8V

12A Non Isolated Step Down 24VDC 12VDC Converter Heavy Duty Applications This high efficiency switch mode step down DC DC converter converts an input voltage of 24 VDC nominal range 20 VDC to 35 VDC to a highly regulated output voltage of 12 VDC nominal 13 8 VDC at 12 Amps The SDC 15 DC DC converter is non isolated no galvanic isolation between input and output and meant for use in negative ground systems Features include overvoltage short circuit protection temperature compensated current limit output side overvoltage protection input side overvoltage transient protection and input side reverse polarity protection The SDC 15 DC DC converter is designed for heavy duty applications Features Advanced switchmode design Mount in almost any location Compact and light weight Reverse polarity protection High efficiency Cycle by cycle current limiting circuit Overvoltage protection Short circuit protection

Specifications

Input 20 35 VDC Output 13 8 VDC Amps 12 Amps Weight 2 lbs Weight 0 9 kg Dimensions 7 75 x 5 x 2 5 in Dimensions 19 7 x 12 7 x 6 4 cm Warranty 2 Year Limited Applications Earth moving equipment Heavy trucks Buses Marine vehicles CB radios 12 Volt lighting systems AM FM sound systems WARNING This product can expose you to chemicals which are known to the State of California to cause cancer birth defects or other reproductive harm For more information go to P65Warnings ca gov
