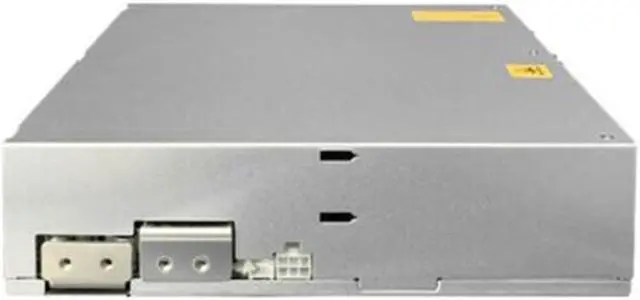

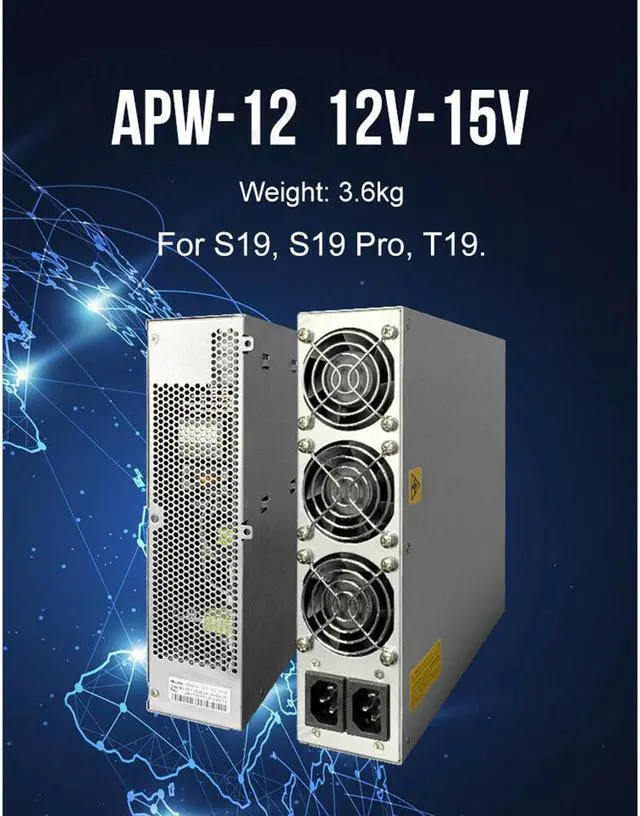

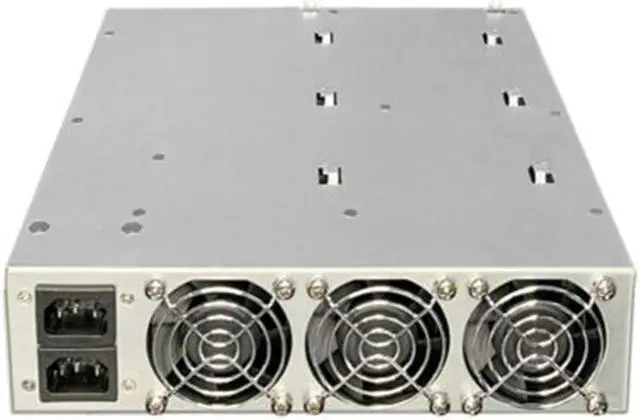

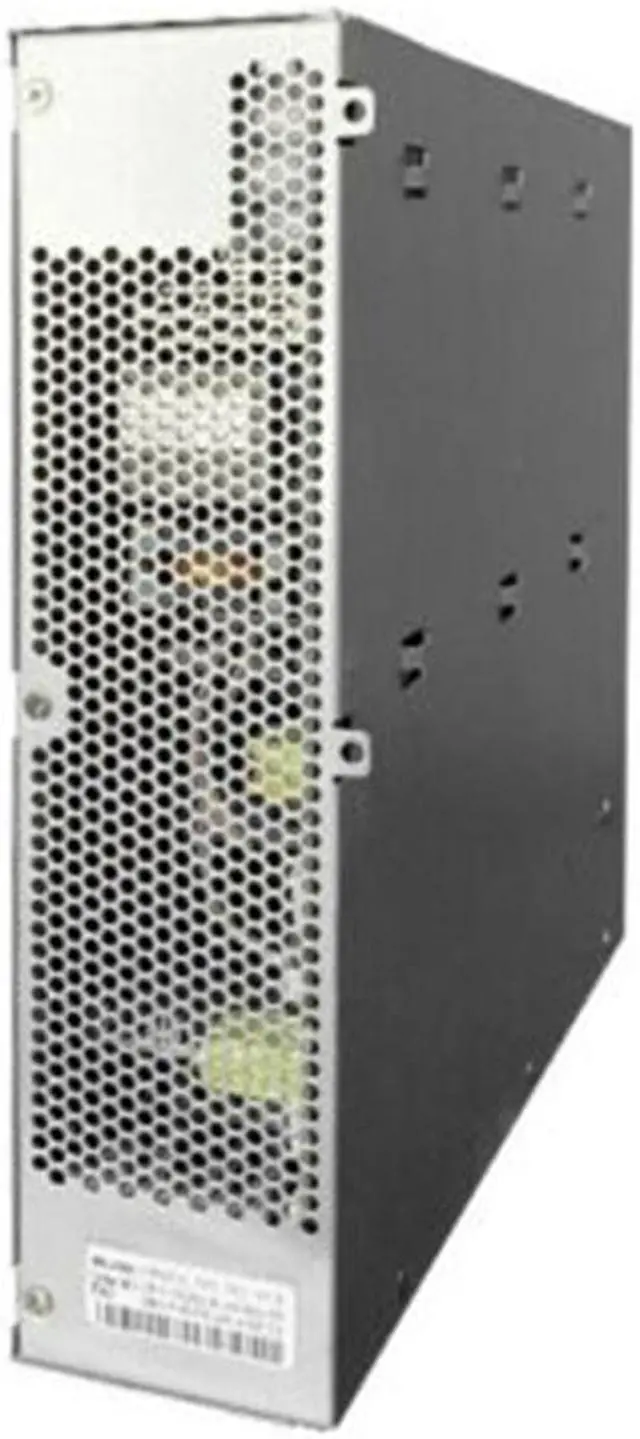

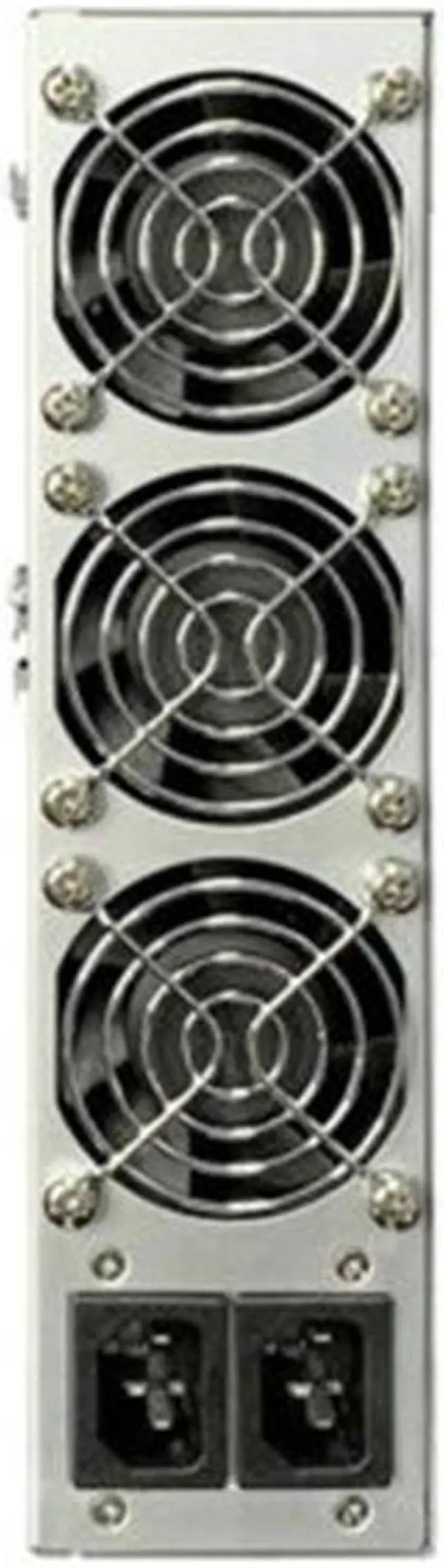

Antminer USA STOCK ORIGINAL APW12 Power Supply for S19, S19 Pro, S19J S19a T19 Bitmain

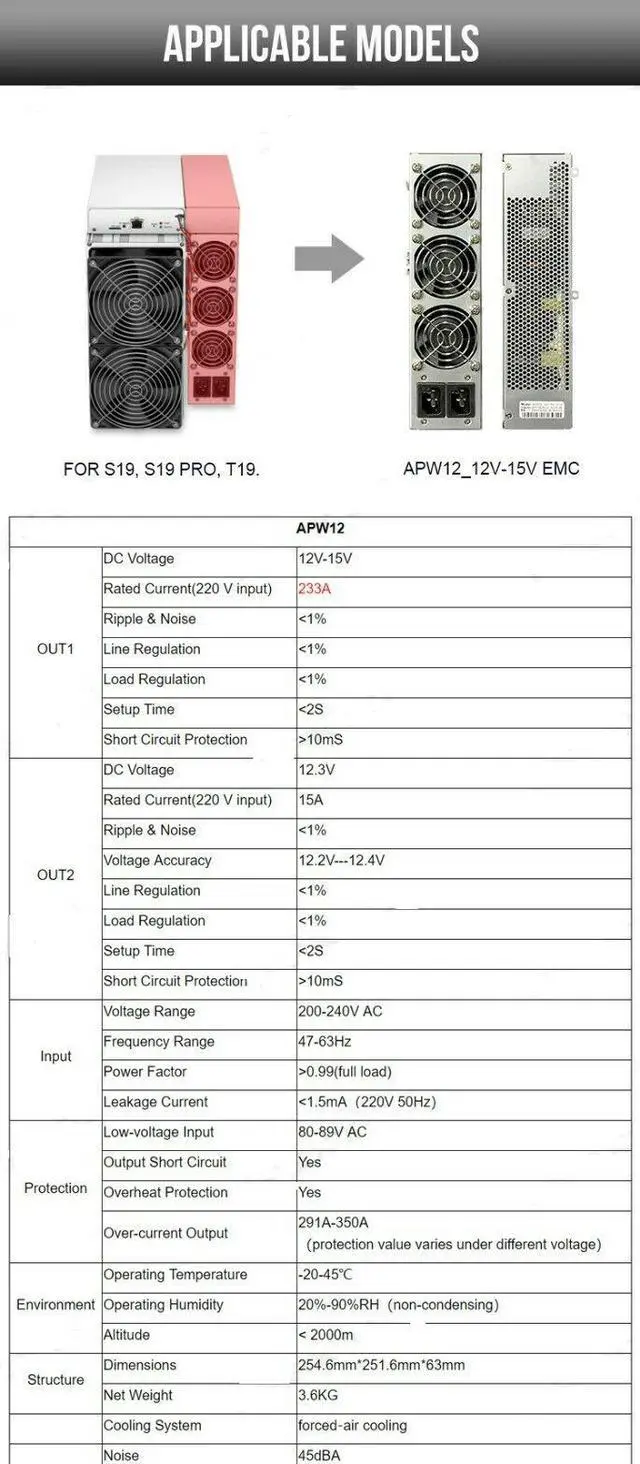

Specification OUT1 DC Voltage 12V-15V OUT2 DC Voltage 12.3V Rated Current(220 V input) 233A Rated Current 15A Ripple & Noise <1%

Ripple & Noise

<1%
Source Regulation

<1%

Voltage Accuracy

12.2V-12.4V
Load Regulation

<1%

Source Regulation

<1%
Setup Time

<2S

Load Regulation

<1%
Power off Protection Trip Time

> 10mS Setup, Rise Time <2S


Power off Protection Trip Time

> 10mS Input Voltage Range 200-240V AC Protection Low-voltage Input 80-89V AC Frequency Range 47-63Hz Output Short Circuit Yes Power Factor > 0.99 (full load) Over-current Output 291-350A Leakage Current < 1.5 mA(220V 50Hz) Overheat Protection Yes Environment Operating Temperature -20-45? Structure Dimensions 254.6 mm* 251.6 mm*63mm Operating Humidity 20%-90%RH Weight 3.6 kg Altitude < 2000m Noise 45dBA Quick
Details Certification: CE
Brand Name: Antminer
APW12 Algorithm: NO
Power Consumption: 3600W
Hashrate: NO
Encryption: NO Video
Memory Capacity: NO
Chipset Manufacturer: Antminer
Type: Antminer
APW12 Products Status: NEW
Rating Power: < 150W
Output Interface Type: Other Place of
Origin: Guangdong, China
Material: Metal
Style: Other
Memory Interface: Other
Memory Clock (Mhz): Other
Interface Type: usb Video
Memory Type: DDR
Manufacturer: Bitmain
Product name: After-sales
Service: Repair APW12
DC Voltage: 12V-15V
Rated Current (220 V input): 233A
Working temperature: -20-45?
Noise: 45dBA
Altitude: <2000m
Weight: 3.6 kg
