Intsupermai GTR-168 Generator Controller with Auto Start and Stop Function
- The module GTR 168 is a low cost Generator controller equipped with Auto Start/Stop functions, protections, alarm and annunciation etc.
- Monitoring and protections include: Running, Over Speed, High Water Temperature, Low Oil Pressure, Over Crank, Emergency Stop, and Low Battery.
- All outputs function executed by a set of traditional relays which make it possible to support heavy power handling capability.
- It designed to control engine by a key switch. User only needs to switch the key to the Manual position then the system will carry out whole functions according your settings.

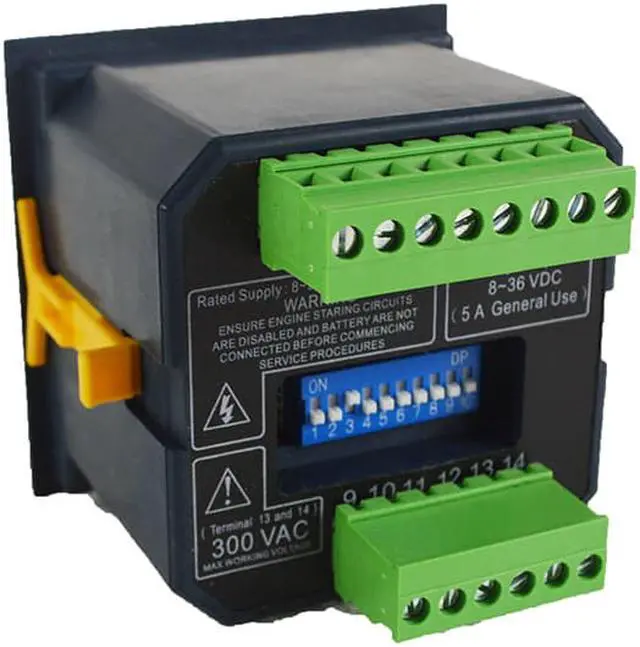

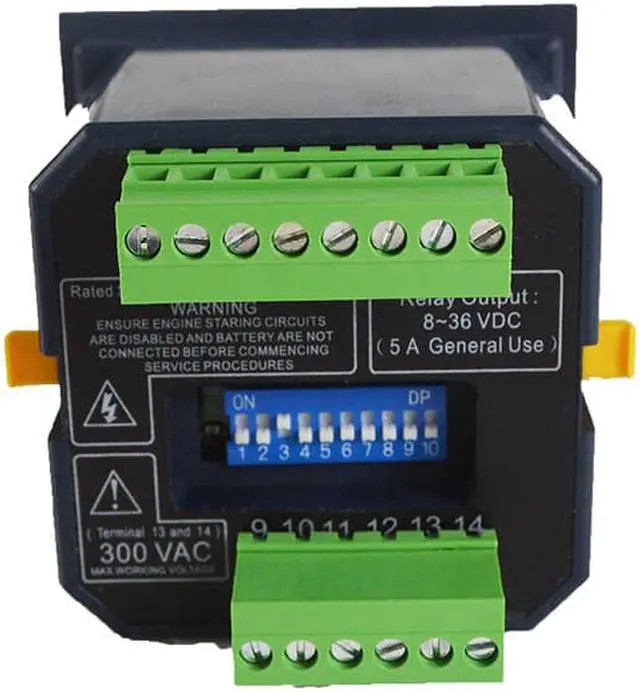

- The GTR-168 applied with a high security continental terminal connector that provides easy plug-in and removal.
+
+
Overview
Specs
Reviews
Product Feature

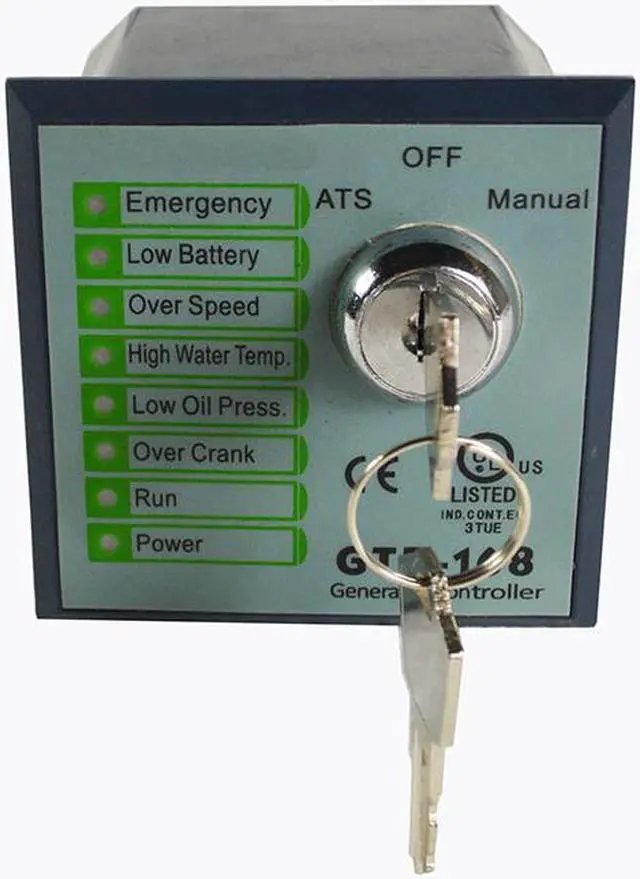

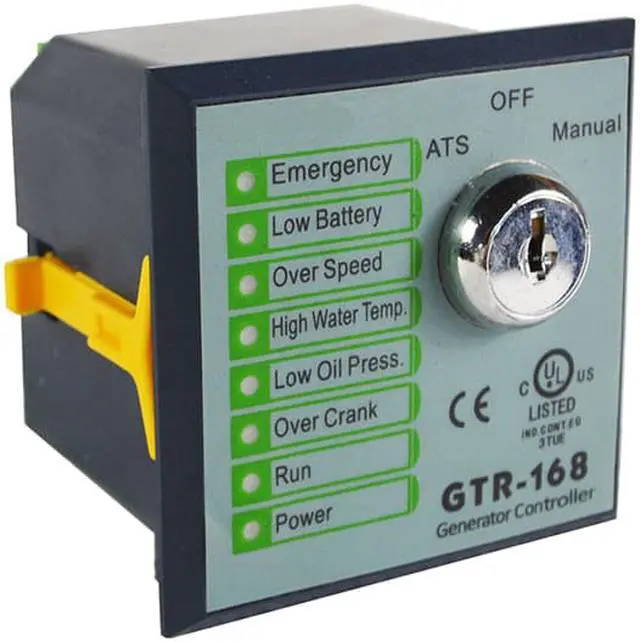

LED
1. Emergency/ Auxiliary Shutdown
2. Low Battery Warning
3. Over Speed Shutdown
4. High Water Temperature Shutdown
5. Low Oil Pressure Shutdown
6. Over Crank
7. Run
8. Power
Key Switch
OFF: Stop running engine / Reset Alarm.
ATS: Auto Start function by detected ATS Terminal l2
MANUAL: Manual start engine
Protections and parameters
Auxiliary shutdown protection: 1 sec., N.C
Low battery warning: 5sec., 10.5 / 21 VDC
Over speed protection: 2sec., 55/66 Hz
High water temp. protection: 2 sec., N.O
Low oil press. Protection: 2 sec., N.C/N.O
Over crank: 3 attempts
Cranking speed up limited: 0.5sec., 16 Hz
Protection hold-off timer: 5 sec.
Product Specifications:
Model: GTR-168
DC Supply: DC 8-36V
Power Consumption: MAX 5 W
Measuring Frequency: 0-80 Hz (AC Volt: 25 V - 300 V)
Relay Output :
Start Output: 5 A
Valve Output: 5 A
Idle/Pre-heat Output: 5 A
Alarm Output: 5 A
Stop Output: 5 A
Dimension (W*H*D): 72mm x 72mm x 58mm
Panel Cut-Out (W*H): 68mm x 68mm
Ambient Temperature Range: -30°C - 70°C
Weight: 192 g (0.42 lb)
LED
1. Emergency/ Auxiliary Shutdown
2. Low Battery Warning
3. Over Speed Shutdown
4. High Water Temperature Shutdown
5. Low Oil Pressure Shutdown
6. Over Crank
7. Run
8. Power
Key Switch
OFF: Stop running engine / Reset Alarm.
ATS: Auto Start function by detected ATS Terminal l2
MANUAL: Manual start engine
Protections and parameters
Auxiliary shutdown protection: 1 sec., N.C
Low battery warning: 5sec., 10.5 / 21 VDC
Over speed protection: 2sec., 55/66 Hz
High water temp. protection: 2 sec., N.O
Low oil press. Protection: 2 sec., N.C/N.O
Over crank: 3 attempts
Cranking speed up limited: 0.5sec., 16 Hz
Protection hold-off timer: 5 sec.
Product Specifications:
Model: GTR-168
DC Supply: DC 8-36V
Power Consumption: MAX 5 W
Measuring Frequency: 0-80 Hz (AC Volt: 25 V - 300 V)
Relay Output :
Start Output: 5 A
Valve Output: 5 A
Idle/Pre-heat Output: 5 A
Alarm Output: 5 A
Stop Output: 5 A
Dimension (W*H*D): 72mm x 72mm x 58mm
Panel Cut-Out (W*H): 68mm x 68mm
Ambient Temperature Range: -30°C - 70°C
Weight: 192 g (0.42 lb)
